21852 - Toro 52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 411900000 - 999999999) Housing Assembly Parts Diagram

52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

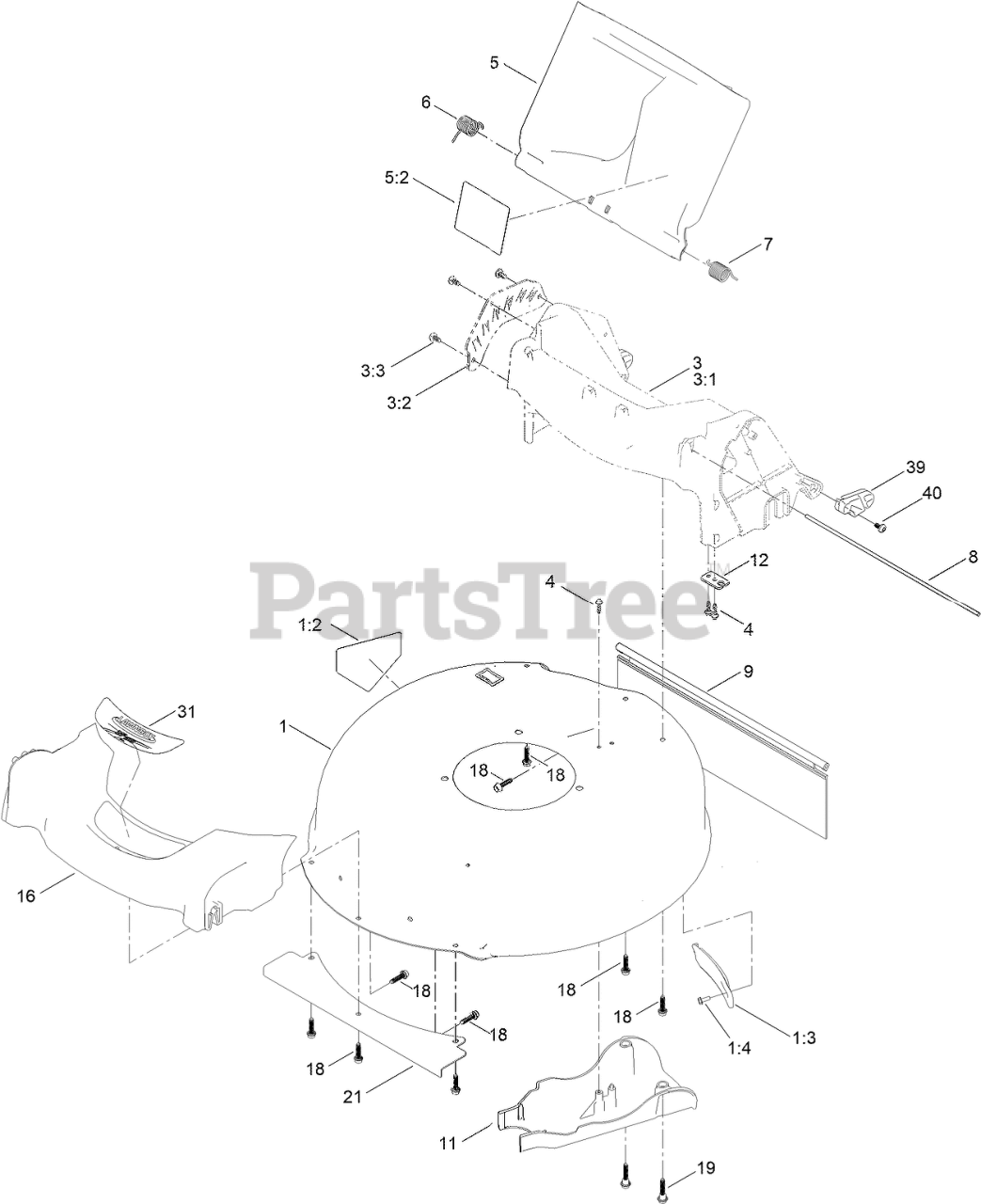

Housing Assembly Parts Diagram

  • Title

1

Toro 133-1939

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 132-4518

COVER-BELT

$2.99

$

Usually ships in 3-6 days

0

1:4

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

3

Toro 139-1805

CHUTE ASM

$38.99

$

In Stock, Qty 14

0

3:1

Toro 140-4160

CHUTE-SP/AWD, 21 IN

$27.99

$

Usually ships in 3-6 days

0

3:2

Toro 133-1905-03

PLATE-HOC

$13.99

$

Usually ships in 3-6 days

0

3:3

Toro 139-1679

SCREW-PLASTIC,PH

$1.49

$

In Stock, Qty 5

0

4

Toro 139-1690

SCREW-PLASTIC, HWH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 140-3830

REAR DEFLECTOR ASM (60V)

$22.99

$

Usually ships in 3-6 days

0

5:2

Toro 140-3811

DECAL-WPM WARNING, 60V

$3.49

$

Usually ships in 3-6 days

0

6

Toro 127-6807

SPRING-TORSION

$3.49

$

In Stock, only 2 left!

0

7

Toro 138-5378

SPRING-TORSION

$1.99

$

Usually ships in 3-6 days

0

8

Toro 127-0698

ROD-DOOR

$2.99

$

In Stock, only 1 left!

0

9

Toro 127-0724

SHIELD-TRAILING

$13.99

$

Usually ships in 3-6 days

0

11

Toro 127-0723

COVER-BELT

$11.99

$

In Stock, only 1 left!

0

12

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

16

Toro 127-0677

BUMPER

$22.99

$

In Stock, only 1 left!

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

19

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 19

0

21

Toro 131-0820-03

SHIELD-FRONT

$

$

Currently unavailable

31

Toro 144-6375

DECAL-DECK

$12.99

$

Usually ships in 3-6 days

0

39

Toro 140-4159

PAD-STOW, SMART

$2.99

$

Usually ships in 3-6 days

0

40

Toro 139-1679

SCREW-PLASTIC,PH

$1.49

$

In Stock, Qty 5

0
