21852 T - Toro 52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

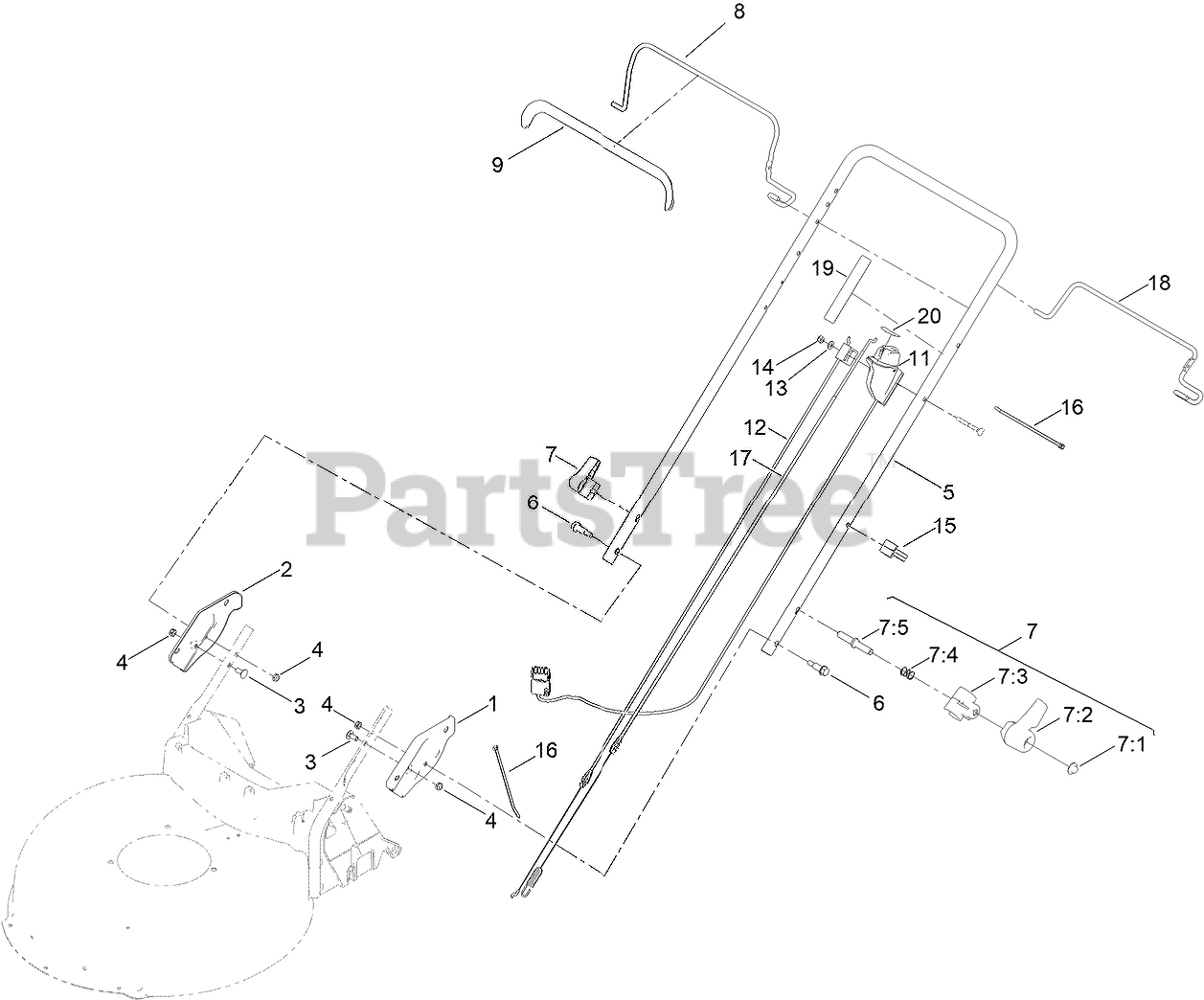

Handle Assembly Parts Diagram

  • Title

1

Toro 140-3973-05

PLATE-HANDLE, LH

$17.99

$

Usually ships in 3-6 days

0

2

Toro 140-3974-05

PLATE-HANDLE, RH

$17.99

$

Usually ships in 3-6 days

0

3

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

4

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

5

Toro 131-4569-05

HANDLE

$51.99

$

In Stock, only 1 left!

0

6

Toro 140-3759

BOLT-SHOULDER, HHF

$1.49

$

In Stock, Qty 5

0

7

Toro 138-3249

QUICK RELEASE ASM

$11.99

$

In Stock, only 2 left!

0

7:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

7:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

7:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

7:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

7:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

8

Toro 138-3269-03

BAIL-BRAKE

$14.99

$

In Stock, only 2 left!

0

9

Toro 127-6847

COVER-BAIL

$4.49

$

In Stock, Qty 6

0

11

Toro 140-3800

SWITCH STARTER ASM

$41.99

$

Usually ships in 3-6 days

0

12

Toro 137-9169

CABLE-BRAKE, HP

$28.99

$

Usually ships in 3-6 days

0

13

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

15

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

16

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

17

Toro 127-0733

CABLE-TRACTION

$18.99

$

In Stock, only 1 left!

0

18

Toro 131-0835-03

BAIL-TRACTION

$15.99

$

In Stock, only 3 left!

0

19

Toro 144-3175

DECAL-CONTROLS (60V START)

$6.99

$

Usually ships in 3-6 days

0

20

Toro 134-4691

DECAL CONTROL SPEED

$

$

Currently unavailable
