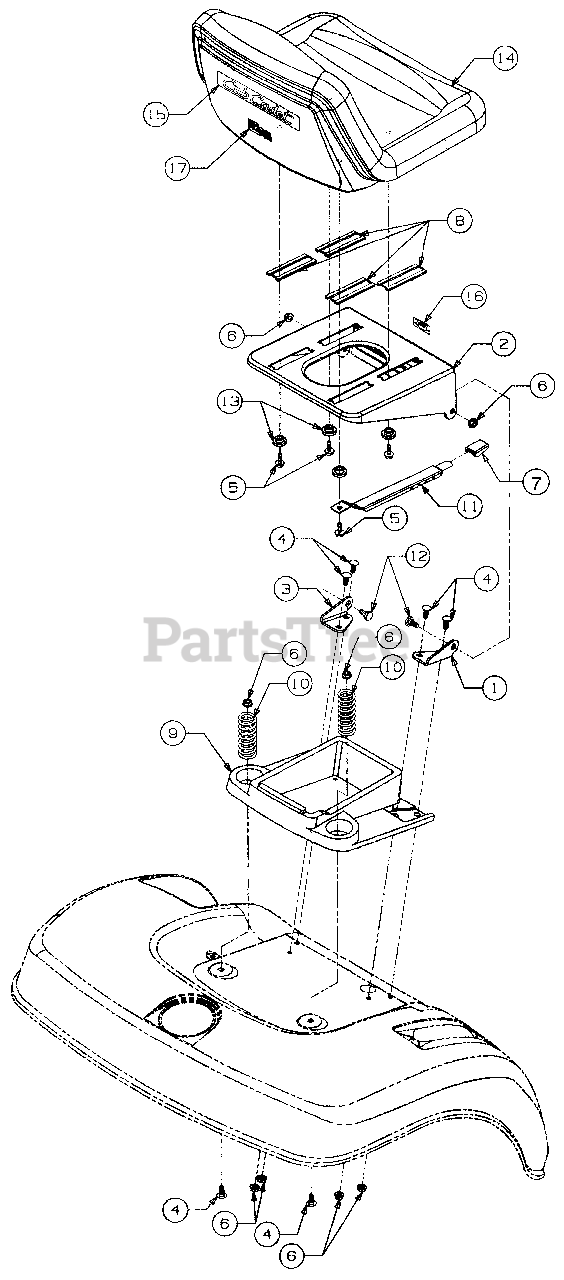

2185 (13B-288-100) - Cub Cadet Garden Tractor (SN: 1A031G & After) Seat And Support Parts Diagram

Garden Tractor

Seat And Support Parts Diagram

  • Title
1

Cub Cadet 703-2394

Bracket, RH Seat Pivot

Variations

Cub Cadet 703-2394-0498

PIVOT BRACKET (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2394-0716

BRACKET-RH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 703-2395

Seat, Base
(Superseded to 703-2395A)

Variations

Cub Cadet 703-2395-0498

USE 703-2395B-0716 BASE-SEAT - OLD CUB YELLOW (0498)

$120.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2395-0716

USE 703-2395B-0716 BASE-SEAT - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2477

Bracket, LH Seat Pivot

Variations

Cub Cadet 703-2477-0498

USE 703-2477-0716 BRACKET-LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2477-0716

BRACKET-LH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hx Wsh Hd Tap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 720-0190

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

9

Cub Cadet 731-3162

Tray, Tool
(Superseded to 931-3162)

$

$

Not available

10

Cub Cadet 732-3080

Spring, Comp, 1.9 OD x 2.4
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

11

Cub Cadet 732-3098

Adjuster, Seat

$

$

Not available

12

Cub Cadet 738-0140

Bolt, Shoulder

$5.99

$

In Stock, Qty 15

0

13

Cub Cadet 738-0372

Spacer, Shoulder
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 19

0

14

Cub Cadet 757-3004

Seat, High Back
(Superseded to 759-04299)

$

$

Not available

15

Cub Cadet 777D04541

Graphic, Seat Back

$

$

Not available

16

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

17

Cub Cadet 777D01782

Graphic, Made in USA

$

$

Not available
