2185 (13A-288-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Cylinder Head, Valves And Breather Parts Diagram

Garden Tractor

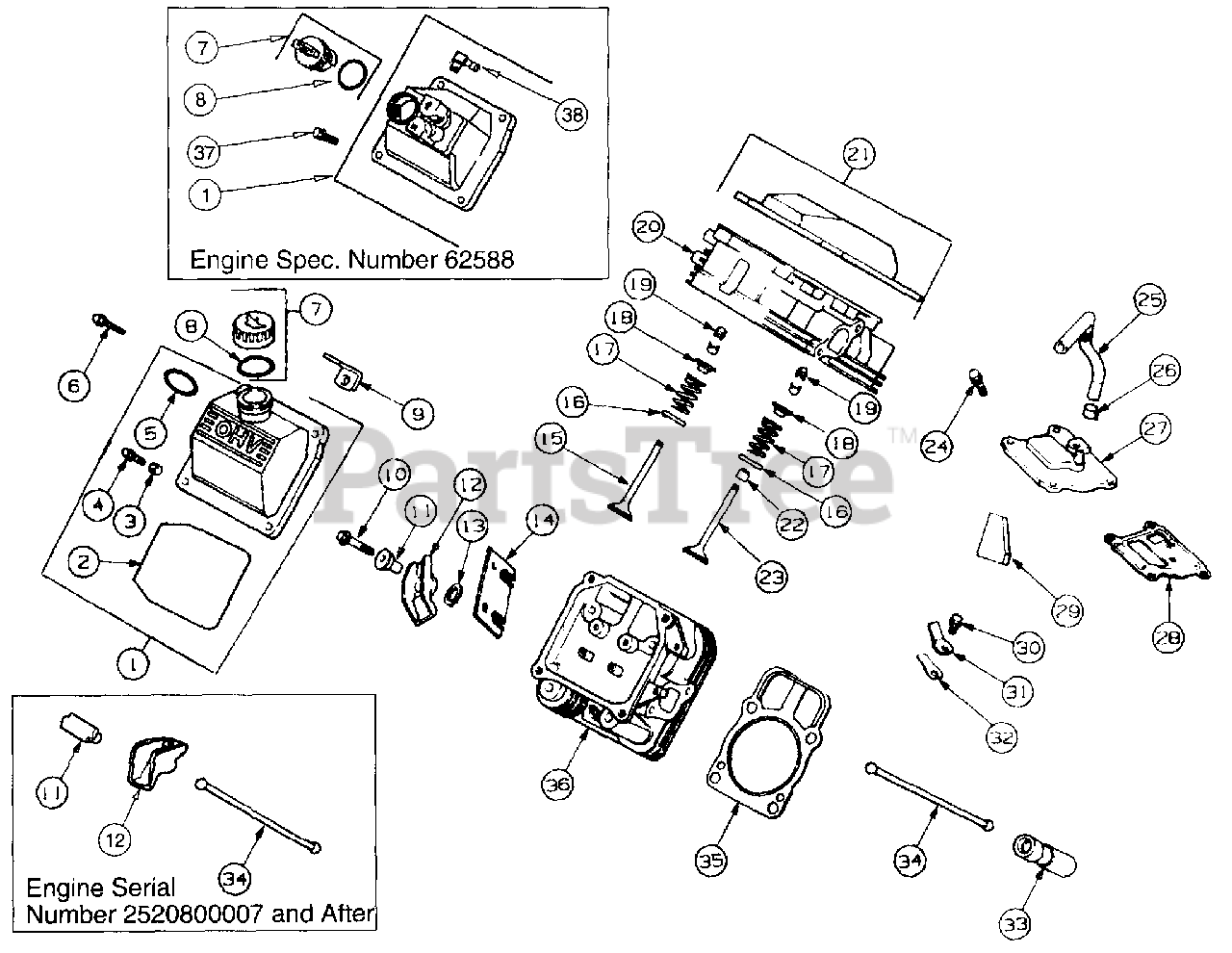

Cylinder Head, Valves And Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-75

Kit, Valve Cvr
(Superseded to KH-24-755-140-S)

Note: (Eng Spec No 62509)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-393-14

Kit, Valve Cvr
(Superseded to KH-24-559-10-S)

Note: (Eng Spec No 62588)

$168.99

$

In Stock, Qty 13

0

2

Cub Cadet KH-24-153-16

O-Ring, Cover
(Superseded to KH-24-153-23-S)

$18.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-112-08

Spacer

$

$

Not available

4

Cub Cadet KH-M-0651030

Screw, M6 x 1.0 x 30

$

$

Not available

5

Cub Cadet KH-24-153-09

O-Ring, Filler Neck
(Superseded to KH-24-153-32-S)

$2.49

$

In Stock, only 4 left!

0

6

Cub Cadet KH-12-086-16

Screw, M10 x 1.5 x 91
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-755-46

Kit, Oil Cap

Note: (Eng Spec No 62509)

$

$

Not available

Cub Cadet KH-24-227-02

Kit, Oil Cap
(Superseded to KH-24-227-02-S)

Note: (Eng Spec No 62588)

$7.99

$

In Stock, Qty 6

0

8

Cub Cadet KH-12-153-03

O-Ring
(Superseded to KH-25-153-02-S)

Note: (Eng Spec No 62509)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-153-09

O-Ring

Note: (Eng Spec No 62588)

$

$

Currently unavailable

9

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

10

Cub Cadet KH-M-0640034

Screw, M6 x 1.0 x 34

$

$

Not available

11

Cub Cadet KH-24-194-02

Pivot, Rocker Arm
(Superseded to KH-24-755-66)

Note: (Engines built before S/N 2520800007)

$

$

Not available

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

Note: (Engines built after S/N 2520800007)

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-24-186-03

Arm, Rocker

Note: (Engines built before S/N 2520800007)

$

$

Currently unavailable

Cub Cadet KH-25-186-01

Arm, Rocker

Note: (Engines built after S/N 2520800007)

$

$

Not available

13

Cub Cadet KH-SM-631005

Washer, Flat
(Superseded to KH-M-631005)

Note: (Used only with KH-24-194-02 Rocker Arm Pivot)

$

$

Not available

14

Cub Cadet KH-24-146-09

Plate, Guide
(Superseded to KH-24-755-66)

Note: (Used only with KH-24-194-02 Rocker Arm Pivot)

$

$

Not available

15

Cub Cadet KH-24-016-01

Valve, Exhaust, Std
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-016-02

Valve Exhaust .25mm

$

$

Not available

16

Cub Cadet KH-235011

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

18

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

19

Cub Cadet KH-12-755-03

Lock, Retainer

$5.99

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-318-09

Head Assy, Cylinder #1
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-24-755-74

Kit, Valve Covr
(Superseded to KH-24-755-141-S)

Note: (Incl. Ref No 2-4)

$35.99

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-24-017-01

Valve, Intake, Std

$

$

Not available

Cub Cadet KH-24-017-02

Valve, Intake, .25mm

$

$

Not available

24

Cub Cadet KH-M-0645020

Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

25

Cub Cadet KH-24-326-06

Hose, Breather
(Superseded to KH-24-326-89-S)

$9.99

$

In Stock, Qty 6

0

26

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-033-01

Cover, Breather

$

$

Not available

28

Cub Cadet KH-24-041-23

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

29

Cub Cadet KH-24-050-01

Filter, Breather
(Superseded to KH-24-050-11-S)

$2.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-M-0545010

Screw, Reed Retainer M5 x 0.8 x 10

$

$

Not available

31

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

34

Cub Cadet KH-24-411-04

Rod, Push
(Superseded to KH-24-755-66)

Note: (Engines built before S/N 2520800007)

$

$

Not available

Cub Cadet KH-24-411-05

Rod, Push

Note: (Engines built before S/N 2520800007)

$

$

Not available

35

Cub Cadet KH-24-041-08

Gasket, Cylinder Head
(Superseded to KH-24-841-01-S)

$45.99

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-24-318-10

Head Assy, Cylinder #2
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

37

Cub Cadet KH-24-086-34

Screw, Shlder

Note: (Eng Spec No 62588)

$

$

Not available

38

Cub Cadet KH-25-155-02

Connector 90°.

$

$

Not available
