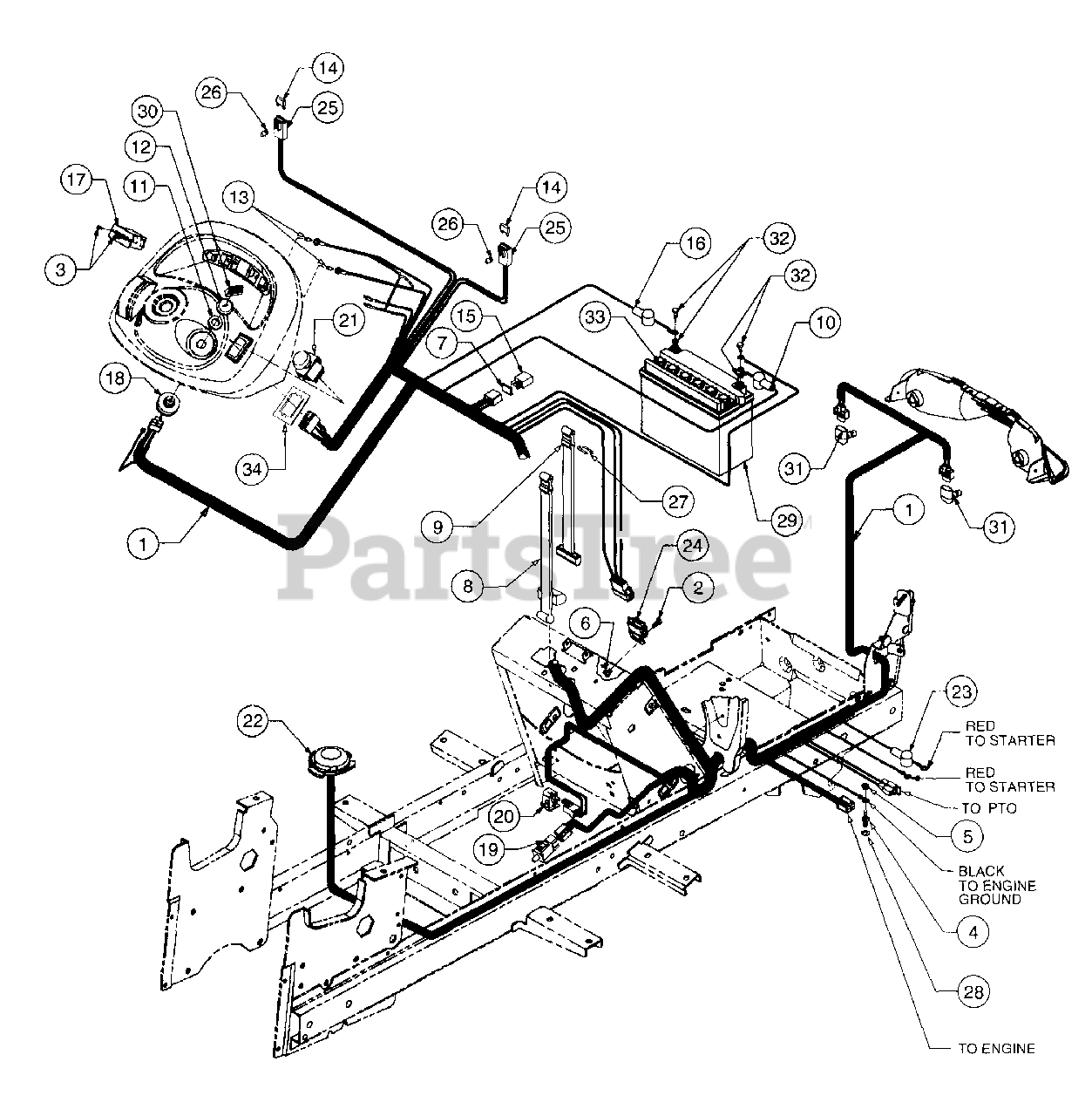

2185 (136-288-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Battery, Electrical Components And Switches Parts Diagram

Garden Tractor

Battery, Electrical Components And Switches Parts Diagram

  • Title

1

Cub Cadet 629-3020

Wire Harness, Main
(Superseded to 929-3020)

Note: S/N G319 and prior

$

$

Not available

Cub Cadet 629-3068

Wire Harness, Main
(Superseded to 929-3068A)

Note: S/N H019 and after

$291.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 726-3055

Clip, Cable

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .625 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 x .62

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1094

Stud, Ground

$

$

Not available

5

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

8

Cub Cadet 723-0445

Strap, Battery Retainer
(Superseded to 723-0445A)

Note: (S/N 359001 & Above - used w/725-1707B battery;

$32.99

$

In Stock, Qty 5

0

9

Cub Cadet 723-3064

Strap, Battery Retainer

Note: (S/N 359000 & Below - used w/753-0608 battery;

$29.99

$

In Stock, only 4 left!

0

10

Cub Cadet 725-0340

Cover, Terminal Black

$

$

Not available

11

Cub Cadet 725-1346

Nut, Ignition Switch
(Superseded to 925-1346)

$

$

Not available

12

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 3 left!

0

14

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

15

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

16

Cub Cadet 725-3007A

Cover, Terminal Red

$

$

Not available

17

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

18

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, only 3 left!

0

19

Cub Cadet 725-3164A

Switch, Interlock (Brake)
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

20

Cub Cadet 725-3166

Switch, Snap Mount - Normally Closed
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 12

0

22

Cub Cadet 725-3234

Switch, Seat
(Superseded to 925-3234)

$36.99

$

In Stock, Qty 7

0

23

Cub Cadet 725-3237

Cover, Terminal Red

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-3251

Module, Voltage Sensor
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

25

Cub Cadet 729-0207

Holder, Fuse

Note: (S/N 359000 and Below)

$

$

Not available

Cub Cadet 729-0357

Holder, Fuse w/Mounting Clip

Note: (S/N 359001 and Above)

$

$

Not available

26

Cub Cadet 729-0209

Clip, Fuse Holder Mounting

Note: (S/N 359000 and Below)

$

$

Not available

27

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 753-0608

Battery

Note: (S/N 359,000 & Below)

$

$

Not available

Cub Cadet 725-1707B

Battery
(Superseded to 925-1707D)

Note: (S/N 359,001 thru 389,000 & I016G thru K037G)

$

$

Not available

Cub Cadet 725-1707C

Battery
(Superseded to 925-1707D)

Note: (S/N K037G thru I018G)

$

$

Not available

Cub Cadet 725-1706

Battery
(Superseded to 925-1707D)

Note: (S/N I018G to Present)

$

$

Not available

30

Cub Cadet 759-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)

$9.49

$

In Stock, only 1 left!

0

31

Cub Cadet 759-3693

Bulb, Head Lamp
(Superseded to 925-3161A)

$52.99

$

In Stock, only 2 left!

0

32

Cub Cadet 759-3749

Battery Cable Hardware

Note: (Set of 2; used with 753-0608 Battery)

$

$

Not available

Cub Cadet 710-3015

Screw

Note: (Used with 725-1707B/C)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0271

Sems Nut

Note: (Used with 725-1707B/C)

$4.49

$

In Stock, Qty 10

0

33

Cub Cadet 759-3750

Cap, Battery

Note: (Used w/753-0608 Batt.)

$

$

Not available

Cub Cadet 725-0691

Cap, Battery

Note: (Used w/725-1707B Batt.)

$

$

Not available

34

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available
