2185 (136-288-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Air Intake And Filtration Parts Diagram

Garden Tractor

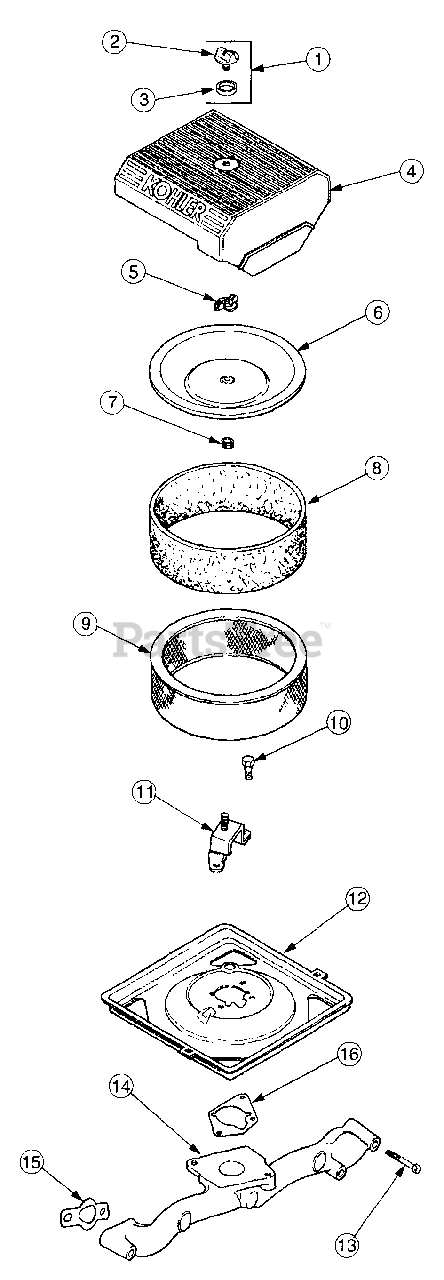

Air Intake And Filtration Parts Diagram

  • Title

1

Cub Cadet KH-54-755-01

Kit, Knob w/Seal
(Superseded to KH-54-755-01-S)

Note: (Includes 2, 3)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-341-03

Knob, Cover

$

$

Not available

3

Cub Cadet KH-24-153-15

Seal, Air Cleaner Cover Knob

$

$

Not available

4

Cub Cadet KH-24-096-31

Cover, Air Cleaner
(Superseded to KH-24-096-69-S)

$47.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-100-01

Wing Nut

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

7

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

In Stock, Qty 9

0

8

Cub Cadet KH-24-083-02

Precleaner, Element
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-47-083-03

Element, Air Cleaner
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-M-0639016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-126-21

Bracket, Air Cleaner Base
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 6

0

12

Cub Cadet KH-24-094-03

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-M-0651055

Screw, Hex Flange, M6 x 1.0 x 55

$

$

Currently unavailable

14

Cub Cadet KH-24-164-14

Manifold, Intake

$

$

Not available

15

Cub Cadet KH-24-041-01

Gasket, Intake Manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0
