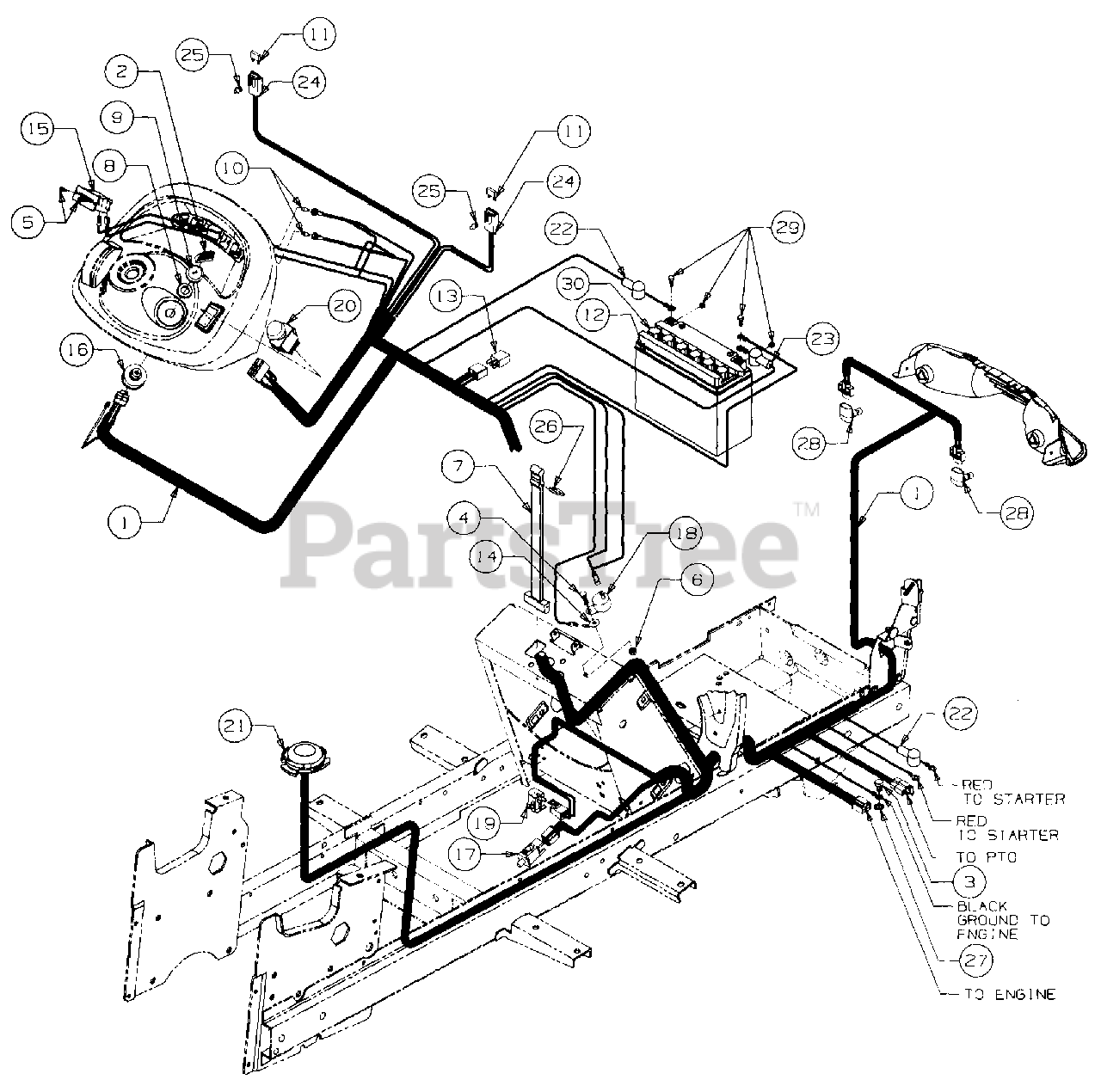

2185 (135-288-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Battery, Electrical Components and Switches Parts Diagram

Garden Tractor

Battery, Electrical Components and Switches Parts Diagram

  • Title

1

Cub Cadet 629-3011A

Main Harness
(Superseded to 929-3011A)

$

$

Not available

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 726-0215

Tie, Pushmount

$

$

Not available

2

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0168

Screw, Hex Cap, 3/8-16 x .50 Lg

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Lg

$3.99

$

In Stock, Qty 14

0

5

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 x .62 Lg

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 723-3064

Strap, Battery Retainer

Note: (Includes Ref No. 26)

$29.99

$

In Stock, only 4 left!

0

8

Cub Cadet 725-1346

Nut, Ignition Switch
(Superseded to 925-1346)

$

$

Not available

9

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

12

Cub Cadet 753-0608

Battery

$

$

Not available

Cub Cadet 726-0161

Clip, Retainer

$

$

Not available

13

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

14

Cub Cadet 725-3147

Lug, Quick Connect

$

$

Not available

15

Cub Cadet 725-3159

Hour Motor
(Superseded to 925-3159)

$

$

Not available

16

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

17

Cub Cadet 725-3164

Switch, Interlock (Brake)
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-3165

Indicator, Voltage
(Superseded to 929-3080)

$

$

Not available

19

Cub Cadet 725-3166

Switch, Snap Mount - Closed (Reverse) Normally
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

20

Cub Cadet 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 9

0

21

Cub Cadet 725-3234

Switch, Seat
(Superseded to 925-3234)

$36.99

$

In Stock, Qty 7

0

22

Cub Cadet 725-3237

Cover, Terminal Red

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 725-3238

Cover, Terminal Black

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

25

Cub Cadet 729-0209

Clip, Fuse Holder Mtg.

$

$

Not available

26

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0148

Washer, External Lock, 318

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 759-3693

Bulb, Head Lamp
(Superseded to 925-3161A)

$52.99

$

In Stock, only 2 left!

0

29

Cub Cadet 759-3749

Bolt, Battery (Set of 2)

$

$

Not available

30

Cub Cadet 759-3750

Cap, Battery

$

$

Not available
