21844 - Toro 43cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 323000001 - 323999999) (2023) Traction and Height-of-Cut Assembly Parts Diagram

43cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

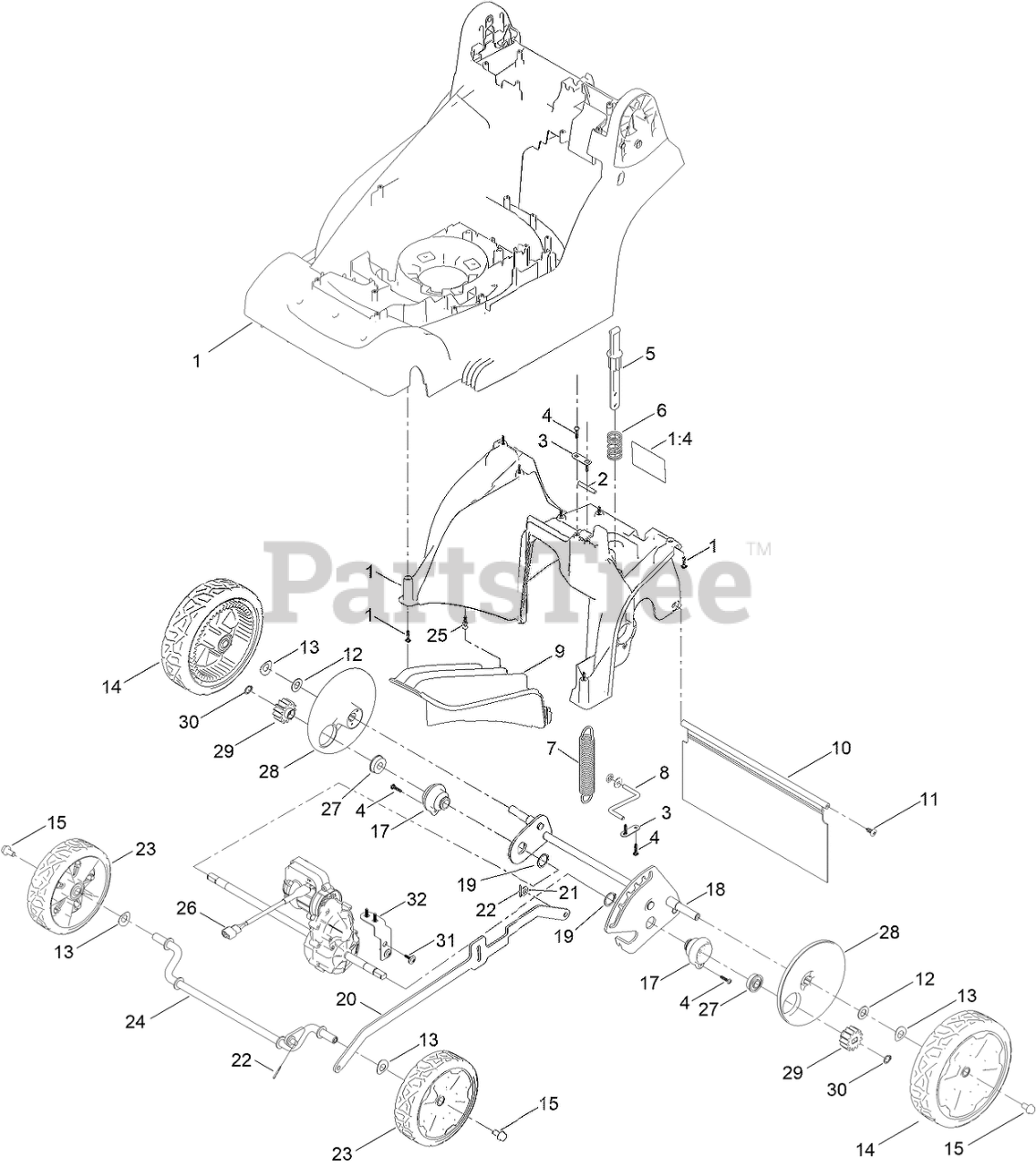

Traction and Height-of-Cut Assembly Parts Diagram

  • Title
1

Toro 134-6914

DECK, GLUED (43)

$

$

Currently unavailable

1:4

Toro 134-5099

DECAL - SAFETY

$

$

Currently unavailable

2

Toro 134-4096

BAR, SPRING MOUNT

$

$

Currently unavailable

3

Toro 134-4394

AXLE PLATE, SMALL

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro 134-4319

HOC BUTTON PLUNGER

$

$

Currently unavailable

6

Toro 134-4088

SPRING, HOC BUTTON

$

$

Currently unavailable

7

Toro 134-4092

HOC SPRING, 4 WHEEL

$

$

Currently unavailable

8

Toro 134-7568

HOC WIRE ASM

$

$

Currently unavailable

9

Toro 134-5295

MULCH PLUG

$

$

Currently unavailable

10

Toro 134-4437

SHIELD-TRAILING

$

$

Currently unavailable

11

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

12

Toro ZWP1L000U

WASHER-PLAIN

$

$

Currently unavailable

13

Toro 134-4457

WAVE WASHER, FRONT WHEELS

$

$

Currently unavailable

14

Toro 134-4363

WHEEL-REAR ASSEMBLY

$

$

Currently unavailable

15

Toro 134-4358

BOLT, M8 X 1.25, 16MM

$

$

Currently unavailable

17

Toro 134-4452

BEARING MOUNT

$

$

Currently unavailable

18

Toro 134-4050

REAR AXLE FRAME, ASSY, WHEEL

$39.99

$

Usually ships in 3-6 days

0

19

Toro 134-4435

CIRCLIP, EXT

$3.99

$

Usually ships in 3-6 days

0

20

Toro 134-4029

Cover, Exhaust-Right

$

$

Currently unavailable

21

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

22

Toro 134-4454

COTTER PIN

$

$

Currently unavailable

23

Toro 134-4307

WHEEL-TORO FRONT ASSEMBLY

$

$

Currently unavailable

24

Toro 134-4312

FRONT AXLE, ASSEMBLY

$

$

Currently unavailable

25

Toro 134-5294

PIN, RETAINING, MULCH PLUG

$

$

Currently unavailable

26

Toro 134-4102

TRANSMISSION, 4-WHEEL

$

$

Currently unavailable

27

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

28

Toro 134-4033

INNER COVER, REAR WHEEL

$

$

Currently unavailable

29

Toro 134-5214

GEAR-PINION, 13T

$

$

Currently unavailable

30

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

31

Toro 134-4476

SCREW, T20 X 18, FLANGED

$

$

Currently unavailable

32

Toro 134-4391

BRACKET, GEARBOX, 4-WHEEL

$

$

Currently unavailable
