21844 - Toro 43cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 321000001 - 321999999) (2021) Handlebar and Control Assembly Parts Diagram

43cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

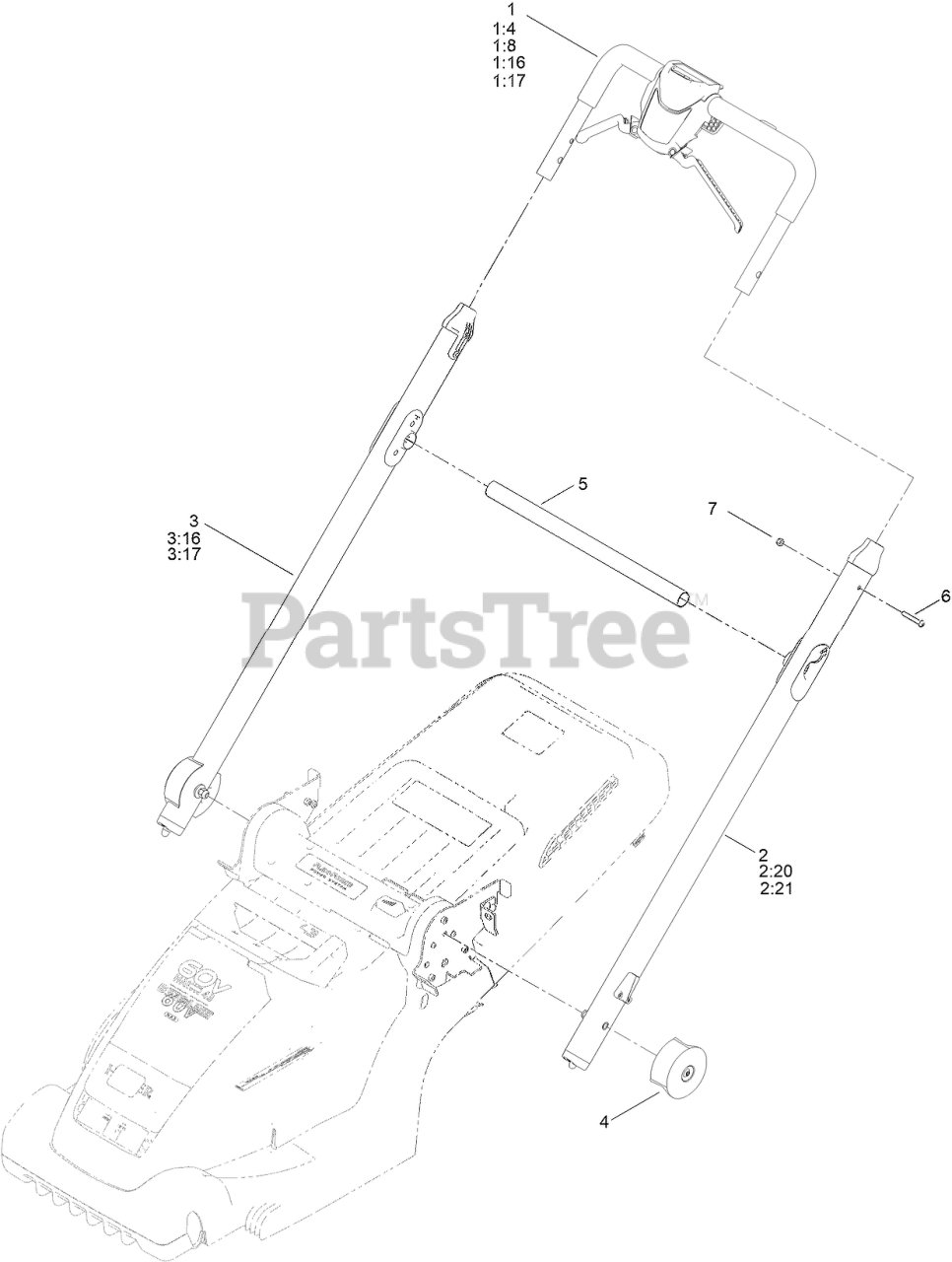

Handlebar and Control Assembly Parts Diagram

  • Title
1

Toro 134-6355

CONTROL LEVER ASM, PROPELLED

$

$

Currently unavailable

1:4

Toro 134-6903

TOP BUTTON KIT

$

$

Currently unavailable

1:8

Toro 134-6904

UPPER LEVER KIT (43)

$

$

Currently unavailable

1:16

Toro 134-6909

LOWER LEVER KIT

$

$

Currently unavailable

1:17

Toro 134-6907

SPEED CONTROLLER WHEEL KIT

$

$

Currently unavailable

2

Toro 134-6353

HANDLEBAR ASM, LH

$

$

Currently unavailable

2:20

Toro 134-5308

HANDLEBAR BRACE - INNER

$

$

Currently unavailable

2:21

Toro 134-5309

HANDLEBAR BRACE, OUTER

$

$

Currently unavailable

3

Toro 134-6354

HANDLEBAR ASM, RH

$

$

Currently unavailable

3:16

Toro 134-5308

HANDLEBAR BRACE - INNER

$

$

Currently unavailable

3:17

Toro 134-5309

HANDLEBAR BRACE, OUTER

$

$

Currently unavailable

4

Toro 134-4416

HANDLEBAR END CAP

$

$

Currently unavailable

5

Toro 134-4458

BRACE, HANDLEBAR RELEASE

$

$

Currently unavailable

6

Toro 134-5206

BOLT, M6X40

$

$

Currently unavailable

7

Toro 134-5207

NUT, M6, NYLOC

$

$

Currently unavailable
