21836 - Toro 36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 322000001 - 322999999) (2022) Motor, Battery and Blade Assembly Parts Diagram

36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

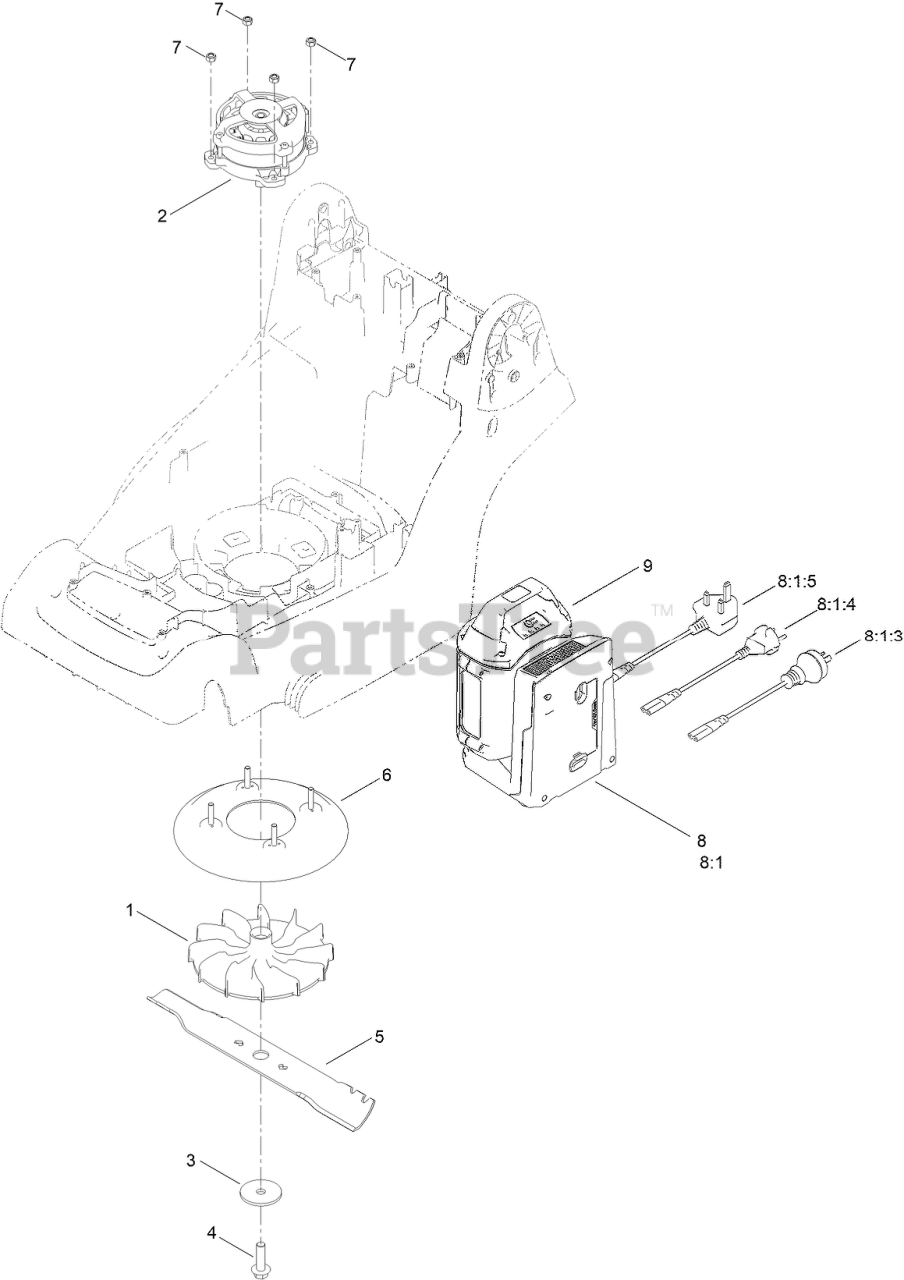

Motor, Battery and Blade Assembly Parts Diagram

  • Title
1

Toro 134-4381

BLADE CARRIER

$

$

Currently unavailable

2

Toro 134-4106

MOTOR, BRUSHLESS, 60V, 600W

$

$

Currently unavailable

3

Toro 134-4382

BLADE WASHER

$

$

Currently unavailable

4

Toro 134-4383

BLADE BOLT

$

$

Currently unavailable

5

Toro 134-5212

BLADE, MULCH, 36CM

$

$

Currently unavailable

6

Toro 134-4133

BLADE COVER

$

$

Currently unavailable

7

Toro 134-4467

NUT, NYLOC, M6X1

$

$

Currently unavailable

8

Toro 139-8291

60V CHARGER CE

$

$

Currently unavailable

8:1

60V CHARGER 2 AMP

Note: Not serviced separately

$

$

Not available

8:1:3

Toro 140-2192

CORD-CHARGER, AU/NZ

$15.99

$

Usually ships in 3-6 days

0

8:1:4

Toro 140-2193

CORD-CHARGER, CE

$15.99

$

Usually ships in 3-6 days

0

8:1:5

Toro 140-2194

CORD-CHARGER, UK

$24.99

$

Usually ships in 3-6 days

0

9

Toro 81825

60V 2.5 AH BATTERY CE

$

$

Currently unavailable
