21836 T - Toro 36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 323000001 - 323999999) (2023) Handle Assembly Parts Diagram

36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

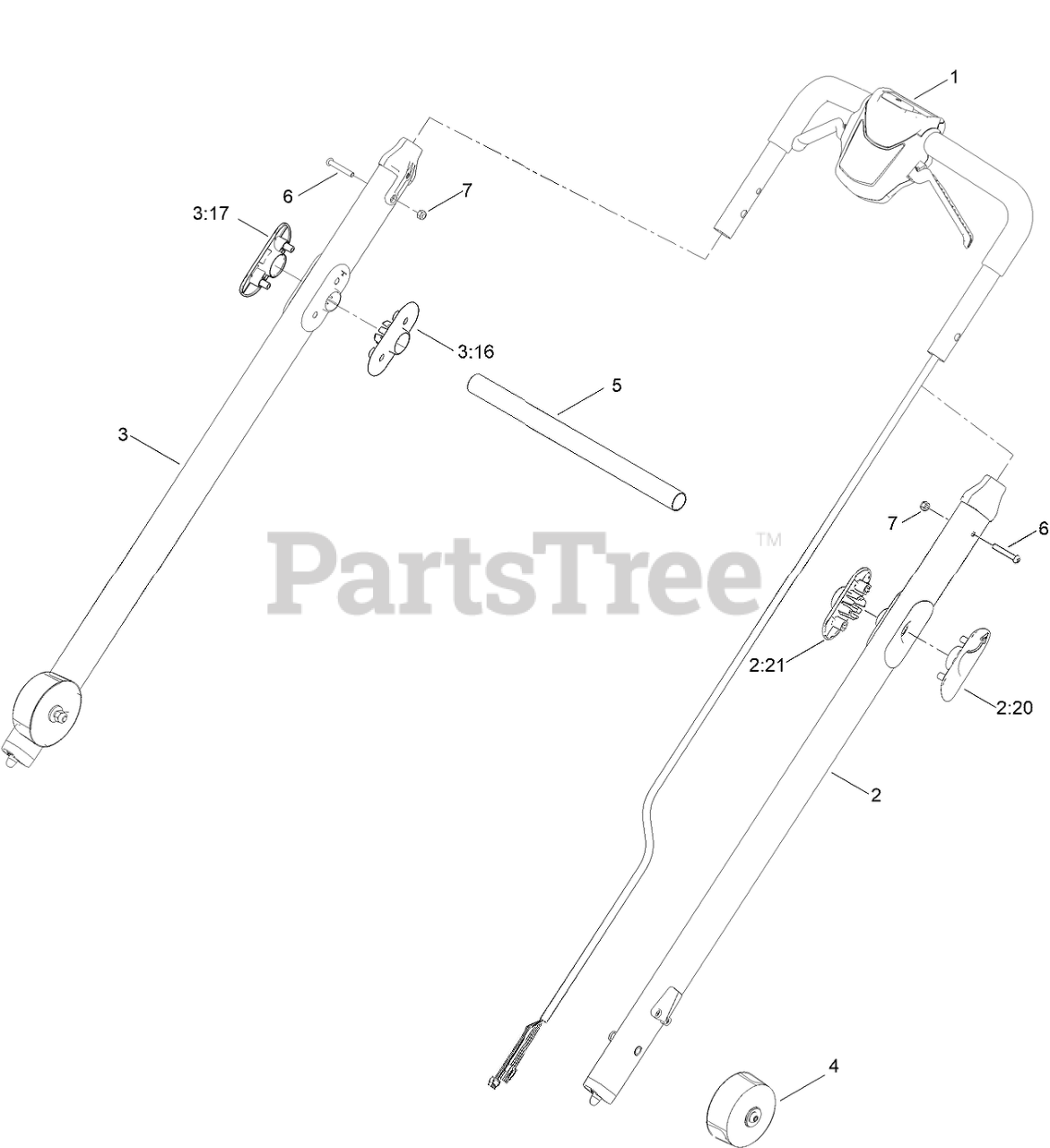

Handle Assembly Parts Diagram

  • Title
1

Toro 134-5240

HANDLEBAR CONTROL ASM, 36CM

$

$

Currently unavailable

2

Toro 134-6353

HANDLEBAR ASM, LH

$

$

Currently unavailable

2:20

Toro 134-5308

HANDLEBAR BRACE - INNER

$

$

Currently unavailable

2:21

Toro 134-5309

HANDLEBAR BRACE, OUTER

$

$

Currently unavailable

3

Toro 134-6354

HANDLEBAR ASM, RH

$

$

Currently unavailable

3:16

Toro 134-5308

HANDLEBAR BRACE - INNER

$

$

Currently unavailable

3:17

Toro 134-5309

HANDLEBAR BRACE, OUTER

$

$

Currently unavailable

4

Toro 134-4416

HANDLEBAR END CAP

$

$

Currently unavailable

5

Toro 134-5239

BRACE, HANDLEBAR RELEASE

$

$

Currently unavailable

6

Toro 134-5206

BOLT, M6X40

$

$

Currently unavailable

7

Toro 134-5207

NUT, M6, NYLOC

$

$

Currently unavailable
