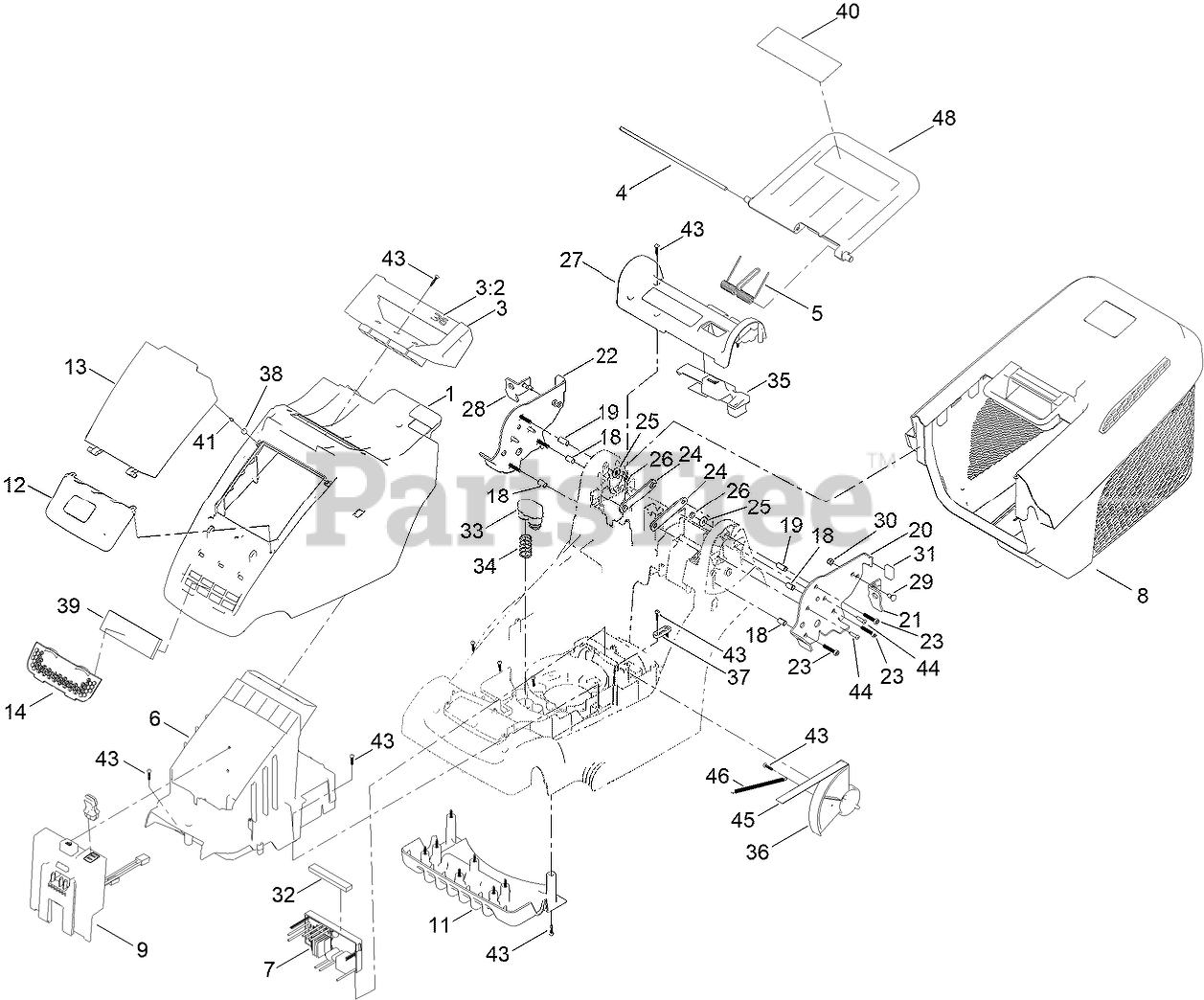

21836 T - Toro 36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 323000001 - 323999999) (2023) Frame Assembly Parts Diagram

36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 134-5434

TOP COVER

$

$

Currently unavailable

3

Toro 134-5311

CARRY HANDLE

$

$

Currently unavailable

3:2

Toro 134-5410

ARTWORK - 36CM

$

$

Currently unavailable

4

Toro 134-5288

ROD, REAR FLAP

$

$

Currently unavailable

5

Toro 134-4037

SPRING, REAR DEFLECTOR

$

$

Currently unavailable

6

Toro 134-4120

Guard, Flywheel

$

$

Currently unavailable

7

Toro 134-6381

DRIVER-MOTOR, 36CM

$

$

Currently unavailable

8

Toro 134-6957

GRASS BOX ASM

$

$

Currently unavailable

9

Toro 134-4105

BATTERY INTERFACE ASSEMBLY

$

$

Currently unavailable

11

Toro 134-4137

FRONT FINS

$

$

Currently unavailable

12

Toro 134-5316

BATTERY DOOR LOWER, PRINTED

$

$

Currently unavailable

13

Toro 134-5313

BATTERY DOOR, PRINTED

$

$

Currently unavailable

14

Toro 134-4322

AIR INLET GRILL-TORO

$

$

Currently unavailable

18

Toro 134-6369

BUSH

$

$

Currently unavailable

19

Toro 134-6374

BUSH

$

$

Currently unavailable

20

Toro 134-4396

MOUNT PLATE, HANDLEBAR, LEFT

$

$

Currently unavailable

21

Toro 134-5175

BRACKET, V-STOW, LEFT

$

$

Currently unavailable

22

Toro 134-4398

MOUNT PLATE, HANDLEBAR, RIGHT

$

$

Currently unavailable

23

Toro 134-6371

SCREW

$

$

Currently unavailable

24

Toro 134-6370

BRACE-BAR

$

$

Currently unavailable

25

Toro 134-5439

WASHER

$

$

Currently unavailable

26

Toro 134-6376

NUT

$

$

Currently unavailable

27

Toro 134-4113

HOC COVER

$

$

Currently unavailable

28

Toro 134-5177

BRACKET, V-STOW, RIGHT

$

$

Currently unavailable

29

Toro 134-5235

BOLT, CARRIAGE, M6X1

$

$

Currently unavailable

30

Toro 134-5234

NUT, NYLOC, M6X1

$

$

Currently unavailable

31

Toro 134-4434

RUBBER FOOT-V-STOW

$

$

Currently unavailable

32

Toro 134-5432

FILTER, AIR-CONTROL BOARD

$

$

Currently unavailable

33

Toro 134-5282

BATTERY SPRING COVER

$

$

Currently unavailable

34

Toro 134-4371

SPRING, BATTERY EJECT

$

$

Currently unavailable

35

Toro 134-6378

HOC BUTTON, 36CM

$

$

Currently unavailable

36

Toro 134-4099

HOC DIAL

$

$

Currently unavailable

37

Toro 134-6367

TAB

$

$

Currently unavailable

38

Toro 114-5896

MAGNET

$6.49

$

In Stock, only 1 left!

0

39

Toro 134-4341

Cover, Exhaust-Right

$

$

Currently unavailable

40

Toro 134-4550

DECAL SAFETY 60V

$

$

Currently unavailable

41

Toro 134-4375

PT SCREW 3MM X 10MM CSK

$

$

Currently unavailable

43

Toro 134-7001

SCREW

$

$

Currently unavailable

44

Toro 134-5431

SCREW-TORX

$

$

Currently unavailable

45

Toro 134-5436

DECAL - HOC

$

$

Currently unavailable

46

Toro 134-6356

SPRING

$

$

Currently unavailable

48

Toro 134-5433

REAR DEFLECTOR, TORO

$

$

Currently unavailable
