21836 T - Toro 36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 322000001 - 322999999) (2022) Motor and Blade Assembly Parts Diagram

36cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

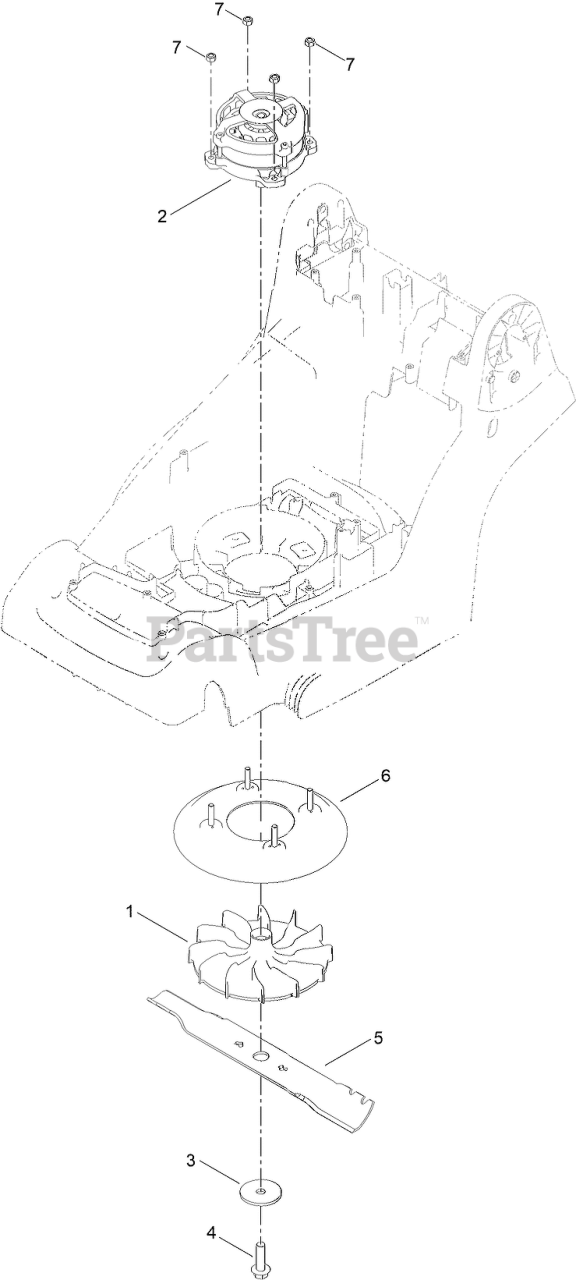

Motor and Blade Assembly Parts Diagram

  • Title
1

Toro 134-4381

BLADE CARRIER

$

$

Currently unavailable

2

Toro 134-4106

MOTOR, BRUSHLESS, 60V, 600W

$

$

Currently unavailable

3

Toro 134-4382

BLADE WASHER

$

$

Currently unavailable

4

Toro 134-4383

BLADE BOLT

$

$

Currently unavailable

5

Toro 134-5212

BLADE, MULCH, 36CM

$

$

Currently unavailable

6

Toro 134-4133

BLADE COVER

$

$

Currently unavailable

7

Toro 134-4467

NUT, NYLOC, M6X1

$

$

Currently unavailable
