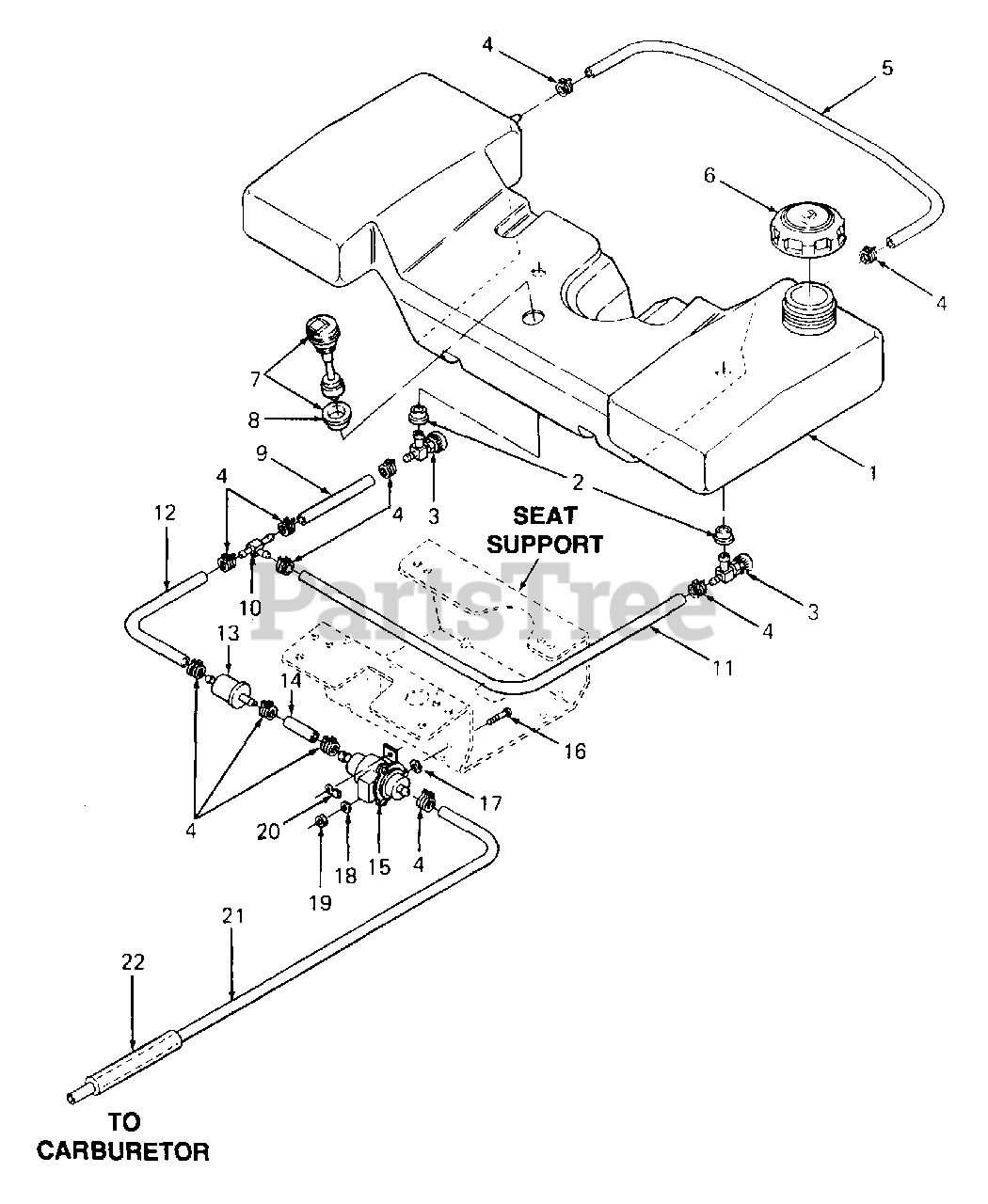

2182 (143-743-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 880000) Fuel Tank S/N 836,000 & Above Parts Diagram

Super Garden Tractor

Fuel Tank S/N 836,000 & Above Parts Diagram

  • Title
1

Cub Cadet 751-3106

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

5

Line, Fuel - 24" Lg

Note: Order Bulk Fuel Line P/N 759-3330, 10 Ft Lg.

$

$

Not available

6

Cub Cadet 751-3118

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

7

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

8

Cub Cadet 759-3616

Bushing, Rubber
(Superseded to 735-0699)

$16.99

$

In Stock, only 2 left!

0

9

Line, Fuel - 5" Lg

Note: Order Bulk Fuel Line P/N 759-3330, 10 Ft Lg.

$

$

Not available

10

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$7.49

$

In Stock, only 2 left!

0

11

Line, Fuel - 17" Lg

Note: Order Bulk Fuel Line P/N 759-3330, 10 Ft Lg

$

$

Not available

12

Line, Fuel - 6" Lg

Note: Order Bulk Fuel Line P/N 759-3330, 10 Ft Lg

$

$

Not available

13

Cub Cadet KB-12691-43010

Filter, Fuel
(Superseded to KB-12581-43012)

$44.99

$

Usually ships in 3-6 days

0

14

Line, Fuel - 2" Lg

Note: Order Bulk Fuel Line P/N 759-3330, 10 Ft Lg

$

$

Not available

15

Cub Cadet KB-12691-52030

Fuel Pump Assy
(Superseded to KB-EG601-52034)

$279.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0946

Screw, Truss Mach, 1/4-20 X .62 Lg

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-3006

Washer, Int-Ext Lock, 1/4

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0175

Washer, Spring, .265 X .562
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

19

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 725-3147

Lug, Quick Connect

$

$

Not available

21

Line, Fuel - 64" Lg

Note: Order Bulk Fuel Line P/N 750-3330, 10 Ft Lg.

$

$

Not available

22

Insulator, Fuel Line - 24" Lg

Note: Order Bulk Fuel Line Insulator P/N 759-3691,10 Ft Lg.

$

$

Not available

Cub Cadet 750-3330

Line, Bulk Fuel - 10 Ft Lg.

$

$

Currently unavailable

Cub Cadet 759-3691

Insulator, Bulk Fuel Line- 10 Ft Lg.
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0
