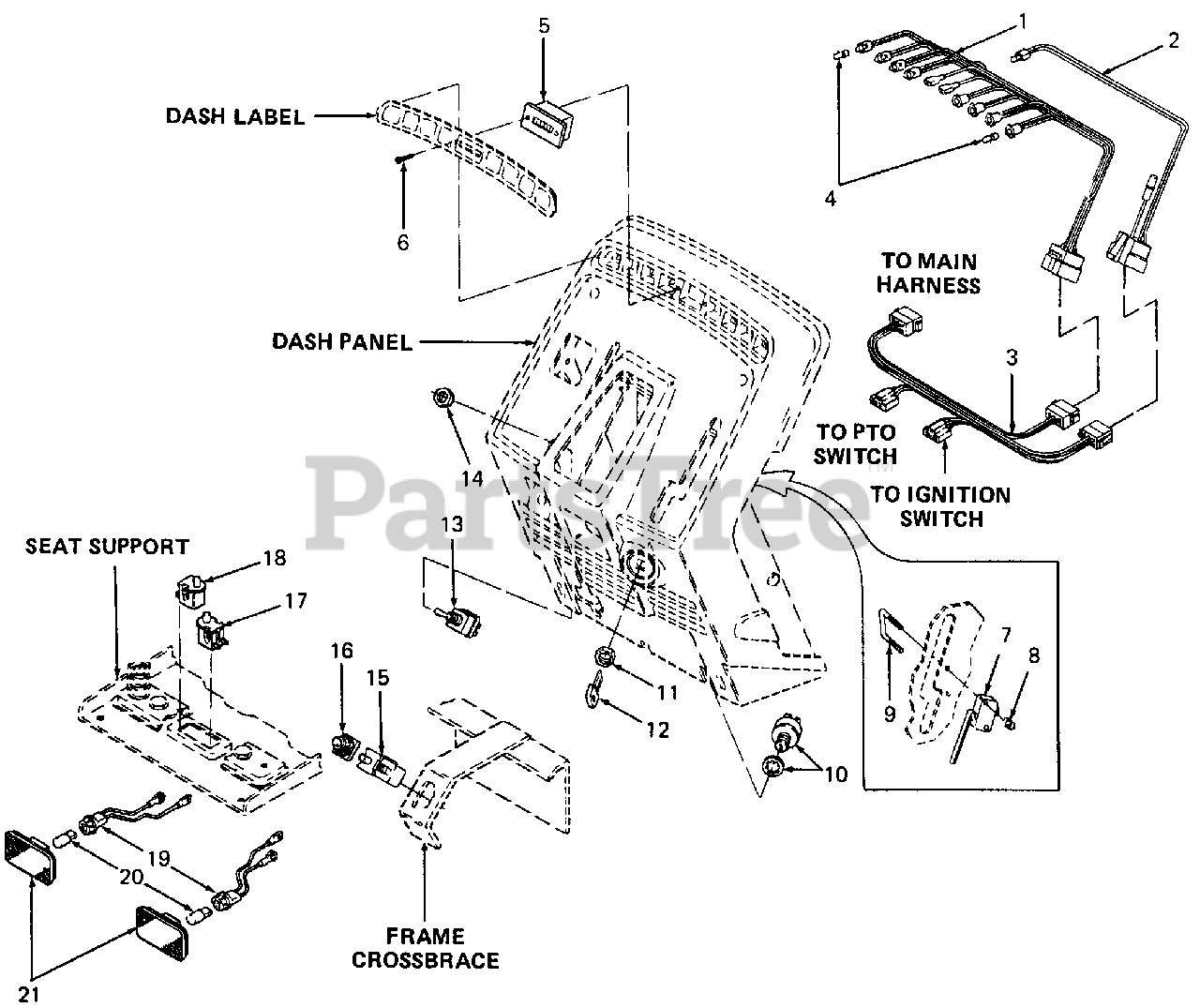

2182 (140-741-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 816535) Electrical Parts Diagram

Super Garden Tractor

Electrical Parts Diagram

  • Title
1

Cub Cadet 725-3185

Harness, Indicator Wire

$

$

Not available

2

Cub Cadet 725-3187

Harness, Indicator Adapter

Note: (Temperature Indicator)

$

$

Not available

3

Cub Cadet 725-3205

Harness, Pedestal

$

$

Not available

4

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 X .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

8

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

9

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

10

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

15

Cub Cadet 725-3191

Switch, Interlock
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

16

Cub Cadet 735-3036

Boot, Switch

$

$

Not available

17

Cub Cadet 725-3167

Switch, Snap Mount - Normally Open (Black)
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

18

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

19

Cub Cadet 725-3020

Bulb, Tail Light

$

$

Not available

20

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 736-3018

Washer, Int-Ext Lock, #8

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0

21

Cub Cadet 725-3208

Diode Assy

$

$

Not available
