2182 (140-741-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 816535) Battery, Battery Tray & Electrical Components Parts Diagram

Super Garden Tractor

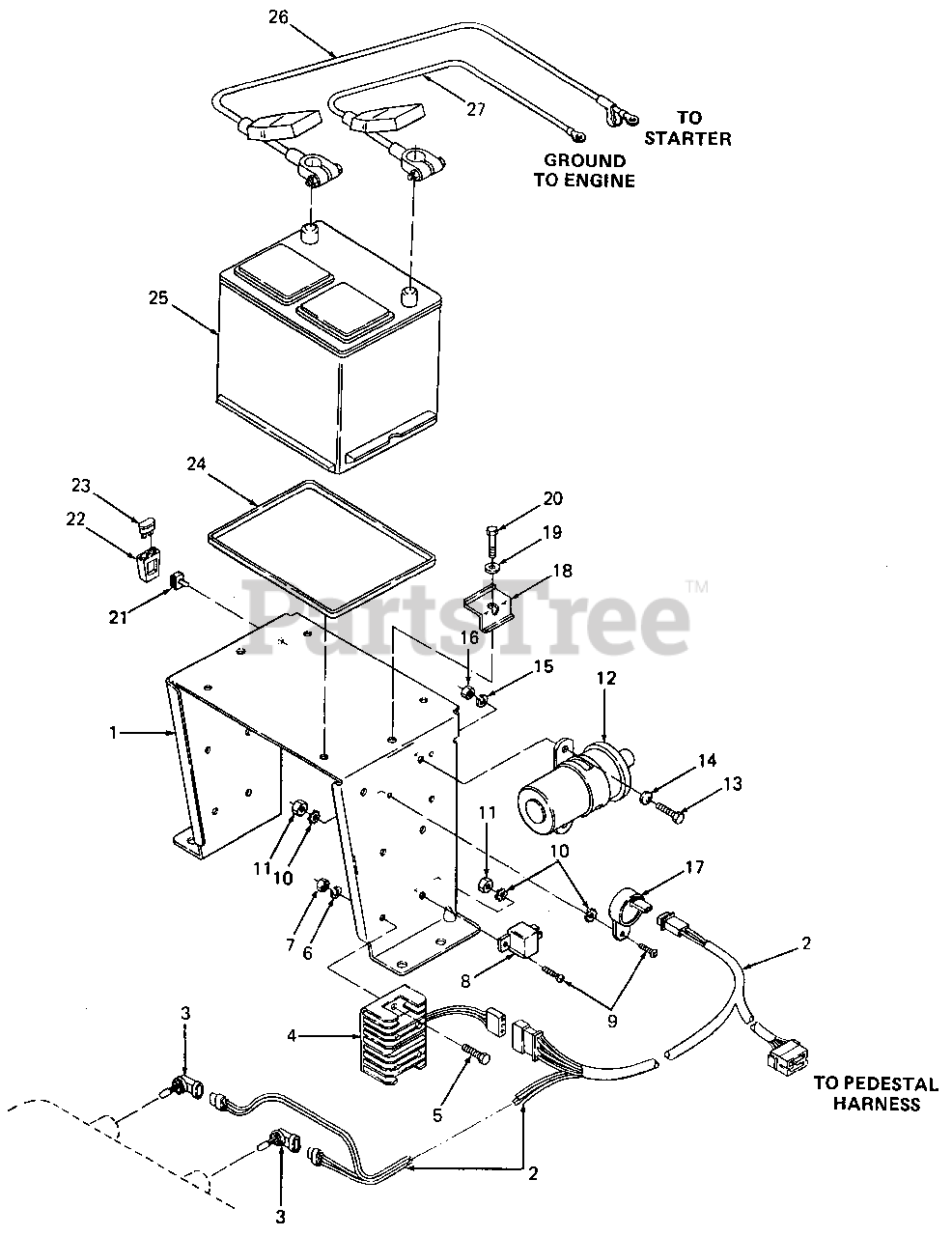

Battery, Battery Tray & Electrical Components Parts Diagram

  • Title
1

Cub Cadet 703-1892

Tray Assy, Battery

$

$

Not available

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

2

Cub Cadet 725-3184

Harness, Main

$

$

Currently unavailable

3

Cub Cadet 759-3693

Bulb, Head Lamp
(Superseded to 925-3161A)

$52.99

$

In Stock, only 2 left!

0

4

Cub Cadet KB-19267-64600

Rectifier
(Superseded to KB-RP201-53710)

$

$

Not available

5

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 X 1.25 Lg

$3.99

$

In Stock, Qty 12

0

6

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

8

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 5

0

9

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 X .50 Lg

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 736-0147

Washer, External, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0121

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet KB-15661-68902

Coil, Ignition

$287.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 725-3165

Indicator, Voltage
(Superseded to 929-3080)

$

$

Not available

18

Cub Cadet 703-1823

Hold Down, Battery
(Superseded to 703-1823-0716)

Variations

Cub Cadet 703-1823-0716

Battery Hold-Down - CUB YELLOW-99 (0716)

$

$

Not available

$

$

19

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 X 2.0 Lg

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

22

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

23

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

24

Cub Cadet 731-3105

Tray, Battery

$

$

Not available

25

Cub Cadet 725-3174

Battery
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 725-3199

Cable, Positive Battery
(Superseded to 925-3199)

$

$

Not available

Cub Cadet 726-0215

Strap, Tie

$

$

Not available

27

Cub Cadet 725-3192

Cable, Negative Battery

$

$

Not available
