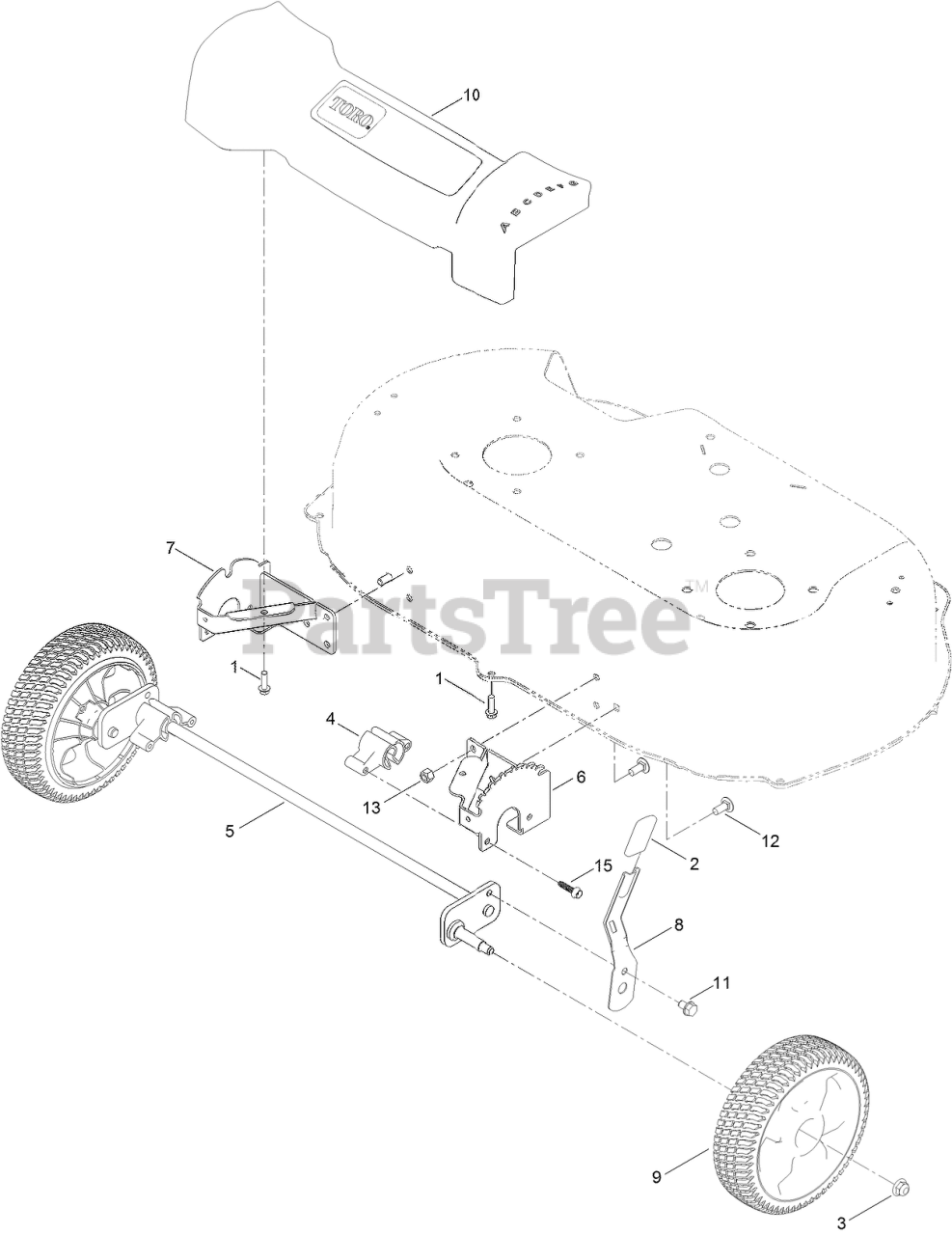

21811 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 400000000 - 405541083) Front Wheel and Height-of-Cut Assembly Parts Diagram

76cm TimeMaster Walk-Behind Mower

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 120-9535

GRIP-LEVER

$1.99

$

In Stock, Qty 20+

0

3

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 136-5875

BUSHING-PIVOT, FRONT

$

$

Not available

5

Toro 138-3245

AXLE-FRONT
(Superseded to 139-1753)

$44.99

$

In Stock, Qty 11

0

6

Toro 120-7037-03

PLATE-HOC, LH

$25.99

$

In Stock, Qty 20+

0

7

Toro 120-7038-03

PLATE-HOC, RH

$25.99

$

In Stock, Qty 11

0

8

Toro 120-7043

ARM-SPRING

$13.99

$

In Stock, Qty 20+

0

9

Toro 125-2510

8 INCH WHEEL ASM

$31.99

$

In Stock, Qty 20+

0

10

Toro 125-5027

FRONT COVER ASM

$49.99

$

In Stock, only 3 left!

0

11

Toro 139-1727

SCREW-HWH, THD ROLL

$1.99

$

Usually ships in 3-6 days

0

12

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

13

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, only 3 left!

0

15

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0
