Toro 21811 (TM76K) - Toro 76cm TimeMaster Walk-Behind Mower (SN: 413000000 - 414160194) Handle Assembly Parts Lookup with Diagrams

1

Toro 120-5204-05

HANDLE-LOWER

$98.99

$

In Stock, only 2 left!

2

Toro 132-4484-05

HANDLE-UPPER

$53.99

$

In Stock, Qty 7

3

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, Qty 7

4

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 1 left!

5

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, Qty 8

6

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

7

Toro 127-6842

LEVER-TRACTION

$4.49

$

In Stock, only 1 left!

8

Toro 139-1694

BOLT-SHOULDER, HHF

$3.49

$

Usually ships in 3-6 days

9

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

10

Toro 133-1998

CABLE-BRAKE

$43.99

$

In Stock, Qty 20+

12

Toro 127-6867

CABLE-TRACTION

$27.99

$

In Stock, Qty 20+

14

Toro 140-4357

DECAL-BATTERY CHARGING

$10.99

$

Usually ships in 3-6 days

15

Toro 132-4516

PLUG-SQUARE

$1.49

$

Usually ships in 3-6 days

17

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

18

Toro 120-3911

DECAL-HANDLE

$15.99

$

Usually ships in 3-6 days

19

Toro 108-3788-03

BAIL-BRAKE

$43.99

$

In Stock, Qty 6

20

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, Qty 5

21

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, Qty 7

22

Toro 107-7463

SPACER

$3.49

$

In Stock, Qty 15

23

Toro 138-3220

LEVER

$2.99

$

In Stock, Qty 19

24

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

25

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 12

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

27

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

28

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 13

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 13

30

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

31

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

32

Toro 104-9368

PLUG-DOME

$0.99

$

In Stock, only 4 left!

33

Toro 131-0847

HANDLE-ASSIST, TRACTION

$14.99

$

In Stock, only 2 left!

34

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

35

Toro 137-4808

NUT-ACORN

$1.99

$

In Stock, Qty 18

36

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 5

37

Toro 108-3795

HOUSING-SWITCH, KEY

$21.99

$

In Stock, only 4 left!

38

Toro 137-3034

SCREW-HH

$1.49

$

Usually ships in 3-6 days

39

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 13

40

Toro 23-0660

SWITCH-STARTER

$23.99

$

In Stock, Qty 5

40:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

40:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

41

Toro 108-3796

COVER-SWTCH

$5.99

$

In Stock, only 2 left!

42

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

43

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

44

Toro 137-9153

CHARGER, BATTERY (12V, CE)

$53.99

$

Usually ships in 3-6 days

45

Toro 108-9751

DECAL-SWITCH, IGNITION

$8.99

$

Usually ships in 3-6 days

46

Toro 136-5895

HARNESS-WIRE

$118.99

$

Usually ships in 3-6 days

46:4

Toro 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

47

Toro 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 3 left!

49

Toro 120-3329

COVER-BATTERY

$6.49

$

In Stock, only 2 left!

57

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

58

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

99

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, only 2 left!

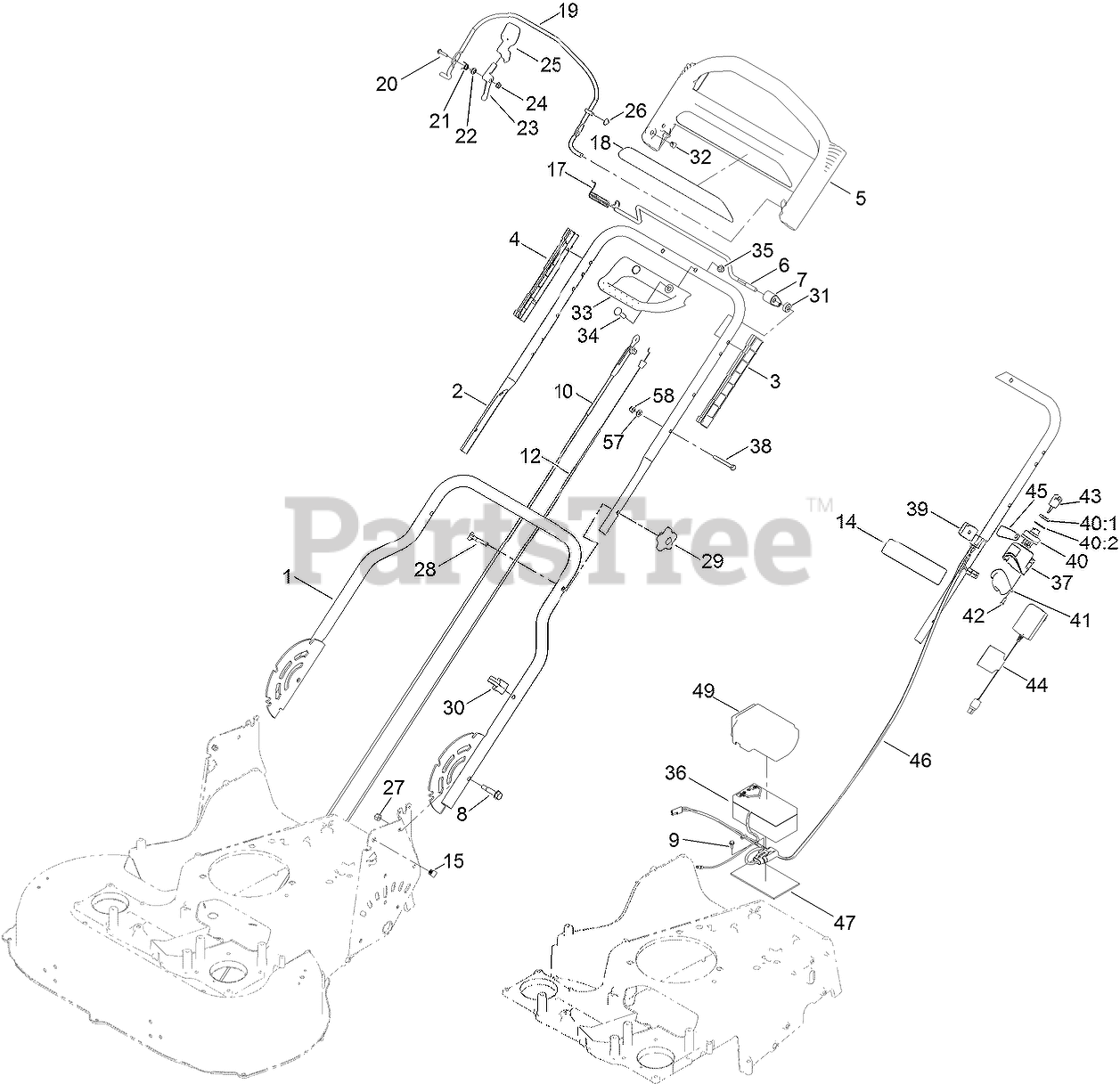

21811 (TM76K) - Toro 76cm TimeMaster Walk-Behind Mower (SN: 413000000 - 414160194) Handle Assembly Parts Diagram

Handle Assembly Parts Diagram
