21810 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 409999159 - 410999999) Side Discharge Chute Assembly Parts Diagram

76cm TimeMaster Walk-Behind Mower

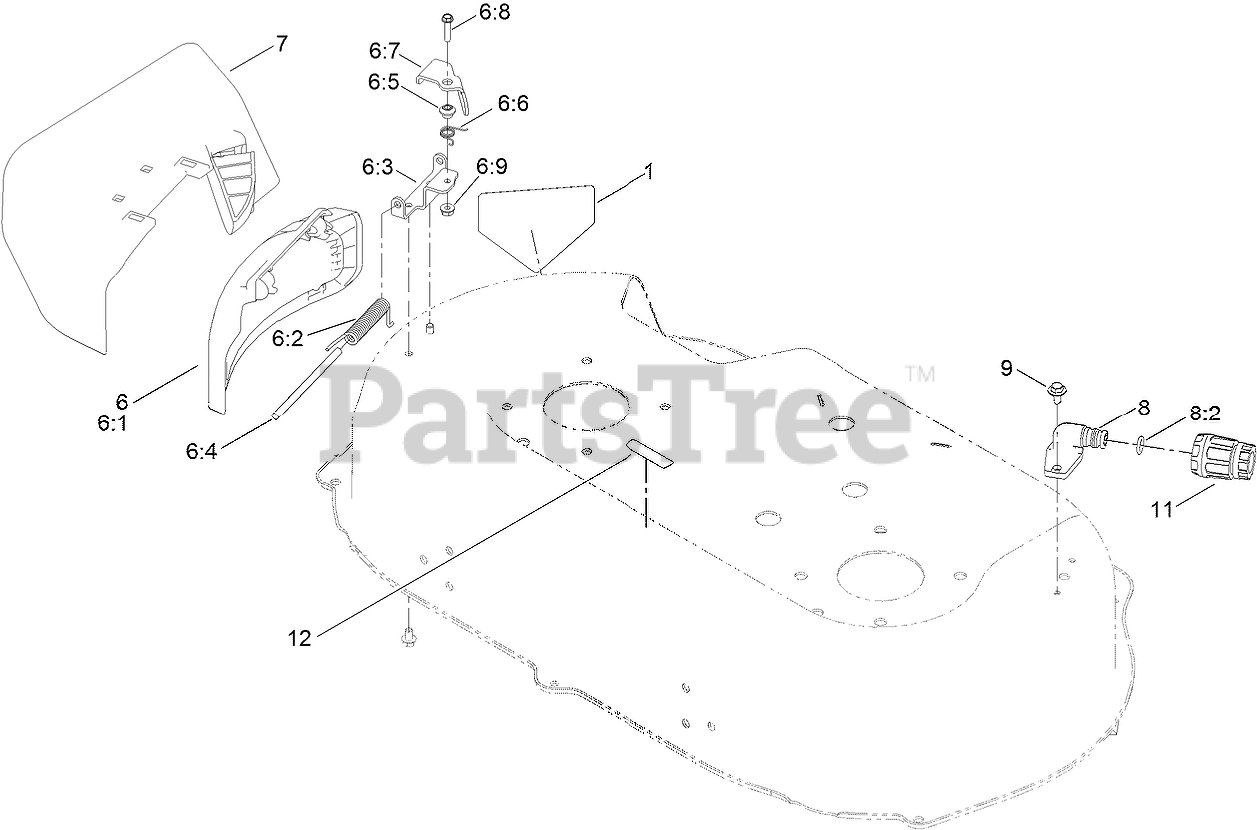

Side Discharge Chute Assembly Parts Diagram

  • Title

1

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

6

Toro 138-5325

SIDE DEFLECTOR SERVICE ASM

$29.99

$

Usually ships in 3-6 days

0

6:1

Toro 138-5317

DEFLECTOR-DISCHARGE, SIDE

$14.99

$

Usually ships in 3-6 days

0

6:2

Toro 127-0721

SPRING-TORSION, COVER

$4.99

$

In Stock, only 1 left!

0

6:3

Toro 138-3293

BRACKET-LOCKOUT

$4.49

$

Usually ships in 3-6 days

0

6:4

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

6:5

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

6:6

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

6:7

Toro 138-3292

LEVER-LOCKOUT

$2.99

$

Usually ships in 3-6 days

0

6:8

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

6:9

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

7

Toro 139-5416

SIDE DISCHARGE CHUTE ASM

$45.99

$

Usually ships in 3-6 days

0

8

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

8:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-1700

SCREW-HWH, THD ROLL

$1.49

$

Usually ships in 3-6 days

0

11

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

12

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 4 left!

0
