21810 (TM76) - Toro 76cm TimeMaster Walk-Behind Mower (SN: 413000000 - 414255981) Housing Assembly Parts Diagram

76cm TimeMaster Walk-Behind Mower

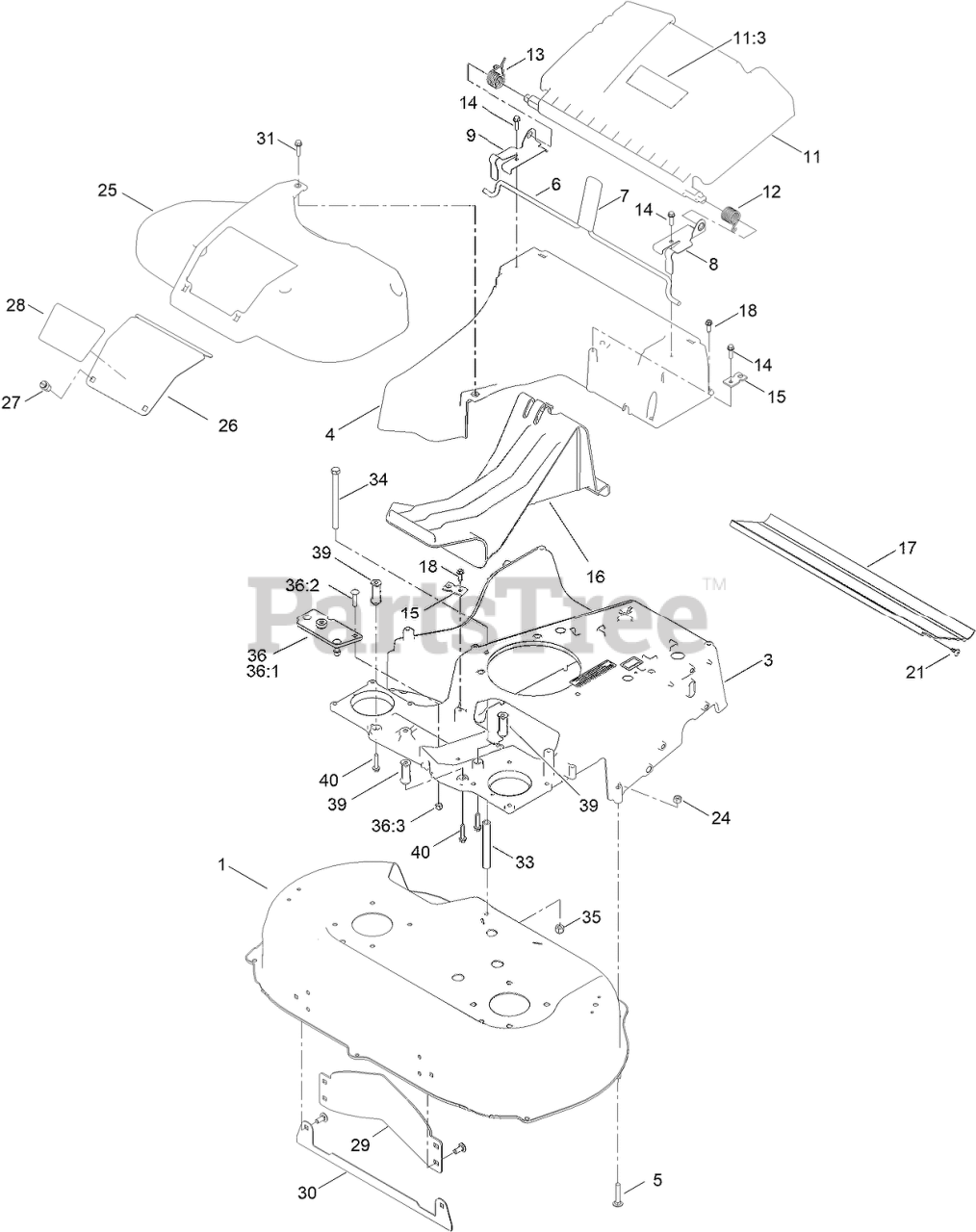

Housing Assembly Parts Diagram

  • Title

1

Toro 136-5874

HOUSING ASM

$257.99

$

Usually ships in 3-6 days

0

3

Toro 140-3977-01

FRAME-30"

$

$

Currently unavailable

4

Toro 133-8177

CHUTE

$56.99

$

Usually ships in 3-6 days

0

5

Toro 137-3063

BOLT-CAR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 139-5415

ROD-RELEASE, HANDLE

$15.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$3.99

$

In Stock, only 1 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$19.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$19.99

$

Usually ships in 3-6 days

0

11

Toro 120-7048

REAR DEFLECTOR ASM

$38.99

$

In Stock, only 1 left!

0

11:3

Toro 131-4514

DECAL-WARNING

$1.99

$

In Stock, only 4 left!

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

13

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

14

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 8

0

16

Toro 120-5225

PLUG-MULCH

$28.99

$

In Stock, only 3 left!

0

17

Toro 120-6241

SHIELD-TRAILING

$15.99

$

In Stock, Qty 9

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0

24

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

25

Toro 139-5406

COVER-BELT

$35.99

$

In Stock, only 1 left!

0

26

Toro 121-5793-03

DOOR-ACCESS

$16.99

$

In Stock, Qty 7

0

27

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

28

Toro 125-2507

DECAL-ACCESS PANEL

$4.99

$

Usually ships in 3-6 days

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$26.99

$

Usually ships in 3-6 days

0

30

Toro 125-5081-01

PLATE-DECK

$13.99

$

Usually ships in 3-6 days

0

31

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

33

Toro 139-5498

SPACER-SHIELD

$10.99

$

Usually ships in 3-6 days

0

34

Toro 139-5409

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

35

Toro 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

36

Toro 125-5072

FRAME PLATE KIT

$45.99

$

Usually ships in 3-6 days

0

36:1

Toro 125-2542

PLATE-FRAME

$40.99

$

Usually ships in 3-6 days

0

36:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

36:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Toro 140-3901

SPACER-FRAME, 30 IN.

$5.49

$

Usually ships in 0 days

0

40

Toro 108-4862

SCREW-HWHTF

$3.49

$

In Stock, only 2 left!

0
