218 (OEM-19A-218) - Cub Cadet Rear Bracket Weight Kit General Assembly Version 3 Parts Diagram

Rear Bracket Weight Kit

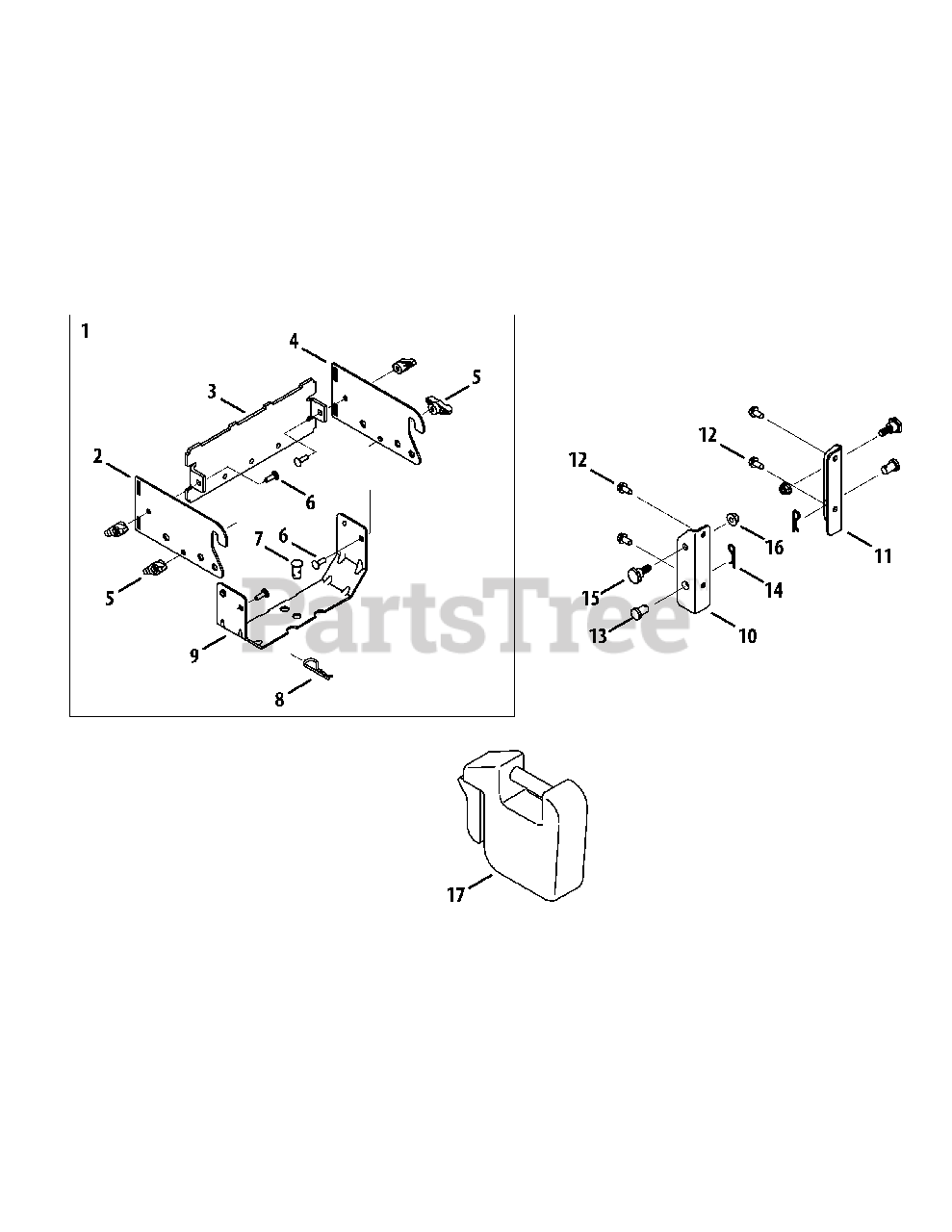

General Assembly Version 3 Parts Diagram

  • Title

1

Cub Cadet 689-00304

Mounting Bracket Kit (Incl. Ref. 2-4)
(Superseded to 689-00304A)

$

$

Not available

2

Cub Cadet n/a

Hitch Bracket, RH

Note: Can only be ordered as an assembly. Use Reference Number 1 to order.

$

$

Currently unavailable

3

Cub Cadet n/a

Rear Attachment Bracket

Note: Can only be ordered as an assembly. Use Reference Number 1 to order.

$

$

Currently unavailable

4

Cub Cadet n/a

Hitch Bracket, LH

Note: Can only be ordered as an assembly. Use Reference Number 1 to order.

$

$

Currently unavailable

5

Cub Cadet 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

8

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 783-08129-0637

Universal Bracket Support

$53.99

$

In Stock, only 1 left!

0

10

Cub Cadet 783-05889A-0637

Mounting Bracket, RH

$24.99

$

In Stock, only 1 left!

0

11

Cub Cadet 783-05890A-0637

Mounting Bracket, LH

$24.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-04484

Tap Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 911-0332

Clevis Pin, .50 x .78 Lg.

$16.99

$

In Stock, Qty 14

0

14

Cub Cadet 914-0145

Click Pin, .092 x 1.64 Lg.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04267

Shoulder Screw, .625 x .412

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 490-900-M059

Suitcase Weight, 45 lb.

$86.99

$

Usually ships in 3-6 days

0
