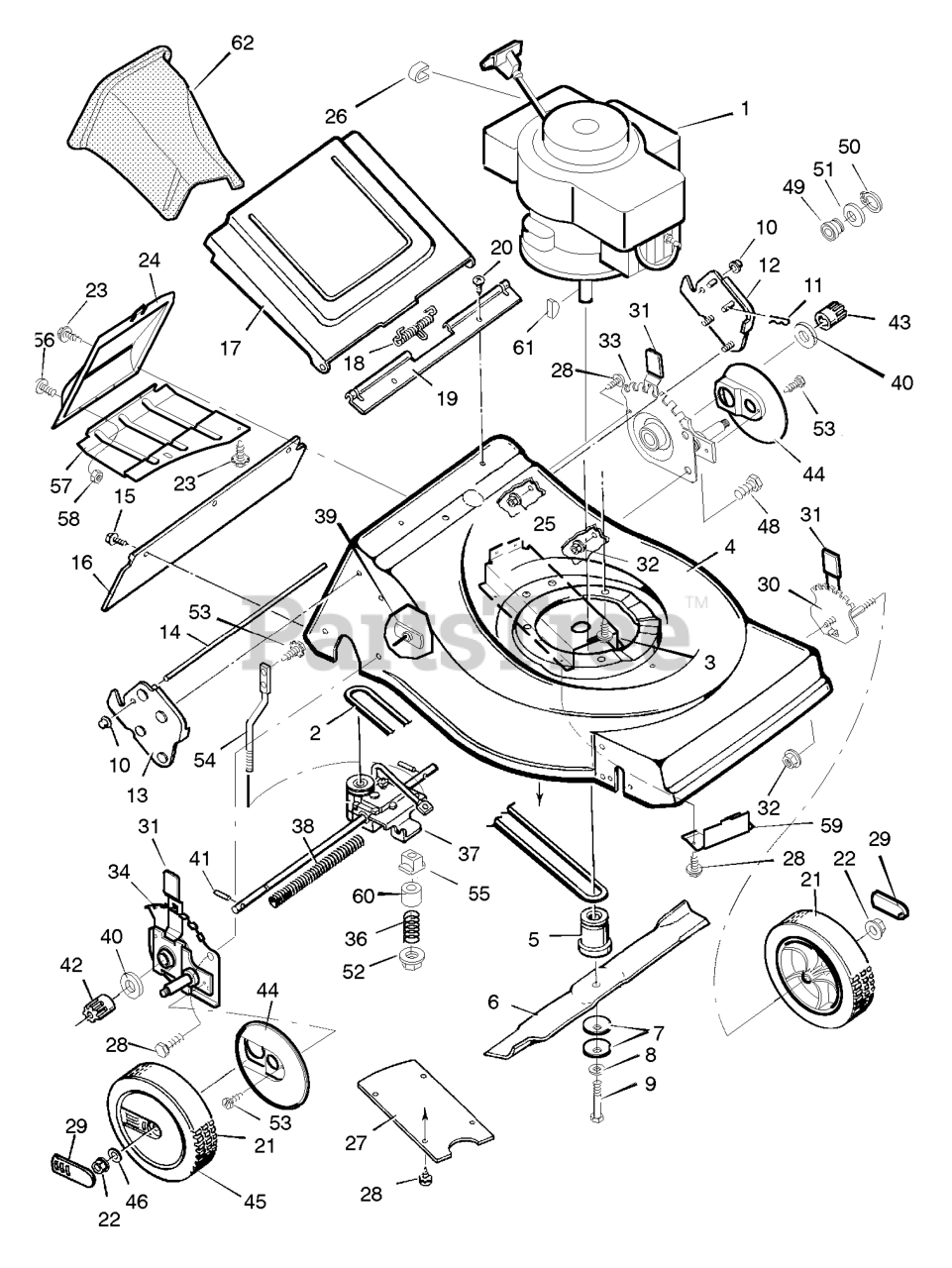

21785x8D - Scotts 21" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

21" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

Murray 037X64A

Belt, Drive

$

$

Currently unavailable

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 070136

Housing

$

$

Currently unavailable

5

Murray 071058

Adapter, Blade

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

8

$4.49

$

Usually ships in 2-12 days

0

$8.49

$

In Stock, only 2 left!

0

10

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

11

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

12

Murray 71097E701

Handle Bracket, Left

$

$

Currently unavailable

13

Murray 71096E701

Handle Bracket, Right

$

$

Currently unavailable

14

Murray 215X14 Z

Rod, Door Pivot

$

$

Currently unavailable

15

$4.49

$

In Stock, Qty 6

0

16

Murray 043640

Deflector, Rear

$

$

Not available

17

Murray 071409

Door, Rear

$66.99

$

Usually ships in 2-12 days

0

18

Murray 166X33MA

Spring, Torsion

$6.99

$

In Stock, only 1 left!

0

19

Murray 071410MA

Spacer, Door

$7.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, only 4 left!

0

21

Murray 043618MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071132MA)

$36.99

$

In Stock, only 4 left!

0

--

Murray 071132MA

Wheel, Front - Gray

$36.99

$

In Stock, only 4 left!

0

22

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

$4.49

$

Usually ships in 2-12 days

0

24

Murray 71246E701

Transmission, Cover

$9.49

$

Usually ships in 2-12 days

0

25

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

27

Murray 43770E701MA

Cover, Belt

$35.99

$

Usually ships in 2-12 days

0

28

$4.49

$

In Stock, only 4 left!

0

29

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 401025MA

Height Adjuster, Front

$72.99

$

Usually ships in 2-12 days

0

31

$

$

Not available

32

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

33

Murray 401029MA

Height Adjuster, Left Rear

$21.99

$

Usually ships in 2-12 days

0

34

Murray 401028MA

Height Adjuster, Right Rear

$51.99

$

Usually ships in 2-12 days

0

36

Murray 16427

Spring, Extension

$

$

Currently unavailable

37

Murray 071549

Transmission

$

$

Currently unavailable

38

Murray 043649

Shield, Axle

$5.99

$

Usually ships in 2-12 days

0

39

Murray 0109X7

Nut, Special

$

$

Currently unavailable

40

Murray 17X186MA

Washer, Thrust

$

$

Not available

41

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

42

Murray 071286

Pinion, Right

$

$

Currently unavailable

43

Murray 071287

Pinion, Left

$

$

Currently unavailable

44

Murray 071032MA

Cover, Dust

$9.49

$

Usually ships in 2-12 days

0

45

Murray 043617

Wheel, Drive - White

$

$

Currently unavailable

--

Murray 071133MA

Wheel, Drive - Gray

$50.99

$

In Stock, only 2 left!

0

46

Murray 17X169MA

Washer, Thrust
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

47

$

$

Not available

48

$3.99

$

Usually ships in 2-12 days

0

49

Murray 070250MA

Bearing and Retainer

$34.99

$

Usually ships in 2-12 days

0

50

Murray 011X24MA

Ring, Retaining

$4.49

$

Usually ships in 2-12 days

0

51

$4.99

$

Usually ships in 2-12 days

0

52

Murray 015X88MA

Locknut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

53

$3.49

$

Usually ships in 2-12 days

0

54

Murray 071481 Z

Support, Spring

$

$

Currently unavailable

55

Murray 071480MA

Bushing

$3.99

$

Usually ships in 2-12 days

0

56

Murray 421

Screw

$

$

Currently unavailable

57

Murray 71245E701

Cover, Lower

$

$

Currently unavailable

$3.99

$

Usually ships in 2-12 days

0

59

Murray 71239E701MA

Cover, Front Belt
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

60

$12.99

$

Usually ships in 2-12 days

0

61

Murray 020062MA

Key, Woodruff
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

62

Murray 071250MA

Plug, Mulcher

$97.99

$

Usually ships in 2-12 days

0

--

Murray F-96417

Instruction Book

$

$

Currently unavailable
