21774 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 410999999) Engine and Blade Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

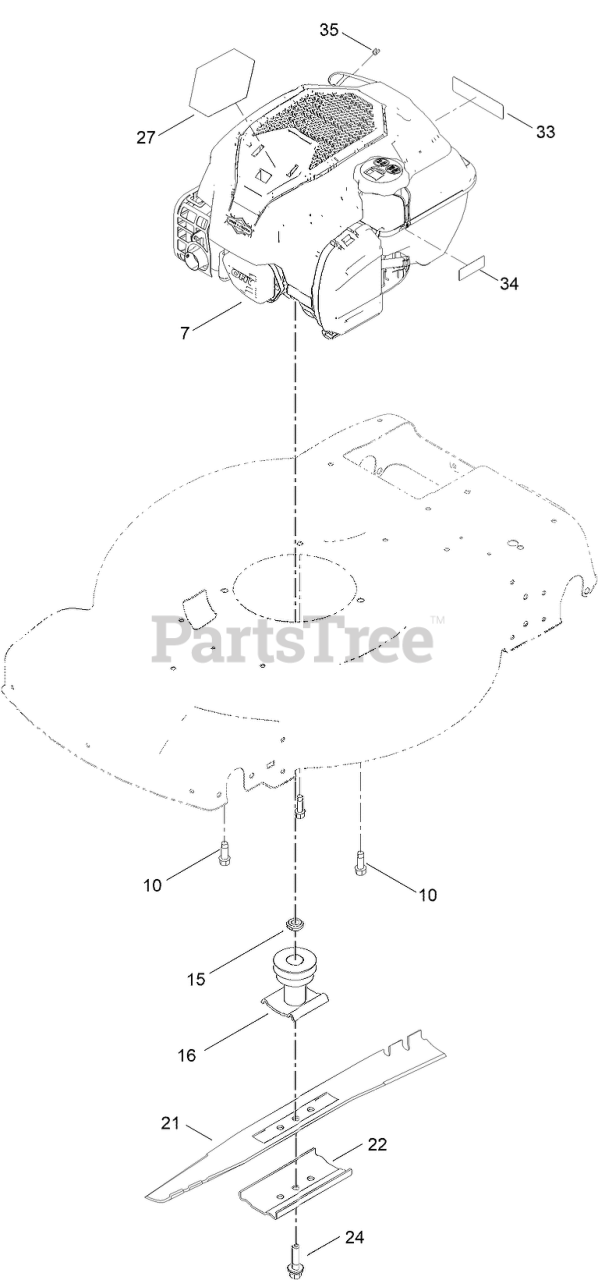

Engine and Blade Assembly Parts Diagram

  • Title

7

ENGINE-BRIGGS,104M020130F1

Note: Not serviced separately

$

$

Not available

7

ENGINE-BRIGGS,104M020130F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

Toro 121-5844

SCREW-THD FORM, HWH

$1.49

$

In Stock, only 3 left!

0

15

Toro 106-3999

SPACER-DRIVER

$3.49

$

In Stock, only 4 left!

0

16

Toro 130-6705

DRIVER-BLADE

$41.99

$

In Stock, only 1 left!

0

21

Toro 131-9683-03

BLADE

$31.99

$

In Stock, only 3 left!

0

22

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

24

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

27

Toro 145-1458

DECAL - BRIGGS 675 EXI SS

$

$

Currently unavailable

33

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

34

Toro 133-8198

DECAL-LEVEL, FUEL

$

$

Currently unavailable

35

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0
