21773 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 411000000 - 412999999) Handle Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

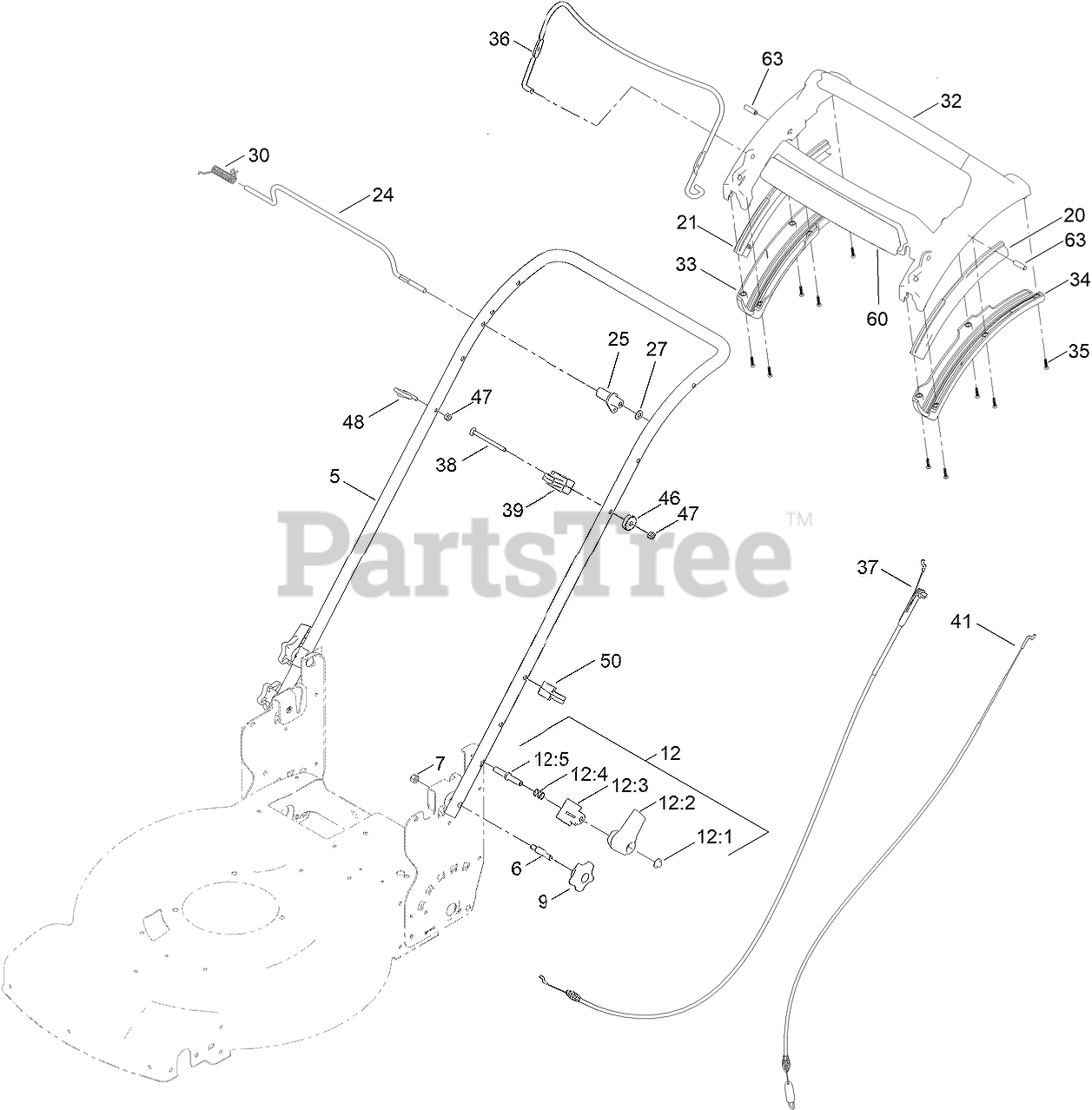

Handle Assembly Parts Diagram

  • Title
5

Toro 139-5458-05

HANDLE-CURVED

$49.99

$

In Stock, only 1 left!

0

6

Toro 139-6588

BOLT-SHOULDER, HANDLE

$1.99

$

In Stock, only 3 left!

0

7

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

9

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 11

0

12

Toro 138-3249

QUICK RELEASE ASM

$11.99

$

In Stock, only 1 left!

0

12:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

12:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 1 left!

0

12:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 1 left!

0

12:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

12:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

20

Toro 140-2367

GUIDE-CURVED, LH (RWD)

$5.99

$

In Stock, only 1 left!

0

21

Toro 140-2366

GUIDE-CURVED, RH (RWD)

$5.99

$

In Stock, only 1 left!

0

24

Toro 139-5464

ROD-CONTROL, TRACTION

$7.49

$

In Stock, only 1 left!

0

25

Toro 139-6554

LEVER-TRACTION, RWD

$2.99

$

In Stock, only 2 left!

0

27

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

30

Toro 140-4194

SPRING-TORSION

$1.99

$

In Stock, Qty 20+

0

32

Toro 139-6569

HANDLE-PERSONAL PACE, CURVED

$31.99

$

In Stock, Qty 11

0

33

Toro 139-6567

BOTTOM-HANDLE, RH

$3.99

$

In Stock, only 1 left!

0

34

Toro 139-6568

BOTTOM-HANDLE, LH

$3.99

$

In Stock, only 1 left!

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 140-4023-03

BAIL-BRAKE

$

$

Not available

37

Toro 139-6594

CABLE-BRAKE, PP BS

$15.99

$

In Stock, Qty 20+

0

38

Toro 144-0221

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

39

Toro 139-6581

ANCHOR-CABLE, RWD

$3.49

$

In Stock, Qty 11

0

41

Toro 139-6595

CABLE-TRACTION, RWD (PP)

$15.99

$

In Stock, Qty 20+

0

46

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, Qty 12

0

47

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

48

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

50

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

60

Toro 145-1459

DECAL - ADS, HANDLE

$11.99

$

Usually ships in 3-6 days

0

63

Toro 139-6577

PIN-HANDLE, PP

$1.49

$

In Stock, Qty 10

0
