21772 - Toro 55cm Recycler Walk-Behind Mower (SN: 411999881 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

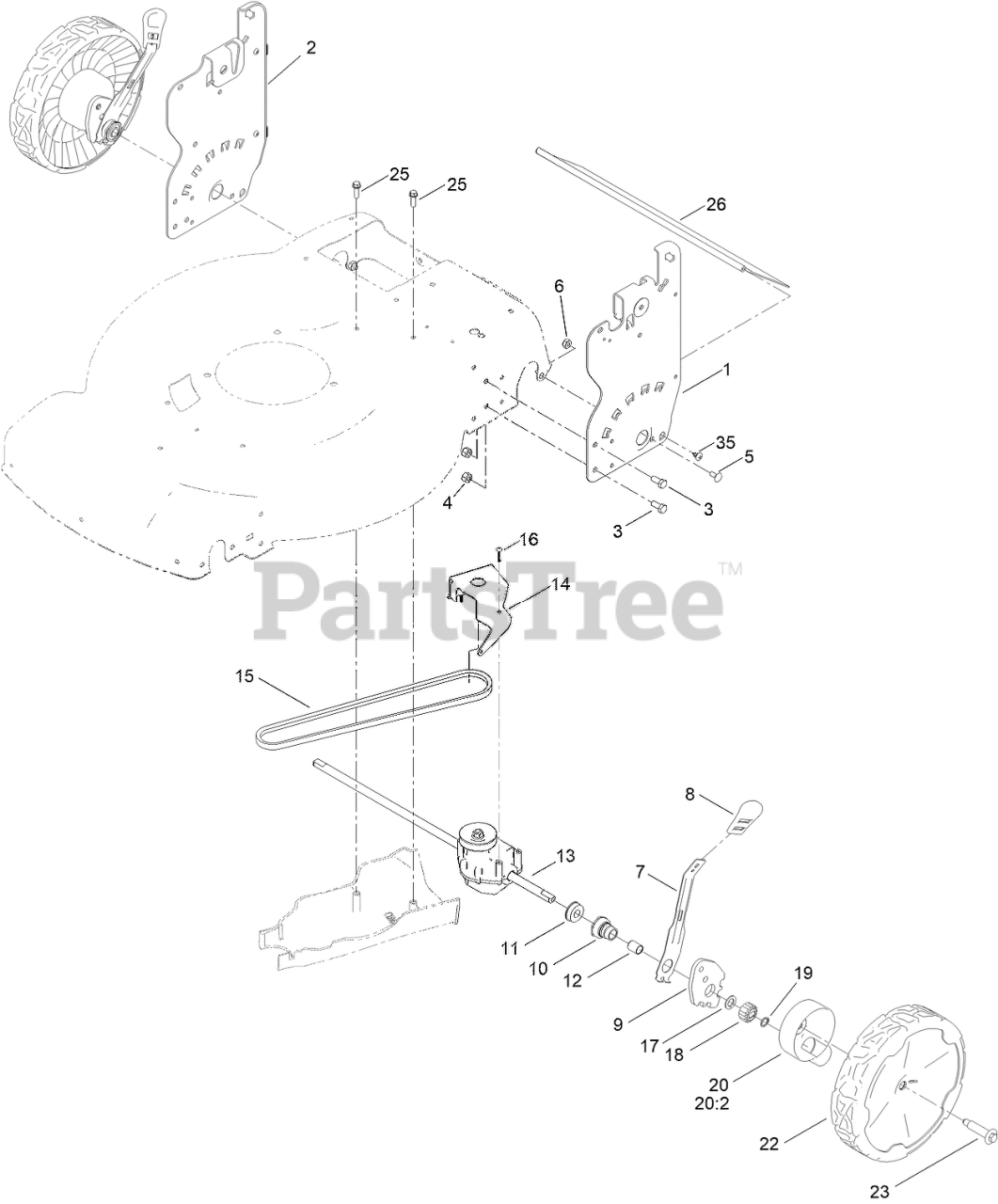

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title
1

Toro 145-5651-05

PLATE-HOC, LH (ISO)

$28.99

$

Usually ships in 3-6 days

0

2

Toro 145-5650-05

PLATE-HOC, RH (ISO)

$28.99

$

Usually ships in 3-6 days

0

3

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

5

Toro 100-1445

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 139-1724

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

7

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

8

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-5451

ARM-PIVOT, REAR

$12.99

$

In Stock, Qty 13

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, Qty 20+

0

11

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

12

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

13

Toro 139-6561

TRANSMISSION-RWD

$117.99

$

In Stock, only 2 left!

0

14

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

15

Toro 140-4041

V-BELT

$18.99

$

In Stock, Qty 20+

0

16

Toro 120-9676

SCREW-PLASTITE

$

$

Currently unavailable

17

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

19

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

20

Toro 140-2362

ASM-COVER, GEAR (DK GRAY)

$4.49

$

In Stock, Qty 16

0

20:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

22

Toro 140-2350

ASM-9.65" WHEEL, GEARED

$34.99

$

In Stock, Qty 20+

0

23

Toro 145-3899

WHEEL BOLT

$1.99

$

In Stock, Qty 20+

0

25

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 139-6597

SHIELD-TRAILING
(Superseded to 145-5821)

$19.99

$

In Stock, Qty 18

0

35

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0
