21772 - Toro 55cm Recycler Walk-Behind Mower (SN: 410000000 - 411999880) Engine and Blade Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

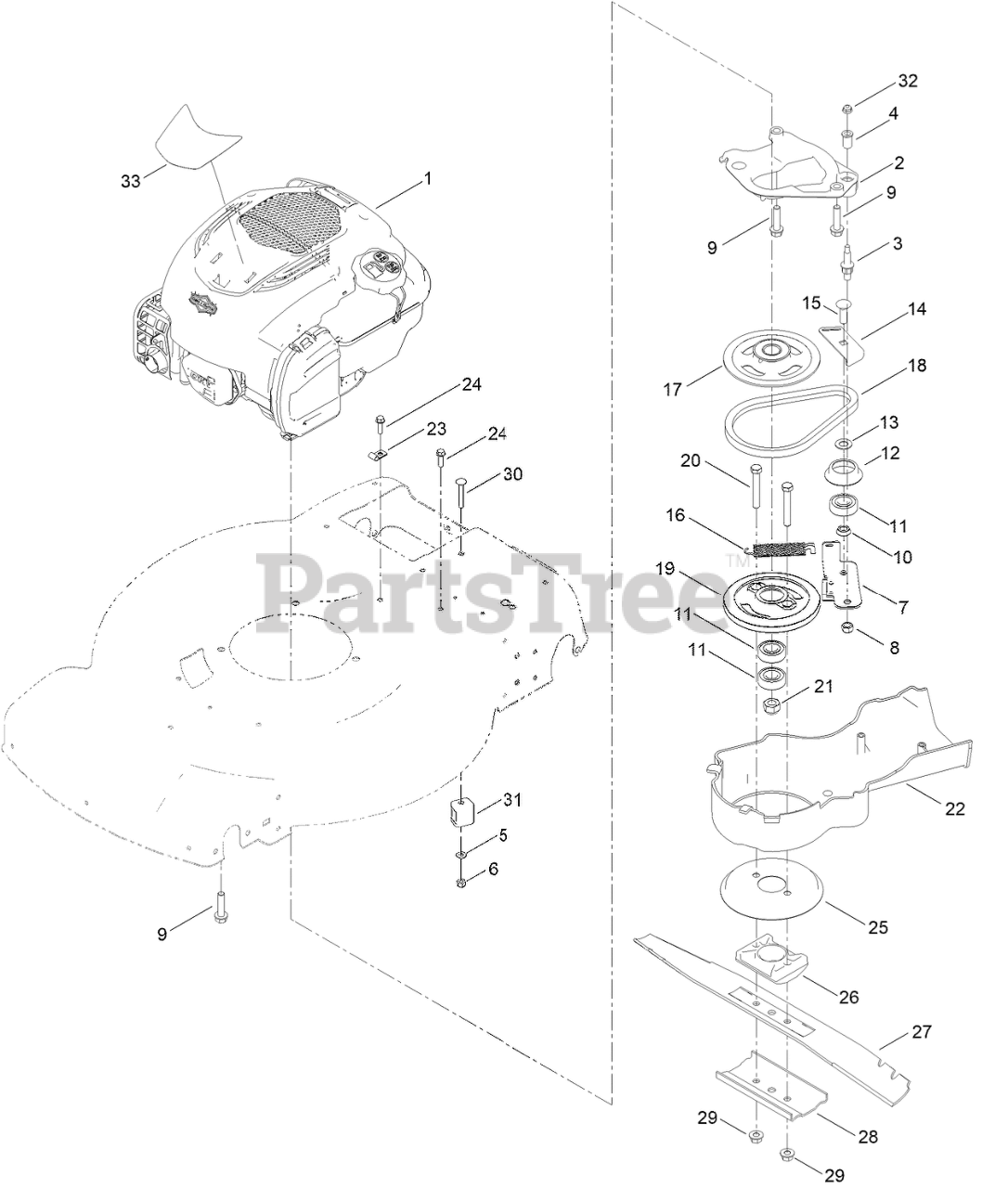

Engine and Blade Assembly Parts Diagram

  • Title
1

ENGINE-BRIGGS 104M020052F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS 104M020052F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 132-4469

PLATE-ANCHOR

$30.99

$

Usually ships in 3-6 days

0

3

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 16

0

4

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 9

0

5

Toro 139-1722

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

6

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

7

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 5

0

8

Toro 603773

LOCKNUT

$2.99

$

In Stock, only 4 left!

0

9

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

12

Toro 138-3217

RETAINER-BELT

$2.99

$

In Stock, Qty 20+

0

13

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

14

Toro 138-3222

PLATE-GUIDE

$3.49

$

In Stock, Qty 20+

0

15

Toro 119-4162

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 12

0

17

Toro 117-5970

PULLEY

$32.99

$

In Stock, only 1 left!

0

18

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

19

$54.99

$

In Stock, only 1 left!

0

20

Toro 139-1711

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

21

Toro 139-1705

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

22

$25.99

$

In Stock, only 1 left!

0

23

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

24

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

25

$12.99

$

In Stock, only 4 left!

0

26

Toro 107-7487

SUPPORT-BLADE

$21.99

$

In Stock, only 1 left!

0

27

$31.99

$

In Stock, only 3 left!

0

28

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

29

Toro 139-1706

NUT-FLANGE, LOCK

$3.99

$

Usually ships in 3-6 days

0

30

Toro 120-9698

BOLT-CARR

$0.99

$

In Stock, only 2 left!

0

31

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 8

0

32

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

33

Toro 145-1457

DECAL - BRIGGS 725 EX

$11.99

$

Usually ships in 3-6 days

0
