21768 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

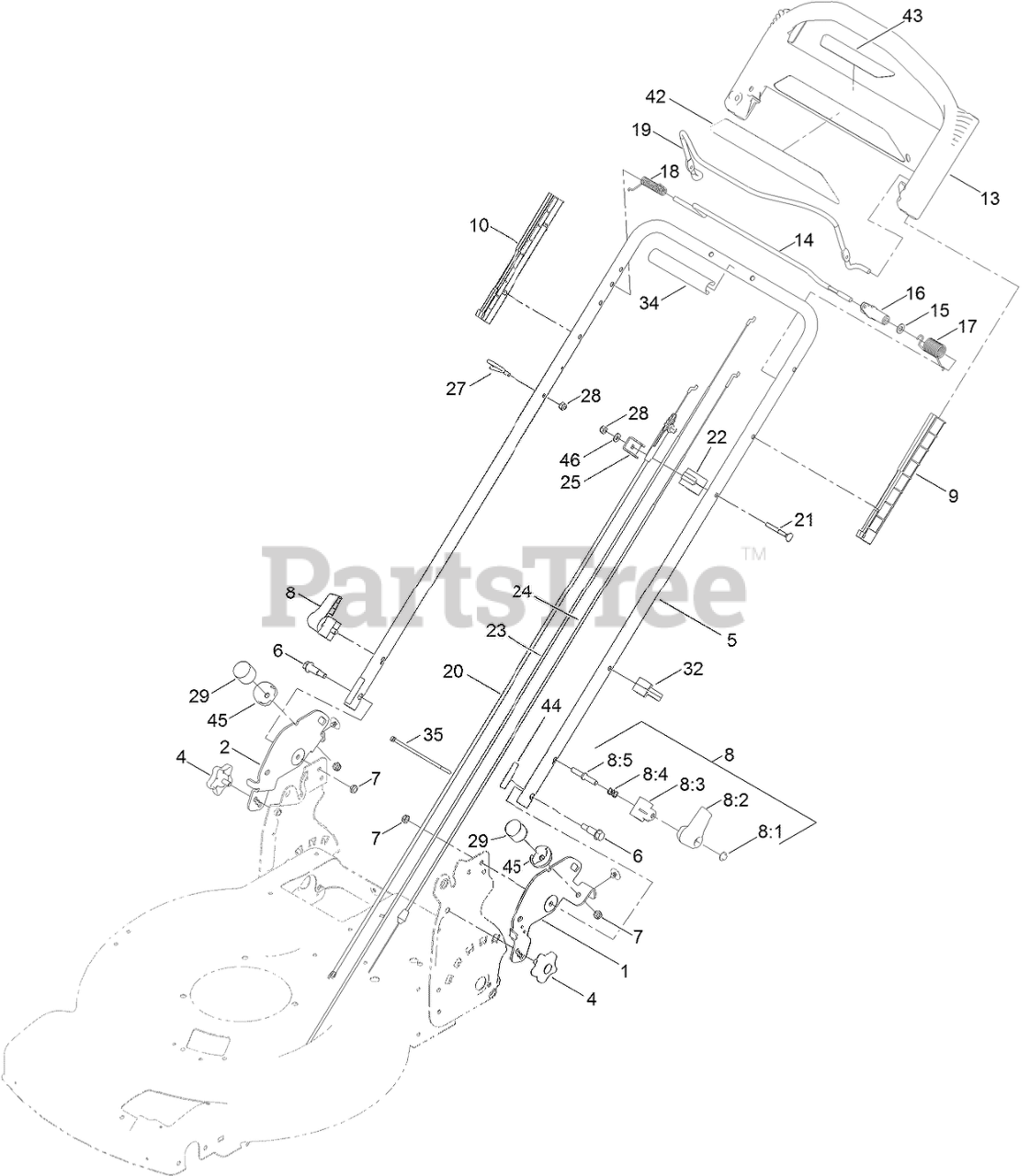

Handle Assembly Parts Diagram

  • Title

1

Toro 140-3831-03

BRACKET-FLOAT, LH

$15.99

$

Usually ships in 3-6 days

0

2

Toro 137-4838-03

BRACKET-FLOAT, RH

$15.99

$

Usually ships in 3-6 days

0

4

Toro 137-4844

KNOB-HANDLE

$2.49

$

In Stock, only 2 left!

0

5

Toro 140-3824-05

HANDLE-UPPER

$80.99

$

In Stock, only 2 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

In Stock, Qty 15

0

7

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

8

Toro 138-3249

QUICK RELEASE ASM

$11.99

$

In Stock, only 2 left!

0

8:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 2 left!

0

8:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

8:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

8:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 136-5879

GUIDE-LH

$8.99

$

Usually ships in 3-6 days

0

10

Toro 136-5880

GUIDE-RH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 136-5877

HANDLE-PACE, PERSONAL

$34.99

$

Usually ships in 3-6 days

0

14

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

15

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

16

Toro 136-5878

LEVER-TRACTION

$5.49

$

In Stock, only 2 left!

0

17

Toro 136-5883

SPRING-TORSION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

19

Toro 131-0880-03

BAIL-BRAKE

$25.99

$

In Stock, only 4 left!

0

20

Toro 115-8437

CABLE-BRAKE

$36.99

$

In Stock, Qty 20+

0

21

Toro 137-3108

SCREW-HANDLE

$4.49

$

Usually ships in 3-6 days

0

22

Toro 130-6716

MOUNT-CABLE, TRACTION

$3.99

$

Usually ships in 3-6 days

0

23

Toro 137-4814

CABLE-TRACTION, FRONT

$19.99

$

In Stock, only 2 left!

0

24

Toro 137-4815

CABLE-TRACTION, REAR

$19.99

$

In Stock, Qty 5

0

25

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

27

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

28

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

29

Toro 137-4803

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

32

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

34

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

35

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

42

Toro 136-9138

DECAL-POWEREVERSE

$6.99

$

Usually ships in 3-6 days

0

43

Toro 138-3278

DECAL-INSTRUCTION, DRIVE

$6.49

$

Usually ships in 3-6 days

0

44

Toro 140-3827

DECAL-FLEX

$1.49

$

Usually ships in 3-6 days

0

45

Toro 137-9100

COVER-BUMPER

$1.49

$

Usually ships in 3-6 days

0

46

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
