21767 - Toro 55cm Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

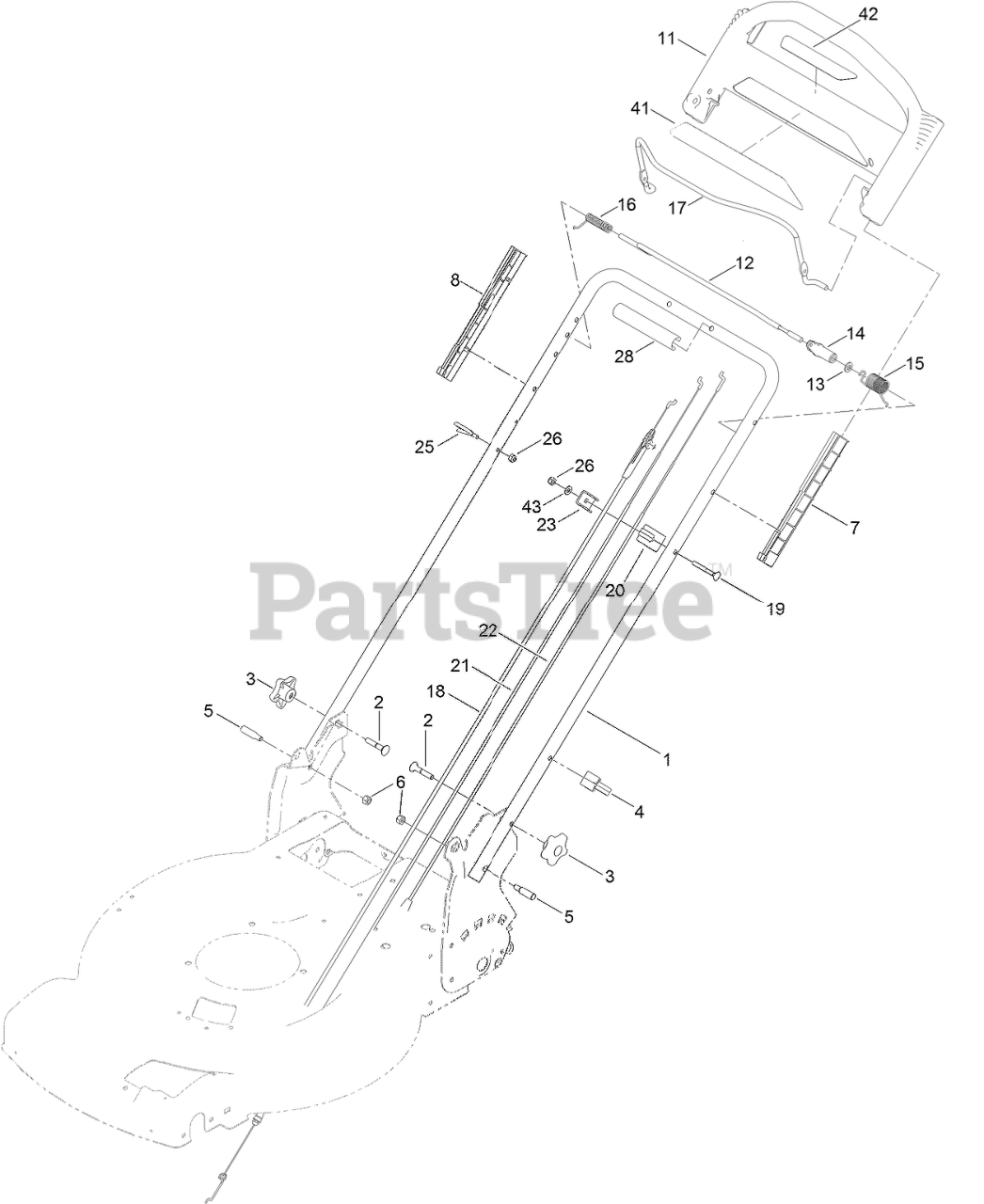

Handle Assembly Parts Diagram

  • Title

1

Toro 131-9695-05

HANDLE

$98.99

$

In Stock, only 1 left!

0

2

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

5

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

6

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

7

Toro 136-5879

GUIDE-LH

$8.99

$

Usually ships in 3-6 days

0

8

Toro 136-5880

GUIDE-RH

$8.99

$

Usually ships in 3-6 days

0

11

Toro 136-5877

HANDLE-PACE, PERSONAL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

13

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

14

Toro 136-5878

LEVER-TRACTION

$5.49

$

In Stock, only 1 left!

0

15

Toro 136-5883

SPRING-TORSION

$4.99

$

Usually ships in 3-6 days

0

16

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 6

0

17

Toro 131-0880-03

BAIL-BRAKE

$25.99

$

In Stock, only 1 left!

0

18

Toro 115-8437

CABLE-BRAKE

$36.99

$

In Stock, Qty 20+

0

19

Toro 137-3108

SCREW-HANDLE

$4.49

$

Usually ships in 3-6 days

0

20

Toro 130-6716

MOUNT-CABLE, TRACTION

$3.99

$

Usually ships in 3-6 days

0

21

Toro 136-5891

CABLE-TRACTION, FRONT

$18.99

$

Usually ships in 3-6 days

0

22

Toro 136-5892

CABLE-TRACTION, REAR

$18.99

$

In Stock, only 1 left!

0

23

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

25

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

26

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

28

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

41

Toro 136-9138

DECAL-POWEREVERSE

$6.99

$

Usually ships in 3-6 days

0

42

Toro 138-3278

DECAL-INSTRUCTION, DRIVE

$6.49

$

Usually ships in 3-6 days

0

43

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
