21765C - Murray 21" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

21" Walk-Behind Mower

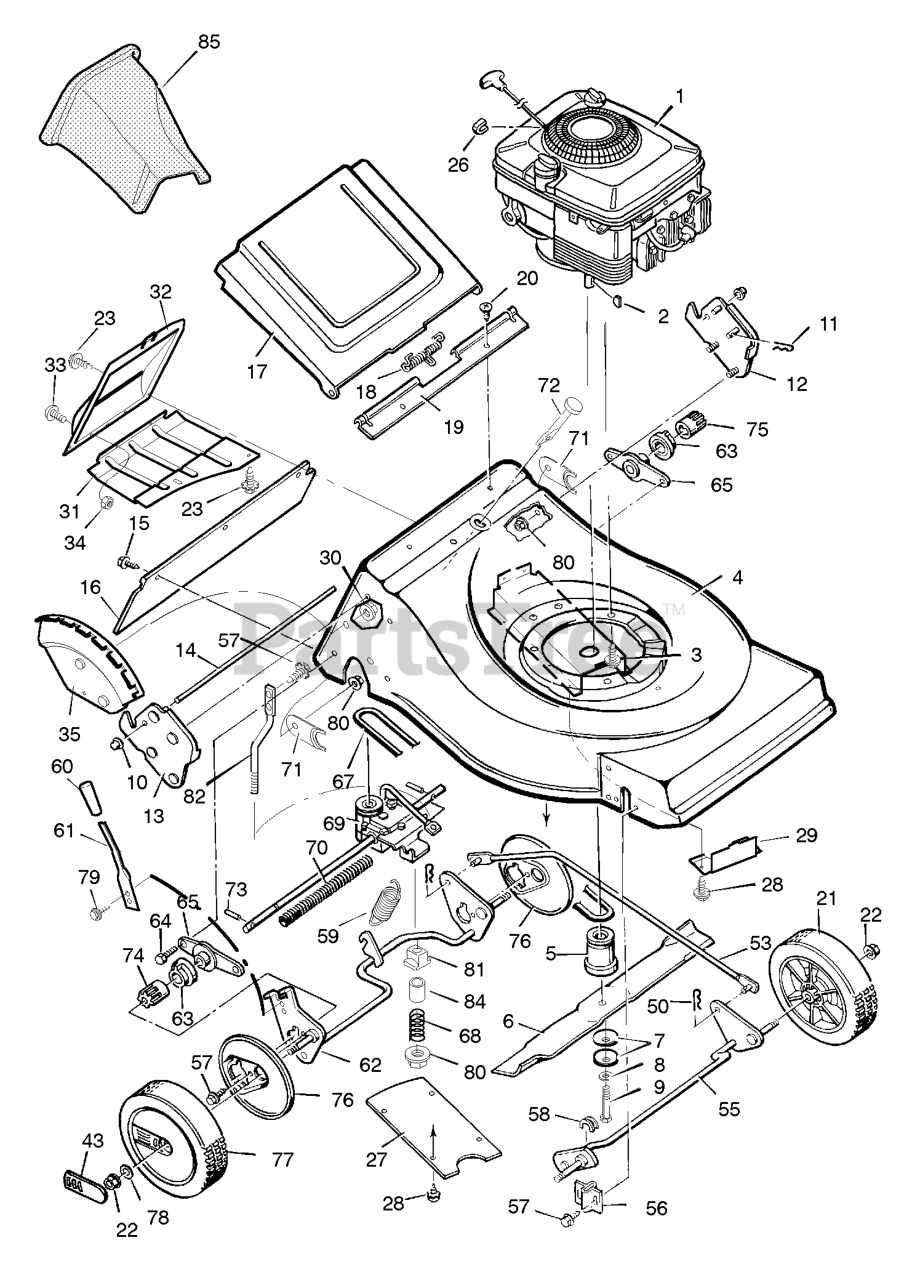

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

Murray 020062MA

Key, Woodruff
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 070146

Housing

$

$

Currently unavailable

5

Murray 071058

Adapter, Blade

$

$

Currently unavailable

$13.99

$

Usually ships in 2-12 days

0

7

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

8

$4.49

$

Usually ships in 2-12 days

0

$8.49

$

In Stock, only 2 left!

0

10

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

11

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

12

Murray 71097E701

Handle Bracket, Left

$

$

Currently unavailable

13

Murray 71096E701

Handle Bracket, Right

$

$

Currently unavailable

14

Murray 215X14 Z

Rod, Door Pivot

$

$

Currently unavailable

15

$4.49

$

In Stock, Qty 6

0

16

Murray 043640

Deflector, Rear

$

$

Not available

17

Murray 071409

Door, Rear

$66.99

$

Usually ships in 2-12 days

0

18

Murray 166X33MA

Spring, Torsion

$6.99

$

In Stock, only 1 left!

0

19

Murray 071410MA

Spacer, Door

$7.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, only 4 left!

0

21

Murray 043618MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071132MA)

$36.99

$

In Stock, only 4 left!

0

--

Murray 071132MA

Wheel, Front - Gray

$36.99

$

In Stock, only 4 left!

0

22

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

$4.49

$

Usually ships in 2-12 days

0

26

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

27

Murray 43770E701MA

Cover, Belt

$35.99

$

Usually ships in 2-12 days

0

28

$4.49

$

In Stock, only 4 left!

0

29

Murray 71239E701MA

Cover, Front Belt
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

30

Murray 015X79MA

Nut, Hex Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Murray 71245E701

Cover, Lower

$

$

Currently unavailable

32

Murray 71246E701

Cover, Rear

$9.49

$

Usually ships in 2-12 days

0

33

Murray 421

Screw

$

$

Currently unavailable

$3.99

$

Usually ships in 2-12 days

0

35

Murray 071575

Bracket, Index

$

$

Currently unavailable

43

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

50

UNKNOWN

$

$

Not available

53

Murray 43721E701

Link, Lifter

$

$

Currently unavailable

55

Murray 71152E701

Crossbar, Front

$

$

Currently unavailable

56

Murray 071167MA

Clip, Retainer

$9.99

$

Usually ships in 2-12 days

0

57

$3.49

$

Usually ships in 2-12 days

0

58

Murray 043731MA

Bushing

$3.99

$

Usually ships in 2-12 days

0

59

Murray 165X97

Spring, Extension

$

$

Currently unavailable

60

Murray 071297MA

Grip, Height Adjuster

$6.49

$

In Stock, only 1 left!

0

61

Murray 071293MA

Lever, Height Adjuster
(Superseded to 672278MA)

$12.99

$

Usually ships in 2-12 days

0

62

Murray 71572

Crossbar, Rear

$

$

Currently unavailable

63

Murray 043788MA

Bearing, Lifter

$4.99

$

In Stock, only 2 left!

0

64

Murray 001X91MA

Bolt, Hex
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

65

Murray 071411MA

Support, Axle

$9.49

$

Usually ships in 2-12 days

0

67

Murray 037X64A

Belt, Drive

$

$

Currently unavailable

68

Murray 16427

Spring

$

$

Currently unavailable

69

Murray 071549

Transmission TIM .50

$

$

Currently unavailable

70

Murray 043649

Shield, Axle

$5.99

$

Usually ships in 2-12 days

0

71

Murray 071482 Z

Retainer, Bearing

$

$

Currently unavailable

72

Murray 071576

Support, Lifter Spring

$

$

Currently unavailable

73

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

74

Murray 071286

Pinion, Right

$

$

Currently unavailable

75

Murray 071287

Pinion, Left

$

$

Currently unavailable

76

Murray 043616

Cover, Dust

$

$

Currently unavailable

77

Murray 043617

Wheel, Drive - White

$

$

Currently unavailable

--

Murray 071133MA

Wheel, Drive - Gray

$50.99

$

In Stock, only 2 left!

0

78

Murray 17X169MA

Washer, Thrust
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

79

$4.99

$

In Stock, only 1 left!

0

80

Murray 015X88MA

Locknut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

81

Murray 071480MA

Bushing

$3.99

$

Usually ships in 2-12 days

0

82

Murray 071481 Z

Support, Spring

$

$

Currently unavailable

84

$12.99

$

Usually ships in 2-12 days

0

85

Murray 071250MA

Plug, Mulcher

$97.99

$

Usually ships in 2-12 days

0

--

Murray F-96431

Book, Instruction

$

$

Currently unavailable
