21761 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 409000000 - 999999999) Frame Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

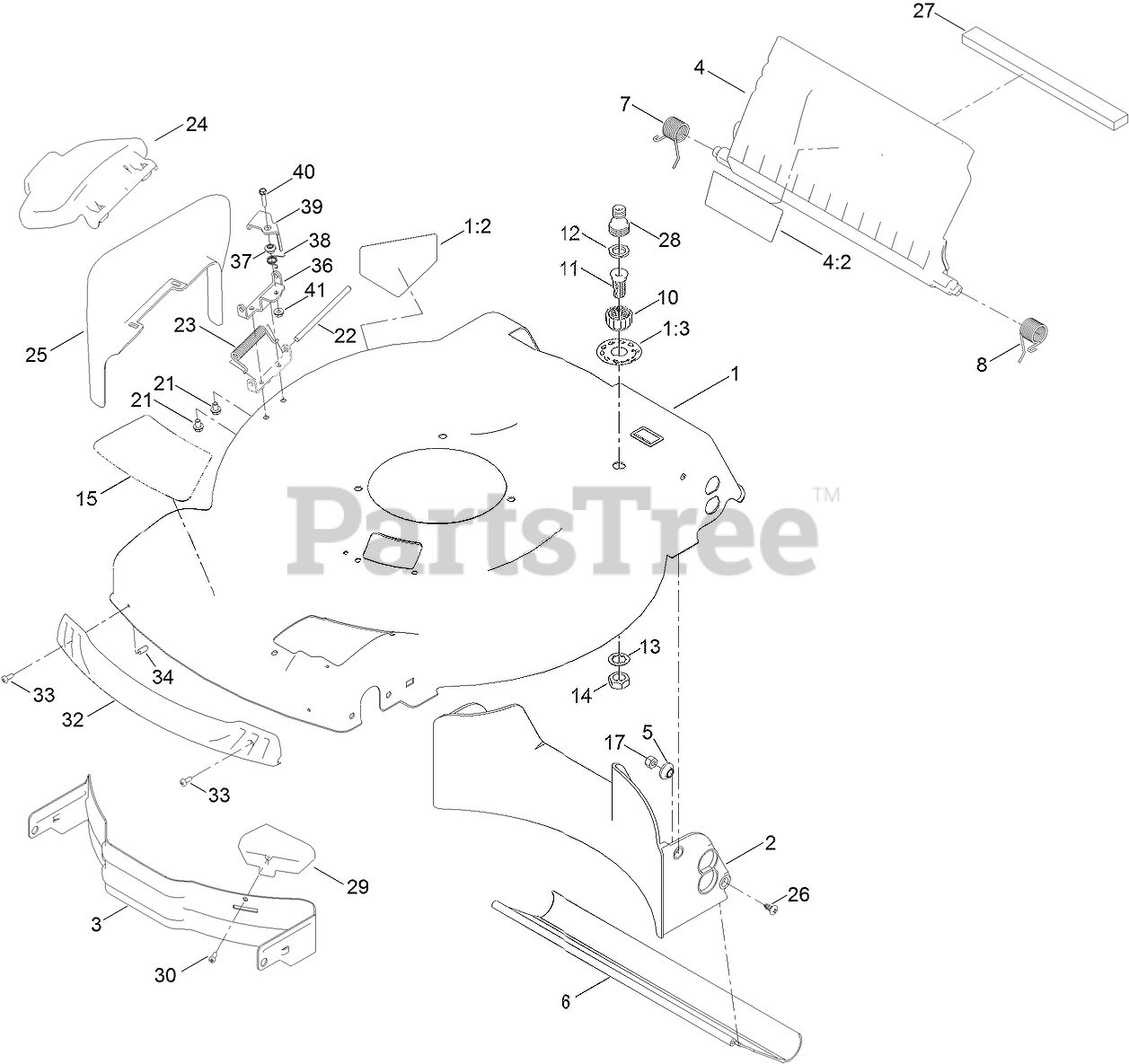

Frame Assembly Parts Diagram

  • Title
1

Toro 136-7053

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 137-9196

DECAL-QUICK WASH

$2.49

$

In Stock, only 2 left!

0

2

Toro 120-5218

BAFFLE-REAR

$29.99

$

In Stock, Qty 12

0

3

Toro 115-4667-01

BAFFLE-FRONT

$25.99

$

Usually ships in 3-6 days

0

4

Toro 136-7003

REAR DEFLECTOR ASM

$26.99

$

In Stock, only 3 left!

0

4:2

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

5

Toro 117-5991

WASHER-STEPPED, BAFFLE

$1.49

$

In Stock, Qty 8

0

6

Toro 115-8420

SHIELD-TRAILING
(Superseded to 144-6431)

$15.99

$

In Stock, Qty 7

0

7

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

8

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

10

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

11

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

12

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

13

Toro 139-1721

WASHER-LOCK, INT TOOTH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

15

Toro 131-9679

DECAL-DECK

$

$

Currently unavailable

17

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

21

$1.49

$

In Stock, Qty 20+

0

22

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

23

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

24

Toro 138-5316

DEFLECTOR-DISCHARGE, SIDE

$7.99

$

Usually ships in 3-6 days

0

25

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 6

0

26

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0

27

Toro 117-5924

FOAM-SEAL

$2.99

$

In Stock, only 1 left!

0

28

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

29

Toro 115-4672

KICKER-FRONT

$11.99

$

Usually ships in 3-6 days

0

30

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 114-7987

BUMPER

$12.99

$

In Stock, only 1 left!

0

33

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

34

Toro 130-6660

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

36

Toro 138-3293

BRACKET-LOCKOUT

$4.49

$

Usually ships in 3-6 days

0

37

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

38

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

39

Toro 138-3292

LEVER-LOCKOUT

$2.99

$

Usually ships in 3-6 days

0

40

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

41

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

0
