2176 (13A-274G100) - Cub Cadet Garden Tractor Seat And Support Parts Diagram

Garden Tractor

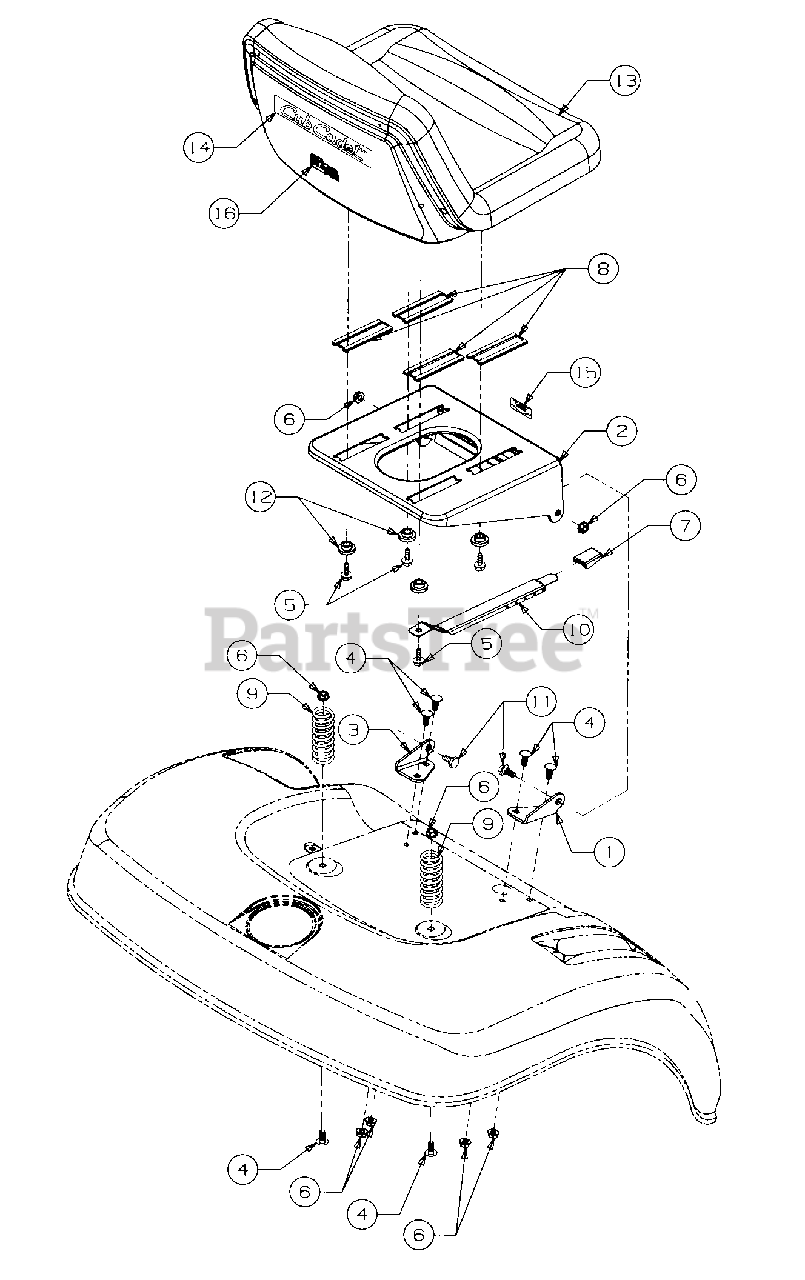

Seat And Support Parts Diagram

  • Title

1

Cub Cadet 703-2394-0716

Bracket, RH Seat Pivot

$

$

Not available

2

Cub Cadet 703-2395-0716

Seat, Base
(Superseded to 703-2395B-0716)

$120.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2477-0716

Bracket, LH Seat Pivot

$

$

Not available

4

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260

Screw, Wsh Hd Tap, 5-16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 720-0190

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

9

Cub Cadet 732-3080

Spring, Comp, 1.9 OD x 2.4 Lg
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 12

0

10

Cub Cadet 732-3098

Adjuster, Seat

$

$

Not available

11

Cub Cadet 738-0140

Bolt, Shoulder

$5.99

$

In Stock, Qty 15

0

12

Cub Cadet 738-0372

Spacer, Shoulder
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 757-3003

Seat, Medium Back
(Superseded to 759-04299)

$

$

Not available

14

Cub Cadet 777D04541

Graphic, Seat Back

$

$

Not available

15

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

16

Cub Cadet 777D01782

Graphic, Made in USA

$

$

Not available
