2176 (13A-274G100) - Cub Cadet Garden Tractor Fender And Running Board Parts Diagram

Garden Tractor

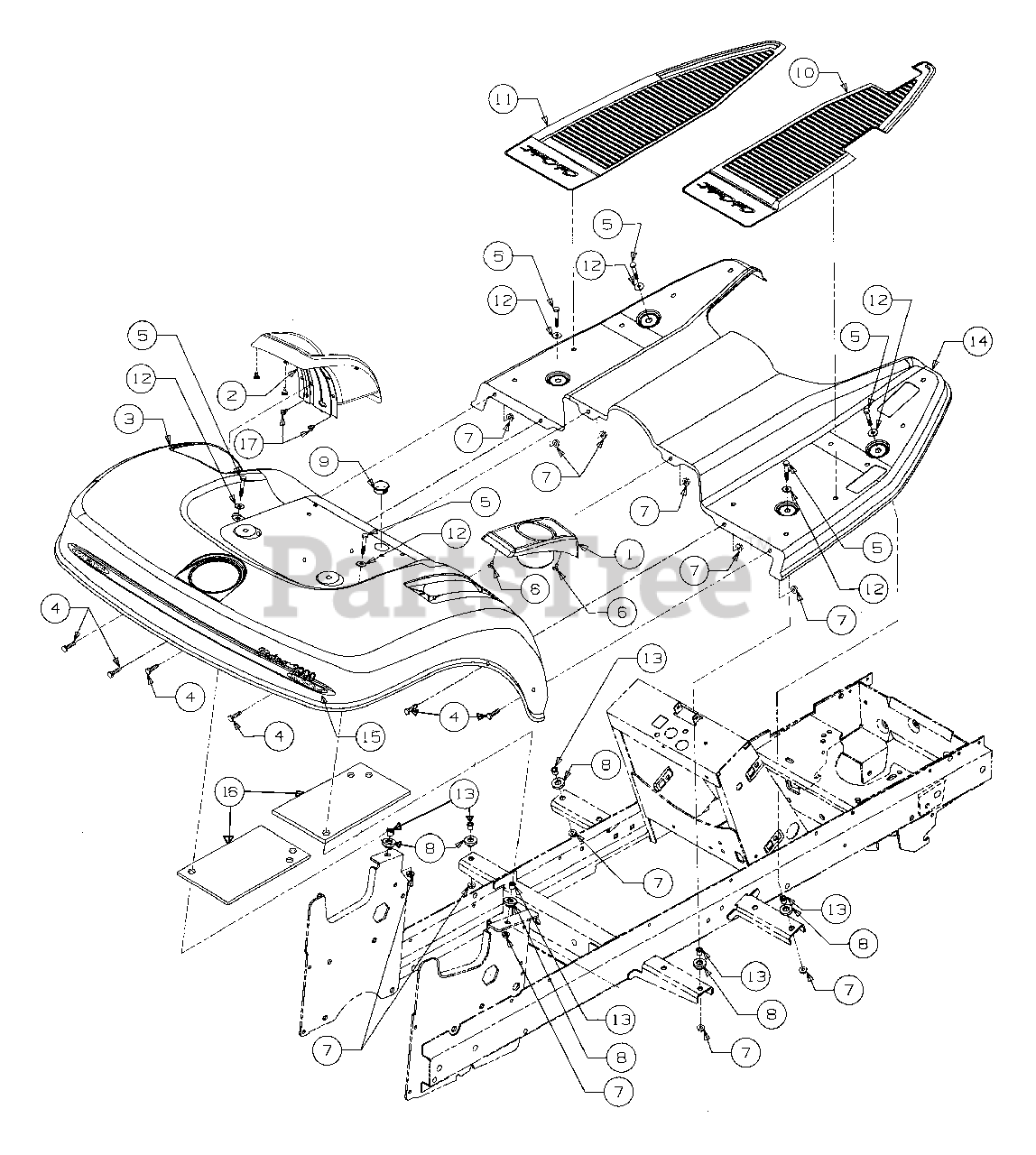

Fender And Running Board Parts Diagram

  • Title

1

Cub Cadet 731-3212

Cup Holder
(Superseded to 731-3212A)

$

$

Not available

2

Cub Cadet 631-3002

Cover, Implement Lift

$68.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2278B-0716

Fender

$

$

Currently unavailable

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-1268

Screw, Hex Tapp, #10 x .38 Lg

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 722-0258

Grommet, Insulator
(Superseded to 922-0258)

$

$

Not available

9

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 735-3046A

Pad, RH Foot

$

$

Not available

11

Cub Cadet 735-3047

Pad, LH Foot

$53.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-3090

Washer, Flat, .255 x .72 x .06

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-3169

Spacer, .28 ID x .40 OD x .42 Lg
(Superseded to 950-3169)

$10.99

$

In Stock, Qty 6

0

14

Cub Cadet 703-2279-0716

Running Board w/Graphic

$

$

Not available

Cub Cadet 777S30170

Graphic, Warning

$25.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 777D04791

Graphic, Rear Fender

$

$

Not available

16

Cub Cadet 703-2628-0716

Bracket, Fender Reinforcement
(Superseded to 703-2628-4021)

$

$

Not available

17

Cub Cadet 710-0224

Screw, Hex Tapp, #10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0
