2176 (13A-274G100) - Cub Cadet Garden Tractor Engine Mounting And Muffler Parts Diagram

Garden Tractor

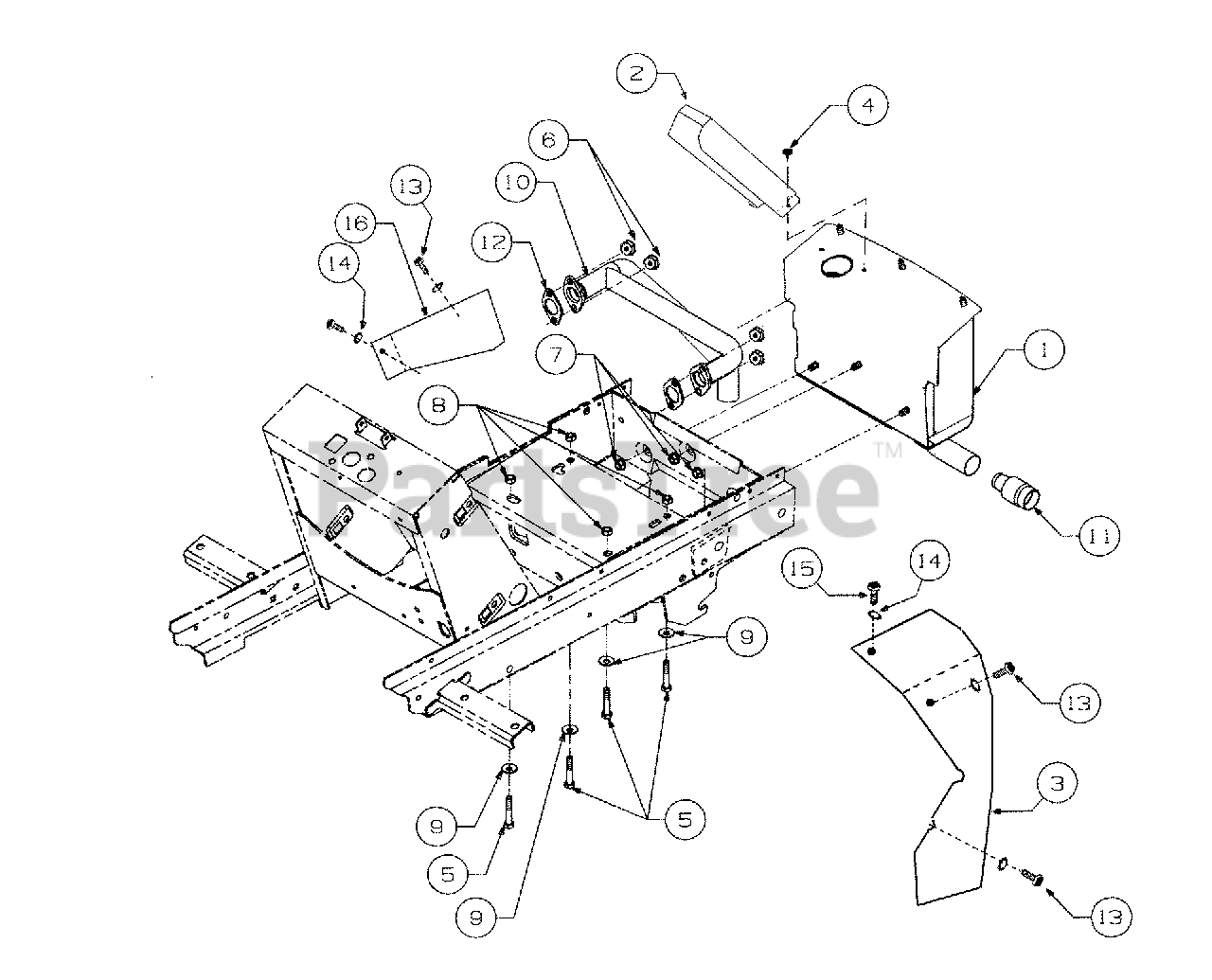

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 651-3001

Muffler Assembly
(Superseded to 951-3001P)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3099

Sheild, Muffler Tube
(Superseded to 703-3099A)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2632

Baffle, RH Heat
(Superseded to 703-2632-0637)

Variations

Cub Cadet 703-2632-0637

BAFFLE R/H-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-1268

Screw, Hex Wsh Hd Tap, #10-16 x .38

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0539

Bolt, Eng Mount, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet KH-M-0841080

Nut, Hex Flange
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0654

Tube, Exhaust

$170.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

12

Cub Cadet KH-24-041-02

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$

$

Not available

13

Cub Cadet 710-3209

Screw, Hex Cap, M6 x 1 x 10

$8.49

$

In Stock, Qty 13

0

14

Cub Cadet 736-0142

Washer, Flat, .281 x .5 x .06

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 710-0351

Screw, Truss Hd Tapp, #10 x .5

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 703-2631

Baffle, LH Heat
(Superseded to 703-2631-0637)

Variations

Cub Cadet 703-2631-0637

BAFFLE L/H-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$
