2176 (13A-274G100) - Cub Cadet Garden Tractor Crankcase Parts Diagram

Garden Tractor

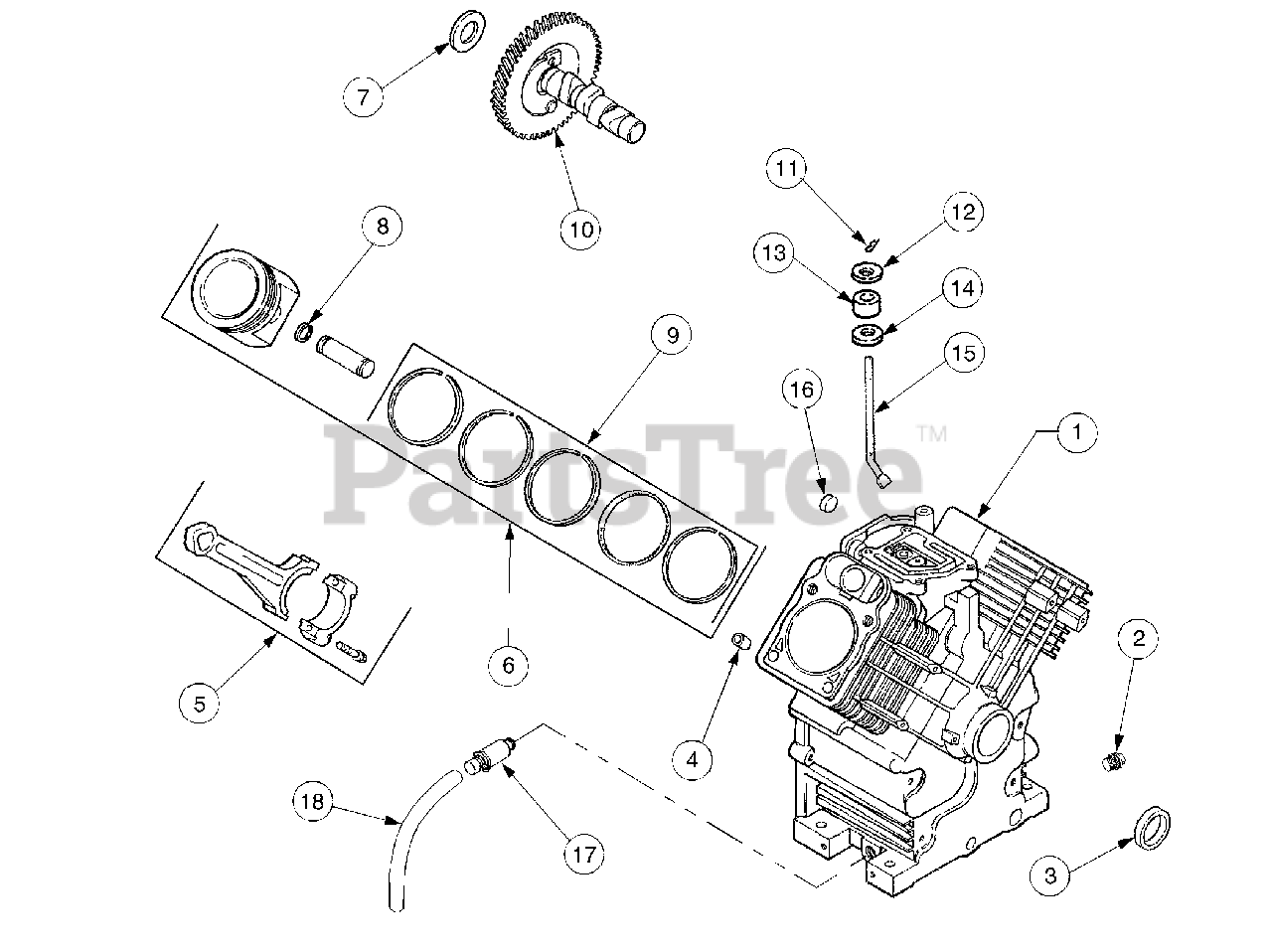

Crankcase Parts Diagram

  • Title

Cub Cadet KH-62601

Complete Engine
(Superseded to KH-PA-62601)

$

$

Not available

Cub Cadet KH-54-522-10

Short Block (6mm)
(Superseded to KH-24-522-180)

$

$

Not available

Cub Cadet KH-24-522-180

Short Block (8mm)

$

$

Not available

1

Cub Cadet KH-24-782-01

Cylinder Block, (Miniblock) (6mm)
(Superseded to KH-24-782-15)

$

$

Not available

Cub Cadet KH-24-782-15

Cylinder Block, (Miniblock) (8mm)

$

$

Not available

2

Cub Cadet KH-X-75-10

Plug, Hex Hd, 3/8
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-032-01

Seal, Front Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-12-380-17

Pin, Locating Dowel
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-13

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

Cub Cadet KH-24-067-14

Rod, Connection, .010 / .25mm

$

$

Not available

6

Cub Cadet KH-24-874-01

Piston w/Ring Set, Std
(Superseded to KH-24-874-46-S)

$

$

Not available

Cub Cadet KH-24-874-02

Piston w/Ring Set, .010 / .25mm
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-03

Piston w/Ring Set, .020 / .50mm
(Superseded to KH-24-874-49-S)

$

$

Not available

Cub Cadet KH-24-874-14-S

Piston w/Ring Set, .08mm
(Superseded to KH-24-874-47-S)

$

$

Not available

7

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320 (Red)
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400 (Black)
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280 (White)
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300 (Blue)
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340 (Yellow)
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360 (Green)
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380 (Gray)
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-108-01

Ring Set, Std
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-02

Ring Set, .010 / .25mm
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-03

Ring Set, .020 / .50mm
(Superseded to KH-24-108-25-S)

$

$

Not available

10

Cub Cadet KH-24-012-10-S

Camshaft Assembly
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-12-380-04

Pin, Hitch (6mm)

$

$

Not available

Cub Cadet KH-24-018-09

Ring, Retainer (8mm)

$

$

Currently unavailable

12

Cub Cadet KH-M-0631005

Washer, Plain (6mm)
(Superseded to KH-M-631005)

$

$

Not available

Cub Cadet KH-M-931010

Washer, Nylon (Top) (8mm)

$

$

Currently unavailable

13

Cub Cadet KH-12-032-01

Seal, Gov. Cross Shaft (6mm)

$

$

Not available

Cub Cadet KH-28-032-09

Seal, Gov. Cross Shaft (8mm)

$

$

Currently unavailable

14

Cub Cadet KH-X-25-102

Washer (Bottom) (6mm)
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 5

0

Cub Cadet KH-24-468-15

Washer (Bottom) (8mm)

$

$

Currently unavailable

15

Cub Cadet KH-24-144-01

Shaft, Gov. Cross (6mm)

$

$

Not available

Cub Cadet KH-24-144-33

Shaft, Gov. Cross (8mm)

$

$

Currently unavailable

16

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 14

0

18

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

Cub Cadet KH-24-755-107

Gasket Set

$

$

Currently unavailable
