21757S - MTD Tiller (1985) Tiller Parts Diagram

Tiller

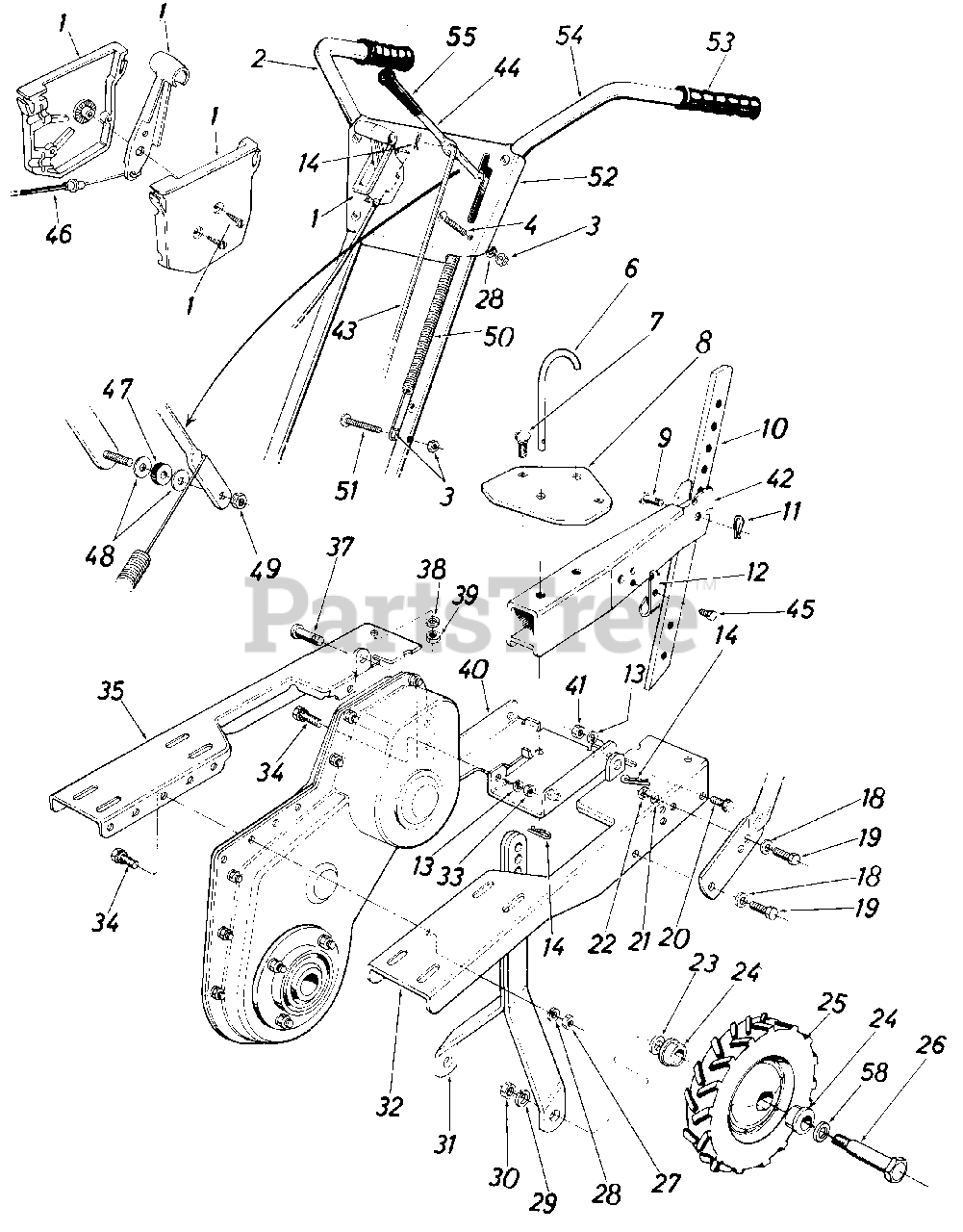

Tiller Parts Diagram

  • Title

1

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

2

MTD 749-0292

Handle Bar R.H.

$

$

Currently unavailable

3

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

6

MTD 04602

"U" Clevis Pin .500" Dia.

$

$

Not available

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 04566

"U"-Channel Plate

$

$

Currently unavailable

9

MTD 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

10

MTD 04668

Depth Bar

$

$

Not available

11

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

12

MTD 732-0322

Depth Bar Spring

$

$

Currently unavailable

13

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 714-0145

Int. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Belleville Wash. 3/8 I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0118

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0169

L-Wash. 3/8 Scr.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

MTD 736-0253

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

24

MTD 741-0116

Flange Brg. w/Flats .631 I.D.

$

$

Not available

25

MTD 734-0867

Wheel Ass'y.
(Superseded to 753-04874)

Note: (10 x 1.75)

$58.99

$

In Stock, only 1 left!

0

26

MTD 738-0318

Shld. Scr. .625" Dia. x 2.75" Lg.

Note: (1/2-20 Thd.)

$

$

Not available

27

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 6

0

30

MTD 712-0239

Hex ent. L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

31

MTD 06813

Wheel Brk't. Ass'y.

$

$

Not available

32

MTD 06792

Engine "U" Channel Ass'y. L.H.

$

$

Currently unavailable

33

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0322

Hex Sems Scr. 5/1i-18 x 1.00" Lg.

$

$

Not available

35

MTD 06794

Engine "U" Channel Ass'y. R.H.

$

$

Not available

37

MTD 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 06816

"U" Channel Brk't. Ass'y.

$

$

Currently unavailable

41

MTD 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 04589

Tailpiece Ass'y.

$

$

Not available

43

MTD 747-0183

Control Rod

$

$

Currently unavailable

44

MTD 747-0182

Clutch Lever

$

$

Not available

45

MTD 710-0599

Thd. Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

47

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

48

MTD 736-0159

Fl-Wash. .344 I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

50

MTD 732-0191

Extension Spring

$

$

Not available

51

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

52

MTD 784-0040

Handle Panel Ass'y.

$

$

Not available

53

MTD 720-0180

Grip Handle
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

54

MTD 749-0291

Handle Bar L.H.

$

$

Not available

55

MTD 720-0143

Grip

$

$

Not available

58

MTD 736-0290

Fl-Wash. .63" I.D. x 1.0" O.D.

$6.99

$

In Stock, Qty 20+

0
