21755x19D - Murray 21" Walk-Behind Mower (1996) Bag Assembly Parts Diagram

21" Walk-Behind Mower

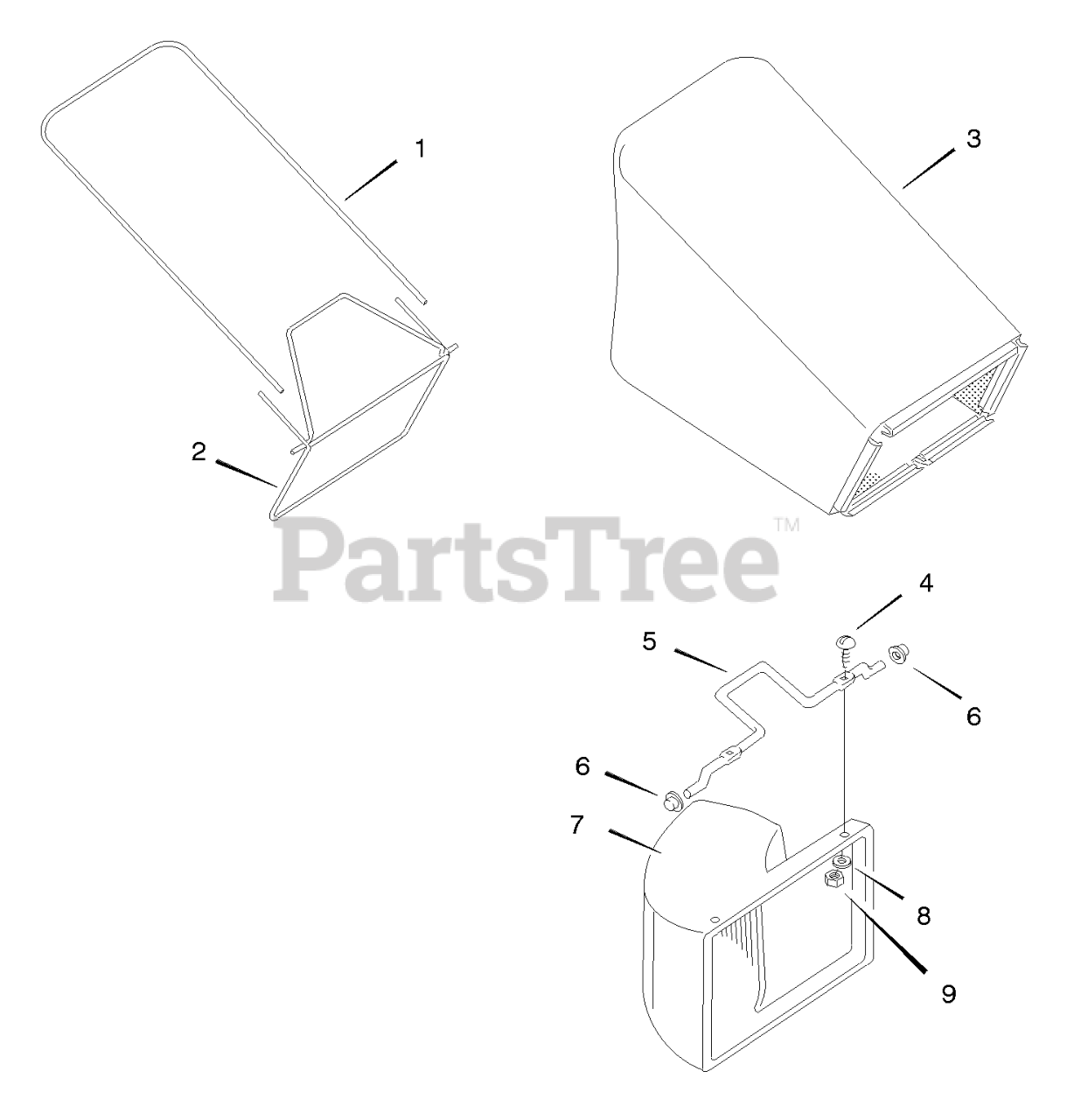

Bag Assembly Parts Diagram

  • Title
1

Murray 071592MA

Support, Bag

$

$

Not available

2

Murray 043666

Frame Assembly

$

$

Currently unavailable

3

Murray 071589MA

Bag, Cloth

$128.99

$

In Stock, only 1 left!

0

4

$3.99

$

Usually ships in 2-12 days

0

5

Murray 043755 Z

Frame Assembly

$

$

Currently unavailable

6

Murray 028X39MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

7

Murray 043754

Side Discharge Attachment -

Note: Optional; Model 24072A Side Discharge Attachment. This optional accessory gives you the option of discharging the grass to the side.

$

$

Currently unavailable

8

Murray 17X173

Washer

$1.49

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0
