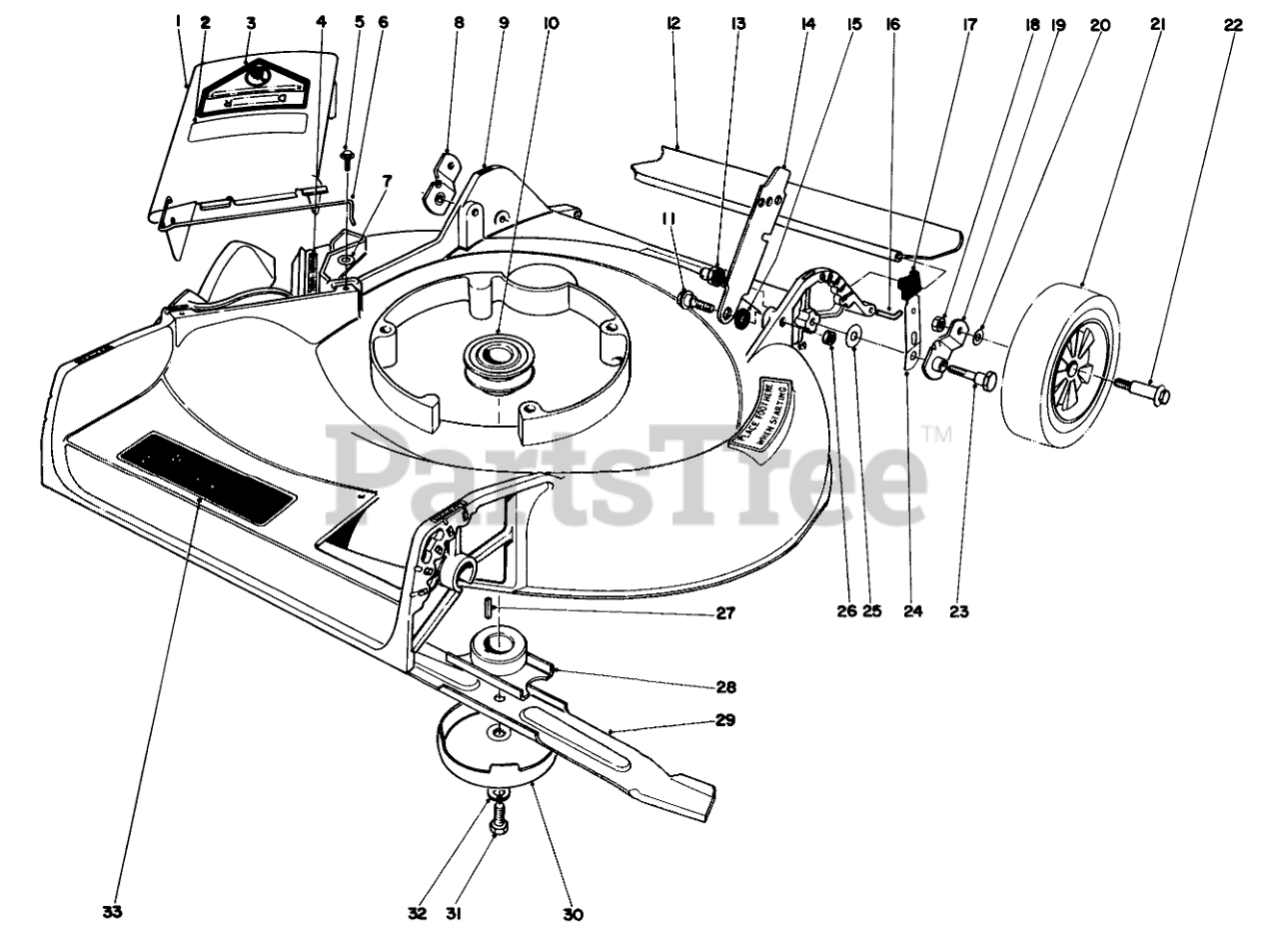

21738 - Toro Whirlwind Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 27-7810

Deflector Cover Assembly (Incl. Ref. #2, 3 & 6)
(Superseded to 13-4049)

$

$

Not available

2

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Toro 22-7350

Decal

$

$

Not available

5

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

6

Toro 20-2640

SPRING HINGE

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

9

Toro 8-7959

Housing

$

$

Not available

10

Toro 21-5580

DRIVER PULLEY

$

$

Not available

11

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

15

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

16

Toro 33-3201

SHIELD ROD

$

$

Not available

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

22

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

23

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

24

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

25

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

26

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

28

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

29

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

30

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

Usually ships in 3-6 days

0

31

Toro 3-5246

SPECIAL SCREW

$

$

Not available

32

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

33

Toro 44-0440

Decal-Side Discharge

$

$

Not available

Toro 8-9939

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
