21738 - Toro Whirlwind Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

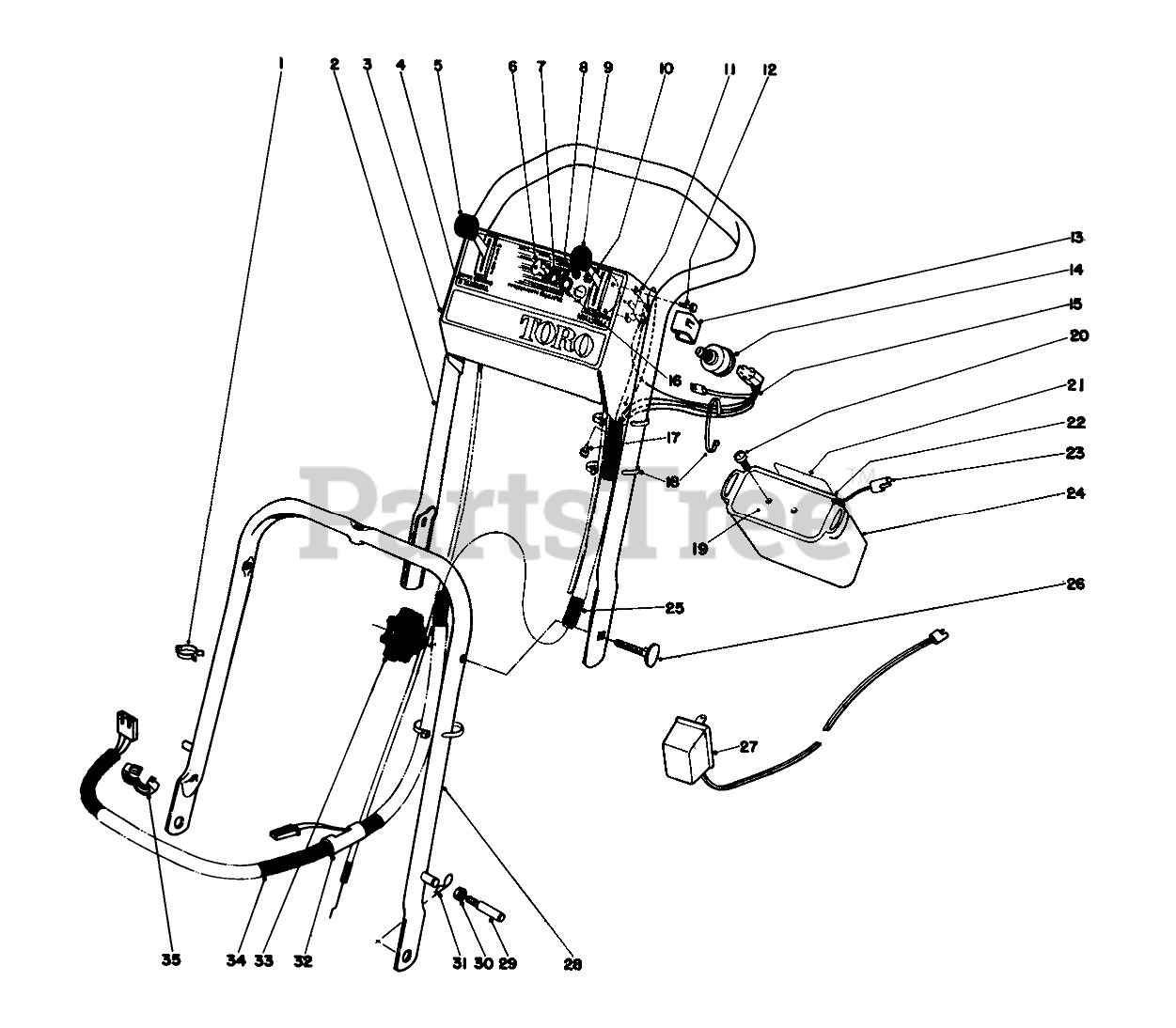

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$316.99

$

Usually ships in 3-6 days

0

3

Toro 21-5160

Control Plate

$

$

Not available

4

Toro 26-2220

Decal Control Plate

$

$

Not available

5

Toro 33-2546

Control Throttle
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

9

Toro 33-2552

Traction Control
(Superseded to 46-6040)

$

$

Not available

10

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 24-9760

CONTROL SWITCH

$112.99

$

Usually ships in 3-6 days

0

12

Toro 3290-124

SCREW-HH

$

$

Not available

13

Toro 25-1590

Cover Switch

$

$

Not available

14

Toro 23-0660

SWITCH-STARTER

$23.99

$

Usually ships in 3-6 days

0

15

Toro 25-0090

Wire Harness

$

$

Not available

16

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 39-0630

BATTERY COVER

$

$

Not available

20

Toro 32104-29

10-190X1/2 PAN HD SCR

$

$

Not available

21

Toro 36-5380

Decal

$

$

Not available

22

Toro 38-4180

Battery Assembly (Incl. Ref. #19-21 & 23-24)
(Superseded to 99-5262)

$

$

Not available

23

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

24

Toro 39-0640

Battery Case

$

$

Not available

25

Toro 25-5650

Cover Wiring Harnes Upper

$

$

Not available

26

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

27

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

28

Toro 42-1480

LOWER HANDLE ASM

$

$

Not available

29

Toro 17-9380

HANDLE PIN

$

$

Not available

30

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

31

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

32

Toro 2412-49

Breakout Fitting

$

$

Not available

33

$

$

Currently unavailable

34

Toro 25-5660

Cover Wiring Harness Lower

$

$

Not available

35

Toro 2412-48

RING FITTING

$

$

Not available
