21738 - Toro Whirlwind Walk-Behind Mower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

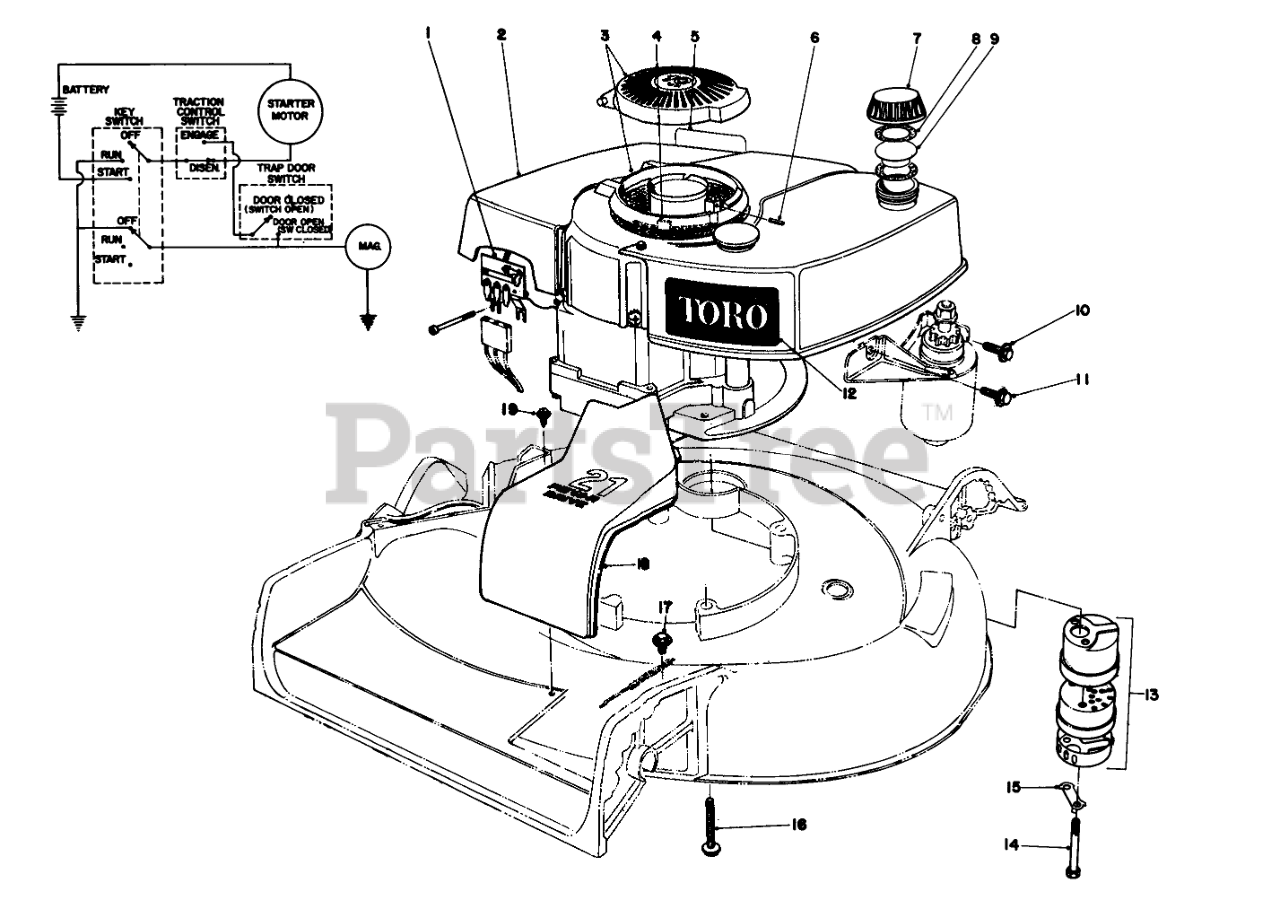

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 24-9770

SWITCH & TERM BLK CVR

$

$

Not available

2

Toro 221-684

Engine

$

$

Currently unavailable

3

Toro 38-3080

Cover Assembly
(Superseded to 38-4720)

$

$

Not available

4

Toro 25-1570

WIRE CLIP

$

$

Not available

5

Toro 37-1580

Decal-Maintenan

$

$

Not available

6

Toro 32121-90

SPRING PIN

$

$

Not available

7

Toro 27-7870

Gas Cap (Incl. Ref. #8 & 9)
(Superseded to 42-0682)

$

$

Not available

8

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

9

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

10

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

11

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

12

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 5-4769

Muffler Assembly (IncI. Ref. #14 & 15)

$62.99

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrestor Muffler Assembly (Optional)(Incl. Ref. #14 & 15)

Note: Not illustrated

$

$

Not available

14

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

15

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

16

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

17

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

18

Toro 28-4730

BELT DRIVE COVER

$65.99

$

Usually ships in 3-6 days

0

19

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

Toro 33-2930

Rope-Starter

Note: Not illustrated

$

$

Not available
