21738 - Toro Whirlwind Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

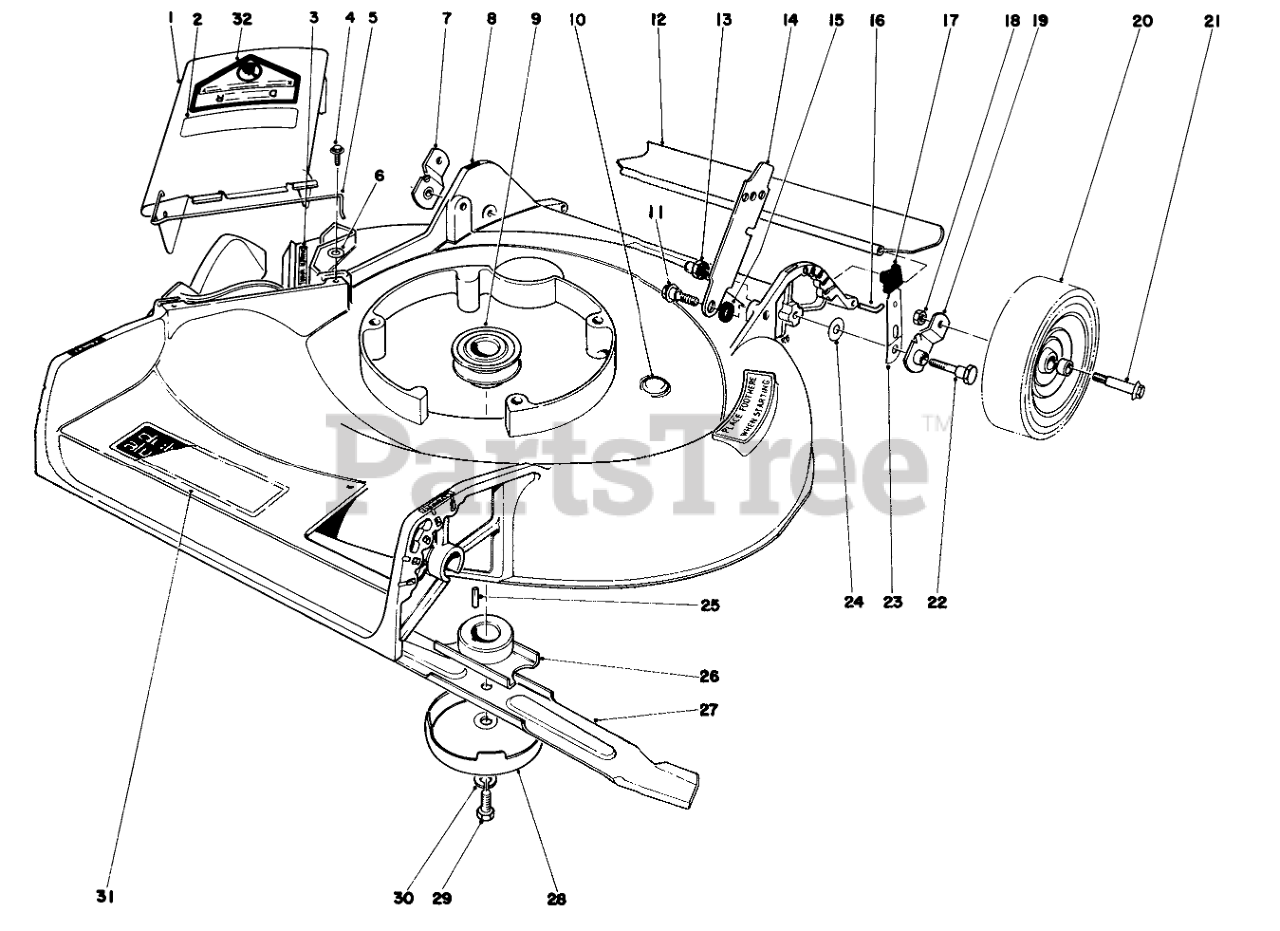

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 27-7810

Deflector Cover Assembly (Incl. Ref. #2, 5 & 32)
(Superseded to 13-4049)

$

$

Not available

2

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

3

Toro 22-7350

Decal

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

8

Toro 8-0649

Housing

$

$

Not available

9

Toro 21-5580

DRIVER PULLEY

$

$

Not available

10

$

$

Not available

11

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

12

Toro 224950

Rear Shield

$

$

Currently unavailable

13

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

14

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

16

Toro 33-3201

SHIELD ROD

$

$

Not available

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

20

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

21

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

22

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

23

Toro 25-8000

SPRING ARM ASM

$

$

Not available

24

Toro 54460

Washer

$

$

Currently unavailable

25

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

26

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

27

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

28

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

29

Toro 3-5246

SPECIAL SCREW

$

$

Not available

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 40-2210

Decal-Deck

$

$

Not available

32

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

Toro 8-9939

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
