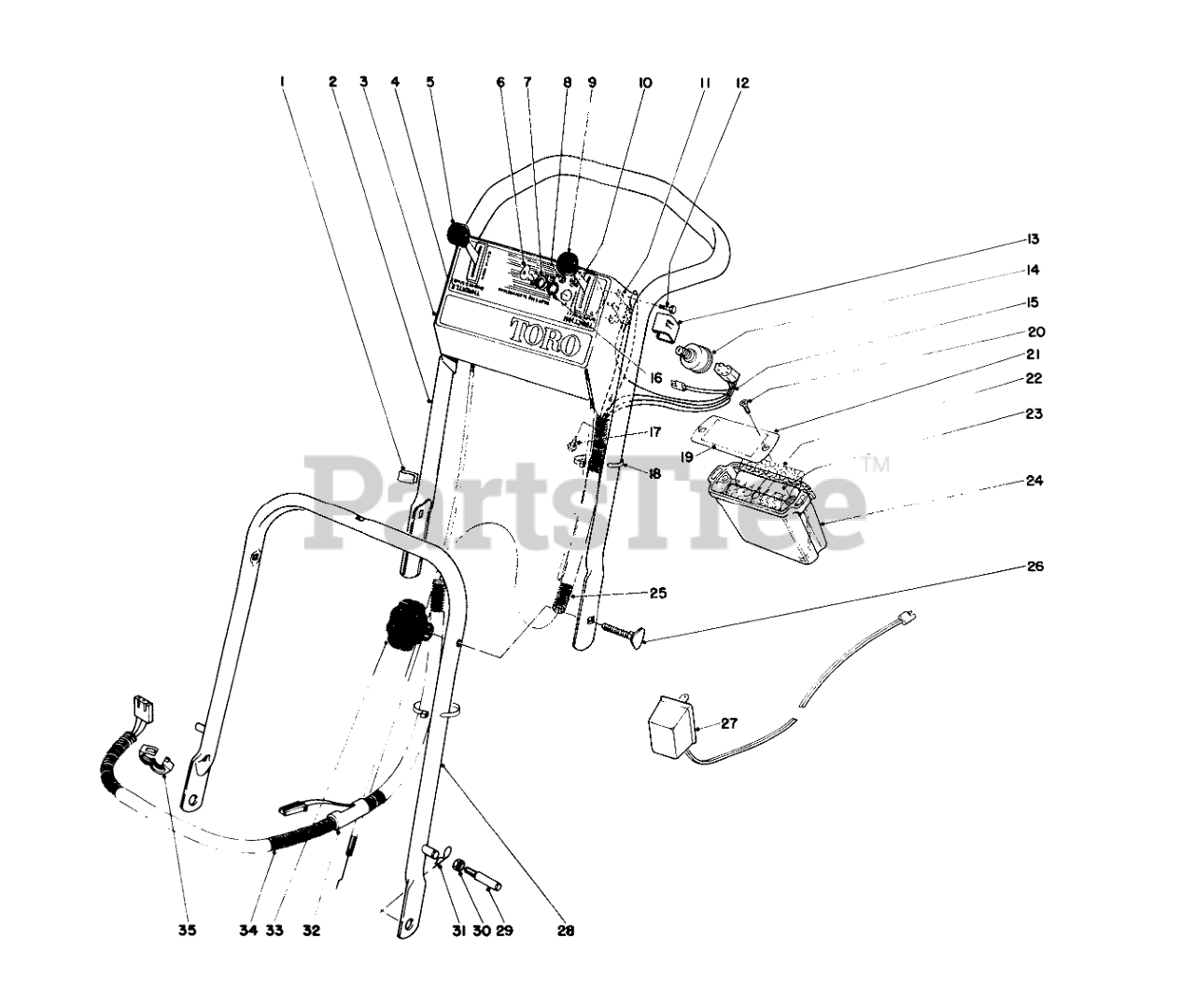

21727 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HANDLE ASSEMBLY MODEL NO. 21727 Parts Diagram

Guardian Walk-Behind Mower

HANDLE ASSEMBLY MODEL NO. 21727 Parts Diagram

  • Title
1

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$279.99

$

Usually ships in 3-6 days

0

3

Toro 21-5160

Control Plate

$

$

Not available

4

Toro 26-2220

Decal Control Plate

$

$

Not available

5

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

9

Toro 25-1230

Traction Control
(Superseded to 46-6040)

$

$

Not available

10

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 24-9760

CONTROL SWITCH

$99.99

$

Usually ships in 3-6 days

0

12

Toro 3290-124

SCREW-HH

$

$

Not available

13

Toro 25-1590

Cover Switch

$

$

Not available

14

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

15

Toro 25-0090

Wire Harness

$

$

Not available

16

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

17

Toro 3210476

Screw

$

$

Currently unavailable

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 25-4020

Decal Battery

$

$

Not available

20

$

$

Not available

21

Toro 6-8230

Cover

$

$

Not available

22

Toro 6-8320

Spacer

$

$

Not available

23

Toro 24-7750

Battery Pack Assembly (Incl. Ref. #19-22 & 24)

$

$

Not available

24

Toro 6-9750

Container Pack

$

$

Not available

25

Toro 25-5650

Cover Wiring Harnes Upper

$

$

Not available

26

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

27

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

28

Toro 26-0520

Lower Handle
(Superseded to 42-1480)

$

$

Not available

29

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

30

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

32

Toro 2412-49

Breakout Fitting

$

$

Not available

33

$17.99

$

In Stock, only 3 left!

0

34

Toro 25-5660

Cover Wiring Harness Lower

$

$

Not available

35

Toro 2412-48

RING FITTING

$

$

Not available

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable

Toro 6-7449

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

Note: Not illustrated

$

$

Not available
