21711 - Toro Guardian Walk-Behind Mower (SN: 006000001 - 006999999) (1976) ENGINE ASSEMBLY MODEL NO. 21711 Parts Diagram

Guardian Walk-Behind Mower

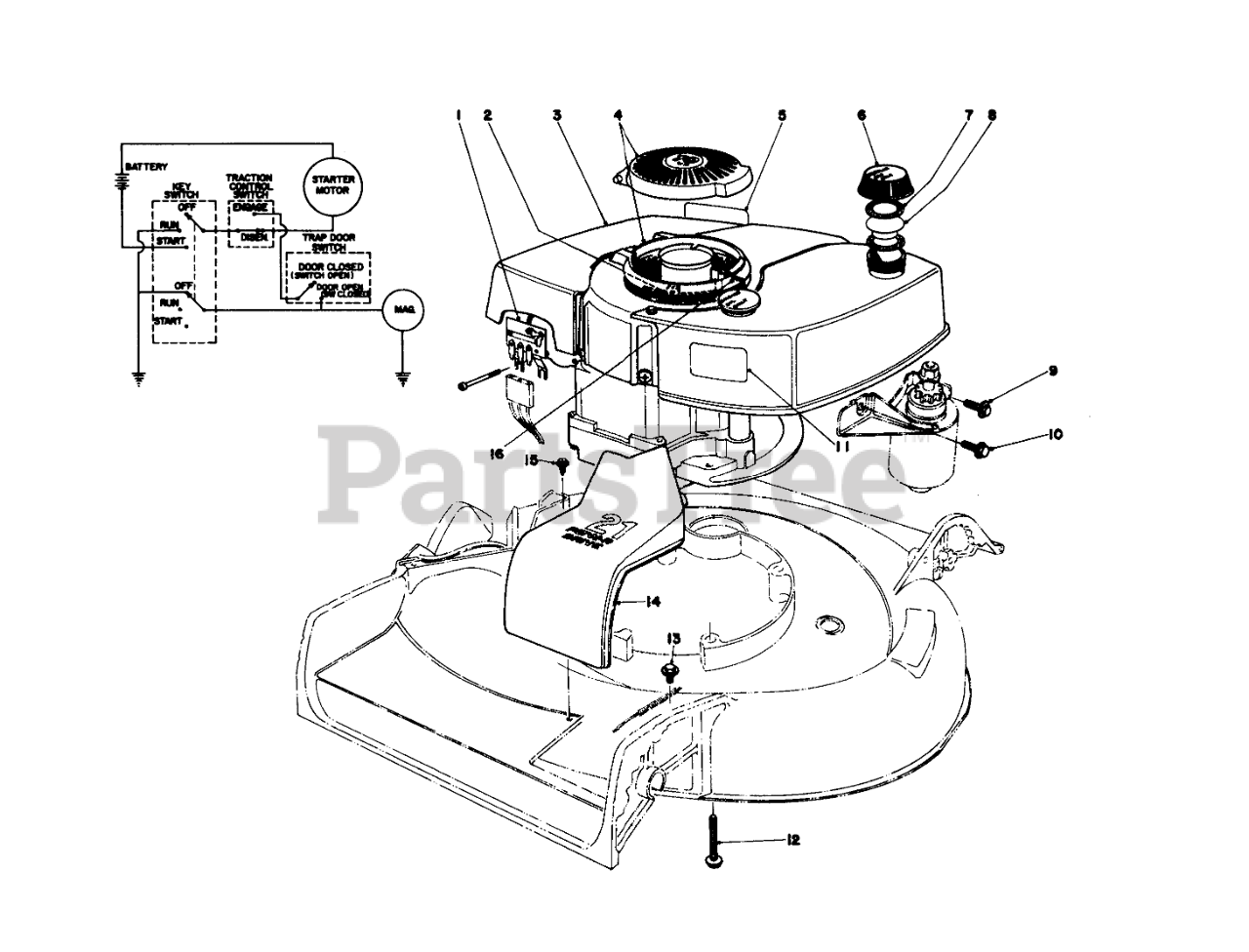

ENGINE ASSEMBLY MODEL NO. 21711 Parts Diagram

  • Title

1

Toro 24-9770

SWITCH & TERM BLK CVR

$

$

Not available

2

Toro 25-1570

WIRE CLIP

$

$

Not available

3

Toro 221-517

Engine

$

$

Currently unavailable

4

Toro 25-2120

Cover
(Superseded to 38-4720)

$

$

Not available

5

Toro 20-2710

Decal Maintenance

$

$

Not available

6

Toro 20-2860

Gas Cap (Incl. Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

11

Toro 224900

Decal Engine

$

$

Currently unavailable

12

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

13

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

14

Toro 20-2540

Cover Belt Drive
(Superseded to 28-4730)

$65.99

$

Usually ships in 3-6 days

0

15

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

16

Toro 32121-90

SPRING PIN

$

$

Not available
