21711 - Toro Guardian Walk-Behind Mower (SN: 006000001 - 006999999) (1976) CARBURETOR NO. 631784A (MOWER MODEL NO. 21610 & 21711)(ENGINE NOS. TNT 100-10047 AND TNT 100-10046) Parts Diagram

Guardian Walk-Behind Mower

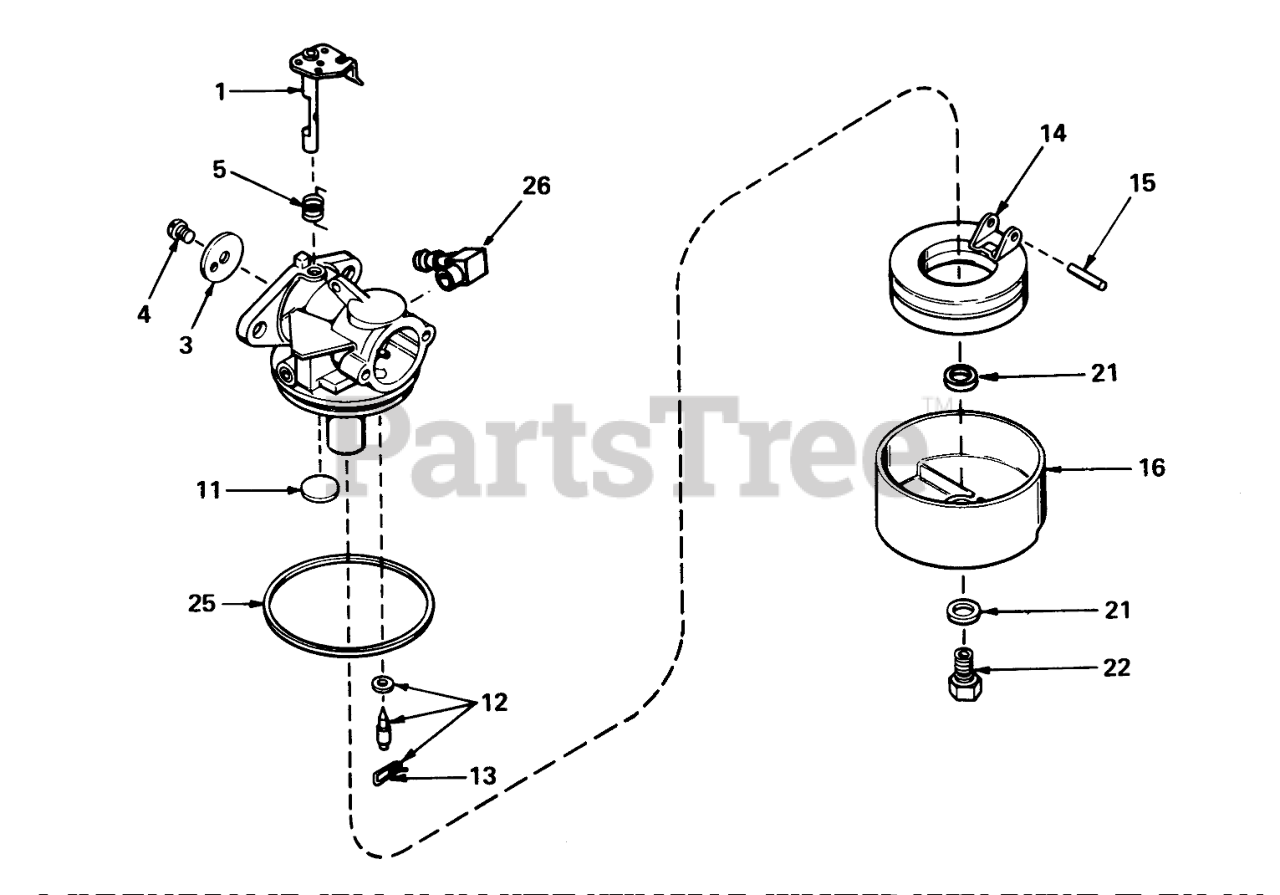

CARBURETOR NO. 631784A (MOWER MODEL NO. 21610 & 21711)(ENGINE NOS. TNT 100-10047 AND TNT 100-10046) Parts Diagram

  • Title

1

Tecumseh 631615

Throttle Shaft and Lever ASM

$9.49

$

Usually ships in 3-12 days

0

3

Tecumseh 631616

Throttle-Shutter

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630731

Spring, Return
(Superseded to 632016)

$1.99

$

In Stock, only 4 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assembly (Incl. No. 13)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 10

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 3 left!

0

14

Tecumseh 631023

Float,Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 6

0

15

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 9

0

16

Tecumseh 631700

Bowl Float

$7.49

$

In Stock, Qty 5

0

21

Tecumseh 631334

Gasket-Bowl
(Superseded to 631334A)

$3.49

$

In Stock, Qty 13

0

22

Tecumseh 631935

Nut-Float Bowl
(Superseded to 631935A)

$6.49

$

Usually ships in 3-12 days

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 14

0

26

Tecumseh 631807

Fitting-Fuel

$8.49

$

In Stock, only 1 left!

0
