21711 - Toro Guardian Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HOUSING ASSEMBLY MODEL NO. 21610 AND 21711 Parts Diagram

Guardian Walk-Behind Mower

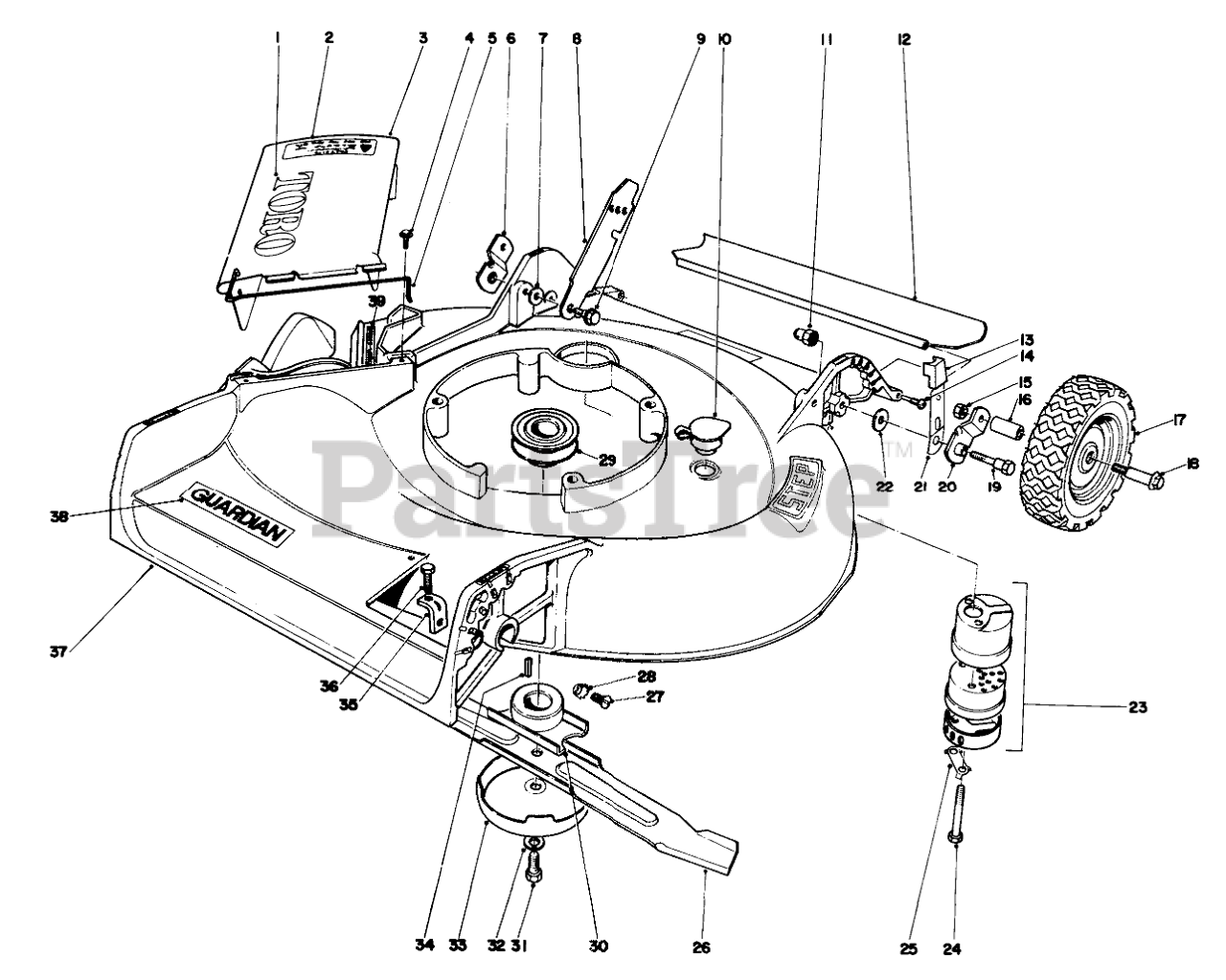

HOUSING ASSEMBLY MODEL NO. 21610 AND 21711 Parts Diagram

  • Title
1

Toro 204690

Decal

$

$

Currently unavailable

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 20-2800

Deflector Assembly (Incl. Ref. #1, 2 & 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 64500

Plug Washout

$

$

Currently unavailable

11

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 224950

Rear Shield

$

$

Currently unavailable

13

Toro 84220

Knob Arm

$

$

Currently unavailable

14

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

15

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

16

Toro 174560

Bushing

$

$

Currently unavailable

17

Toro 12-2620

Wheel & Tire (Incl. Ref. #16)
(Superseded to 99-5256)

$

$

Not available

18

$

$

Not available

19

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

20

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

21

Toro 23-0400

SPRING ARM ASM

$

$

Not available

22

Toro 54460

Washer

$

$

Currently unavailable

23

Toro 54769

Muffler Assy. (Incl. Ref. #24 & 25)

$

$

Currently unavailable

24

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

25

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

26

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

27

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

28

Toro 3255-12

Lockwasher

$

$

Not available

29

Toro 21-5580

DRIVER PULLEY

$

$

Not available

30

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

31

Toro 3-5246

SPECIAL SCREW

$

$

Not available

32

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

33

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

34

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0

35

Toro 3-7278

ADJ BRACKET

$

$

Not available

36

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 6-0679

Housing

$

$

Not available

38

Toro 22-4770

Decal

$

$

Currently unavailable

39

Toro 22-7350

Decal

$

$

Not available
