21711 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) GEAR CASE ASSEMBLY MODEL NO. 21610 & 21711 Parts Diagram

Guardian Walk-Behind Mower

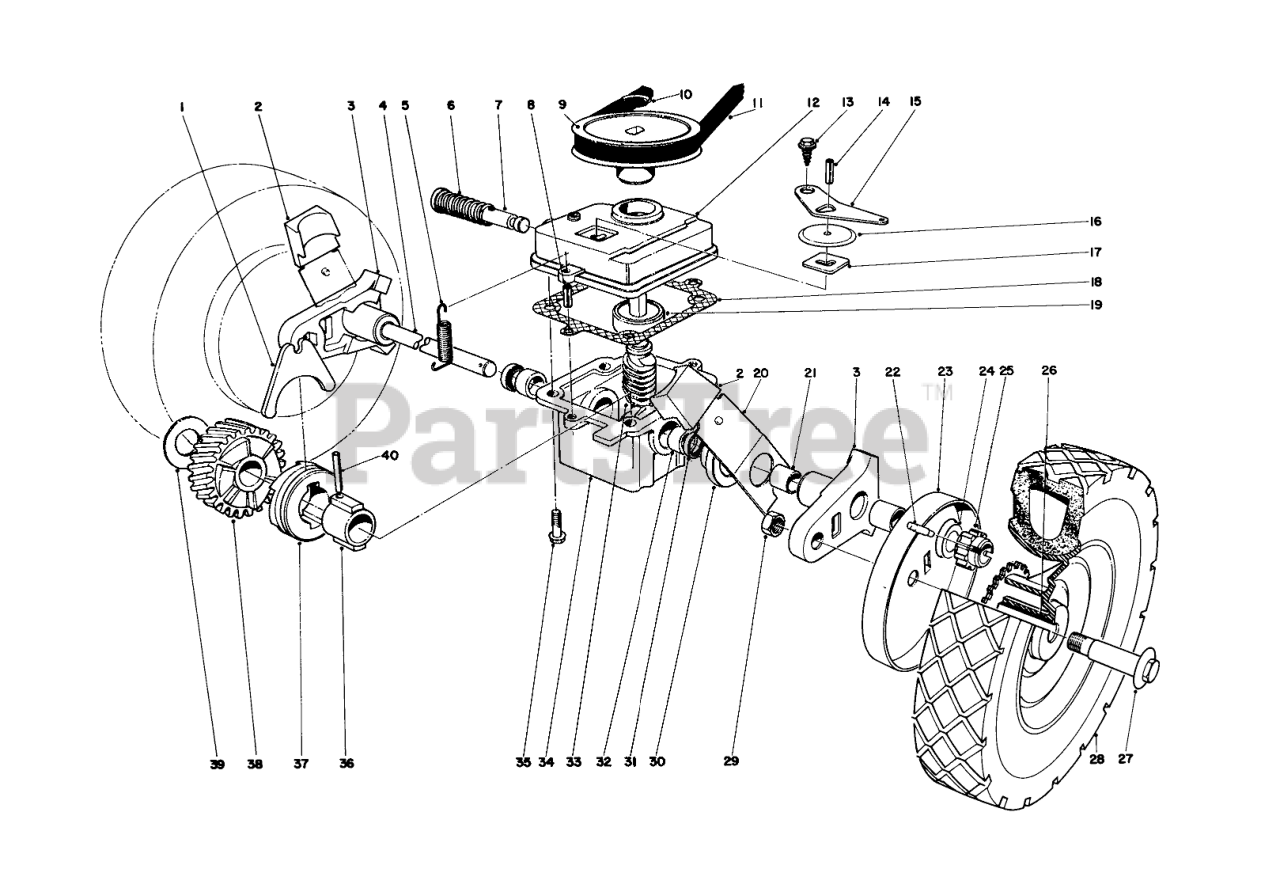

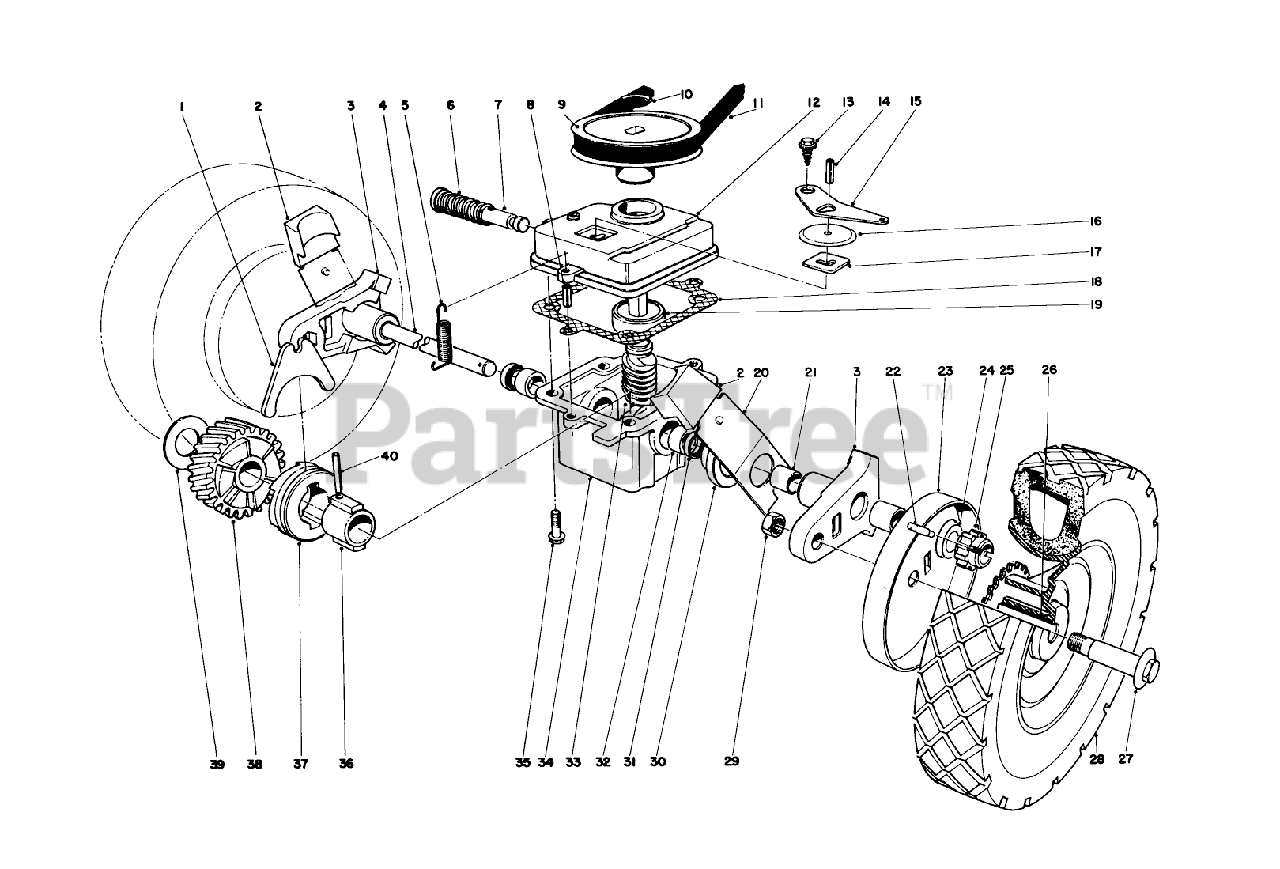

GEAR CASE ASSEMBLY MODEL NO. 21610 & 21711 Parts Diagram

  • Title
1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 20+

0

3

Toro 18-9710

Pivot Arm (Incl. Ref. #21)

$

$

Not available

4

Toro 18-9730

Drive Shaft
(Superseded to 37-9440)

$

$

Not available

5

Toro 17-4490

TENSION SPRING

$21.99

$

In Stock, only 1 left!

0

6

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

7

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

8

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

9

Toro 20-2780

PULLEY

$

$

Not available

10

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

11

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

12

Toro 5-3283

GEAR CASE COVER

$

$

Not available

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-23

PIN-ROLL

$

$

Not available

15

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

16

Toro 3-2615

TRANS DUST COVER

$

$

Not available

17

Toro 3-0681

LATCH PLATE

$

$

Not available

18

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

19

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

20

Toro 10-4380

LH SPRING ARM ASM

$

$

Not available

Toro 8-4250

Spring Arm

Note: Not illustrated

$

$

Not available

21

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

22

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

23

Toro 18-9820

WHEEL COVER

$

$

Not available

24

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

25

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

26

Toro 11-9530

WHEEL BUSHING

$

$

Not available

27

$

$

Not available

28

Toro 12-2610

Tire 8" w/Wheel (Incl. Ref. #26)
(Superseded to 11-1279)

$

$

Not available

29

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 5-0745

End Cap
(Superseded to 92-5714)

$

$

Not available

31

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

32

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

33

Toro 18-9700

WORM SHAFT

$407.99

$

Usually ships in 3-6 days

0

34

Toro 5-4459

Gear Case (Incl. Ref. #31 & 32)

$

$

Not available

35

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

36

Toro 3-0721

SLEEVE

$

$

Not available

37

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

38

$

$

Not available

39

Toro 3-0724

THRUST WASHER

$

$

Not available

40

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

Toro 20-2510

Gear Case Complete
(Superseded to 11-5599)

Note: Not illustrated

$

$

Not available
