21711 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) ENGINE ASSEMBLY MODEL NO. 21711 Parts Diagram

Guardian Walk-Behind Mower

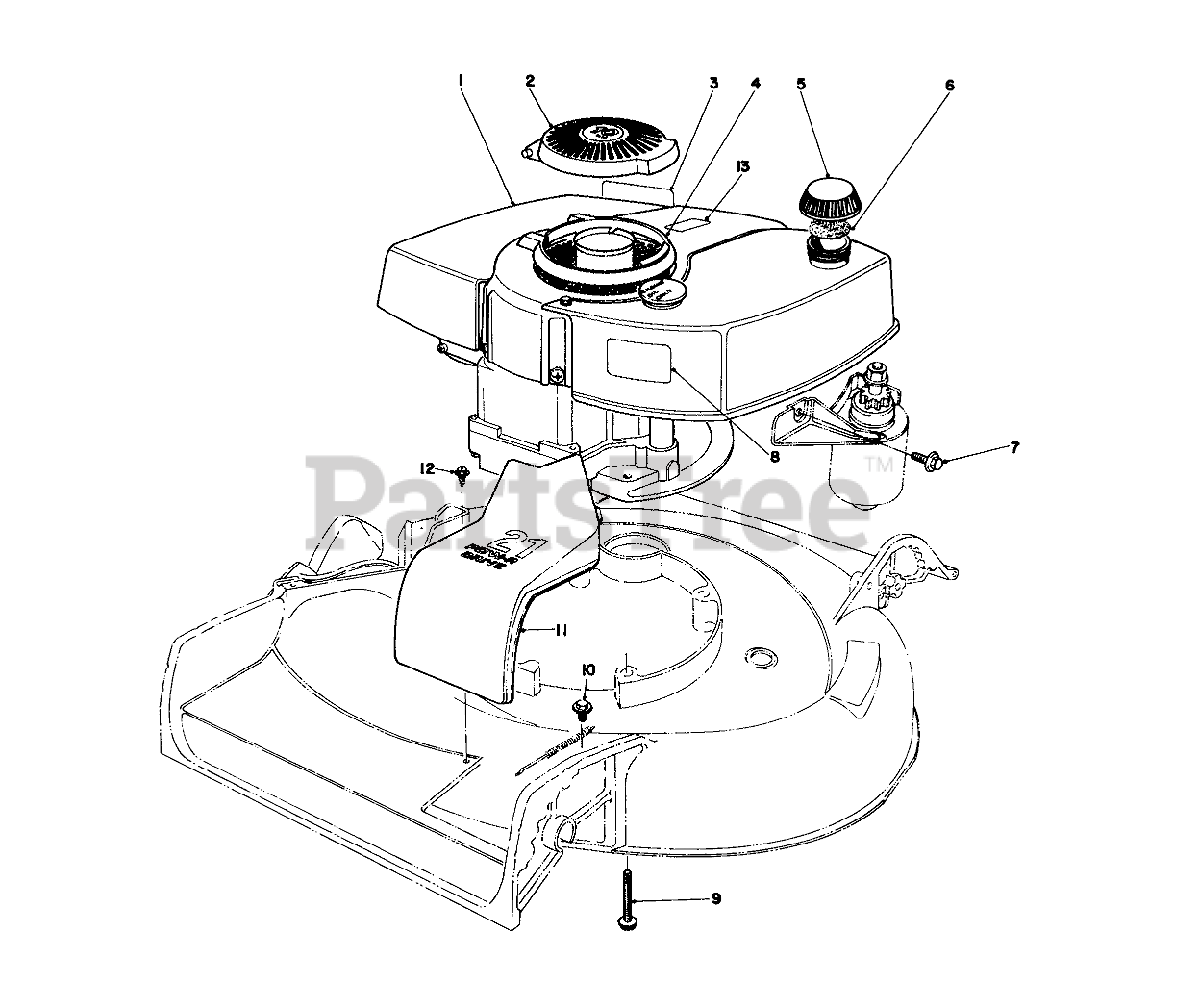

ENGINE ASSEMBLY MODEL NO. 21711 Parts Diagram

  • Title
1

Toro 221-460

Engine

$

$

Currently unavailable

2

Toro 21-4860

Cover-Hinged
(Superseded to 38-4720)

$

$

Not available

3

Toro 20-2710

Decal Maintenance

$

$

Not available

4

Toro 21-4850

Base Hinged

$

$

Not available

5

Toro 20-2860

Gas Cap Assembly (Incl. Ref. #6)
(Superseded to 42-0682)

$

$

Not available

6

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

7

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

8

Toro 22-4900

Decal

$

$

Currently unavailable

9

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

10

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

11

Toro 20-2540

Cover Belt Drive
(Superseded to 28-4730)

$65.99

$

Usually ships in 3-6 days

0

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 20-4680

Decal-Caution

$

$

Currently unavailable
