217 D (190-217D-100) - Cub Cadet 32 Cubic Feet Collection System Cart Body Parts Diagram

32 Cubic Feet Collection System

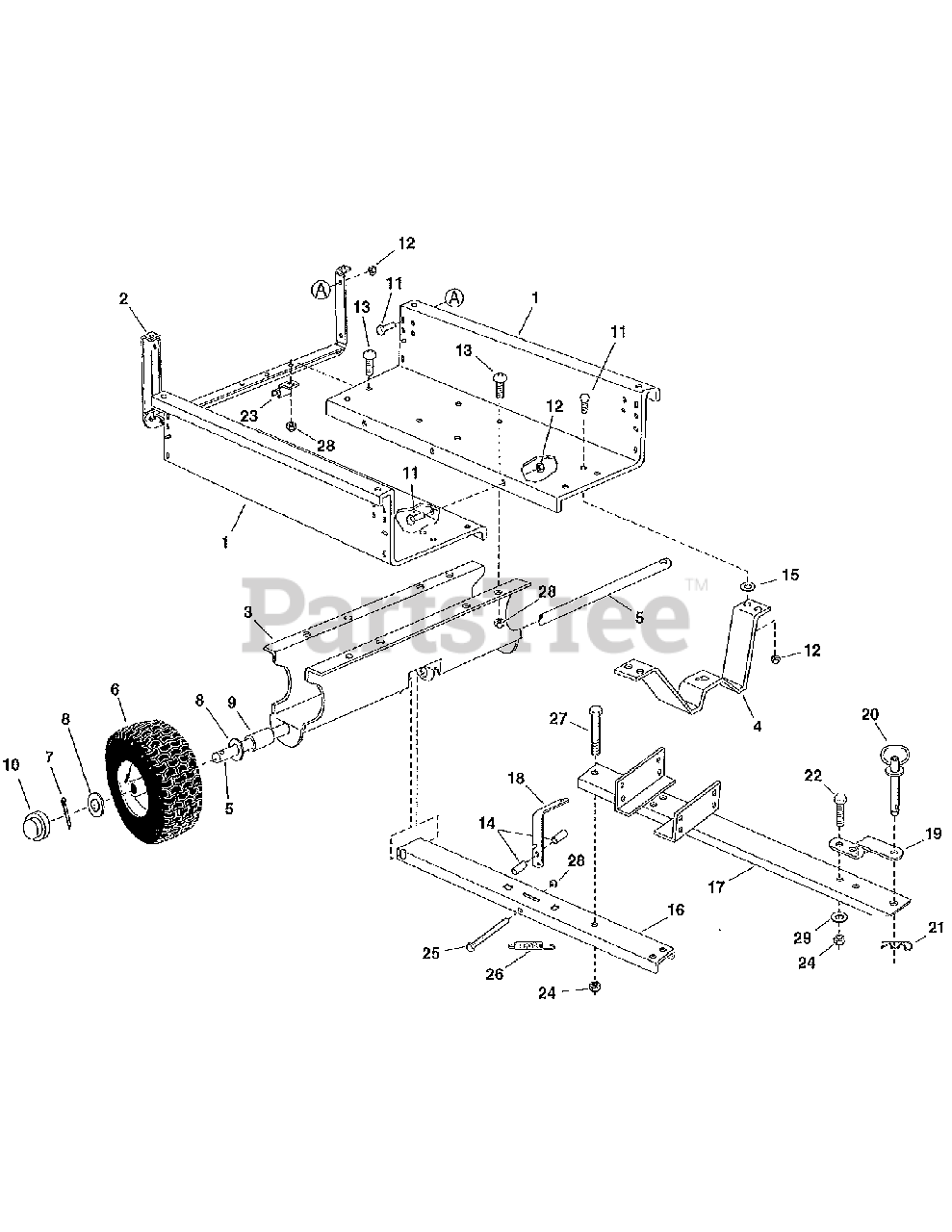

Cart Body Parts Diagram

  • Title
1

Cub Cadet AF-23985

Cart Body

Variations

Cub Cadet AF-23985-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23985-0650

CART BODY - RED METALLIC (0650)

$

$

Not available

$

$

2

Cub Cadet AF-62458-0637

Tailgate Reinforcement Bracket

$

$

Not available

3

Cub Cadet AF-23507-0637

Wheel Support

$

$

Not available

4

Cub Cadet AF-24497-0637

Latch Stand Bracket

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-24897

Axle, Wheel 1" Dia.

$

$

Not available

6

Cub Cadet AF-42159

Wheel w!Tire, 15 x 6.00

$101.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-3001

Cotter Pin, 1/8" Dia. x 1-1/2"
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-43601

Washer, Flat 1"

$8.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-44678

Spacer Tube, 1-1/4" x 2" Lg.

$

$

Not available

10

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet AF-43866

Hex Bolt, 1/4-20 x 5/8"

$

$

Not available

12

Cub Cadet 712-0324

Hex Nut, 1/4-20 Nylock

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet AF-43814

Truss Hd. Bolt, 5/16-18 x 3/4"

$

$

Not available

14

$

$

Not available

15

Cub Cadet AF-43088

Washer, Flat 1/4"

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-63917

Tongue Weldment Ass'y. (Rear)

$

$

Not available

17

Cub Cadet AF-63155

Tongue Weldment Ass'y. (Front)

$

$

Not available

18

Cub Cadet AF-24614

Latch Lock Lever

$

$

Not available

19

Cub Cadet AF-23475

Hitch Bracket

$

$

Not available

20

Cub Cadet AF-43884

Hitch Pin

$

$

Not available

21

Cub Cadet AF-43343

Pin, Hair Cotter 1/8"

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-3005

Hex Bolt, 3/8-16 x 1-1/4"

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet AF-23838

Door Support

$

$

Not available

24

Cub Cadet 712-0130

Nut, Hex Nylock 3/8-16

$3.99

$

In Stock, Qty 11

0

25

Cub Cadet 710-3185

Hex Bolt, 5/16-18 x 3-3/4"

$

$

Not available

26

Cub Cadet AF-47408

Spring, Extension

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0521

Hex Bolt, 3/8-16 x 3"

$5.49

$

In Stock, Qty 11

0

28

Cub Cadet 912-0429

Hex Nut, 5/16-18 Nylock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 936-0159

Washer, 3/8"
(Superseded to 736-0159)

$

$

Not available
