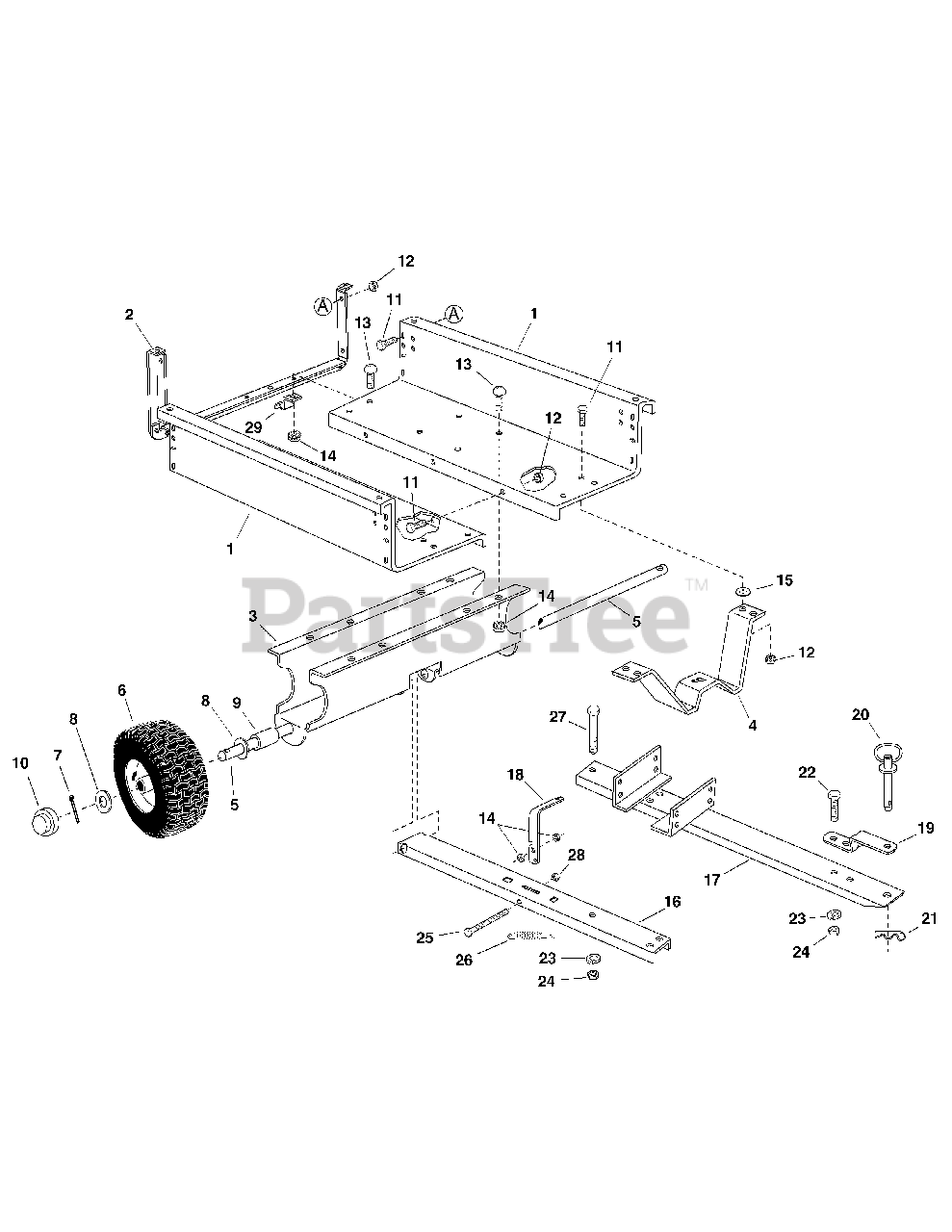

217 B (190-217B-100) - Cub Cadet 32 Cubic Feet Collection System att Cart Body Parts Diagram

32 Cubic Feet Collection System

Cart Body Parts Diagram

  • Title

1

Cub Cadet AF-23985

Cart Body

Variations

Cub Cadet AF-23985-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23985-0650

CART BODY - RED METALLIC (0650)

$

$

Not available

$

$

2

Cub Cadet AF-62458

Tailgate Reinforcement Bracket

Variations

Cub Cadet AF-62458-0637

ANGLE ASSEMBLY-REAR POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet AF-23507

Wheel Support
(Superseded to AF-23507-0637)

Variations

Cub Cadet AF-23507-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-24497

Latch Stand Bracket
(Superseded to AF-24497-0637)

Variations

Cub Cadet AF-24497-0637

BRACKET-LATCH STAN - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-24897

Axle, Wheel 1" Dia.

$

$

Not available

6

Cub Cadet AF-46272

Wheel w/Tire, 15 x 6.00
(Superseded to AF-42159)

$101.99

$

Usually ships in 3-6 days

0

7

Cub Cadet AF-43093

Cotter Pin, 1/8" Dia. x 1-1/2"

$0.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-43601

Washer, Flat 1"

$8.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-44678

Spacer Tube, 1-1/4" x 2" Lg.

$

$

Not available

10

Cub Cadet AF-43014

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet AF-43866

Hex Bolt, 1/4-20 x 5/8"

$

$

Not available

12

Cub Cadet AF-46978

Hex Nut, 1/4-20 (SEMS)
(Superseded to 712-0271)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet AF-43814

Truss Hd. Bolt, 5/16-18 x 3/4"

$

$

Not available

14

Cub Cadet AF-46980

Hex Nut, 5/16-18 (SEMS)
(Superseded to 712-0265)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-43088

Washer, Flat 1/4"

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-63917

Tongue Weldment Ass'y. (Rear)

$

$

Not available

17

Cub Cadet AF-63155

Tongue Weldment Ass'y. (Front)

$

$

Not available

18

Cub Cadet AF-24614

Latch Lock Lever

$

$

Not available

19

Cub Cadet AF-23475

Hitch Bracket

$

$

Not available

20

Cub Cadet AF-43884

Hitch Pin

$

$

Not available

21

Cub Cadet AF-43343

Pin, Hair Cotter 1/8"

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet AF-43087

Hex Bolt, 3/8-16 x 1-1/4"

$

$

Currently unavailable

23

Cub Cadet AF-43003

Lockwasher, 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet AF-43082

Hex Lock Nut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

25

Cub Cadet AF-47407

Hex Bolt, 5/16-18 x 3-3/4"

$1.49

$

Usually ships in 3-6 days

0

26

Cub Cadet AF-47408

Spring, Extension

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet AF-43574

Hex Bolt, 3/8-16 x 3"

$

$

Currently unavailable

28

Cub Cadet AF-43064

Hex Lock Nut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

29

Cub Cadet AF-23838

Door Support

$

$

Not available
