32 Cubic Feet Collection System

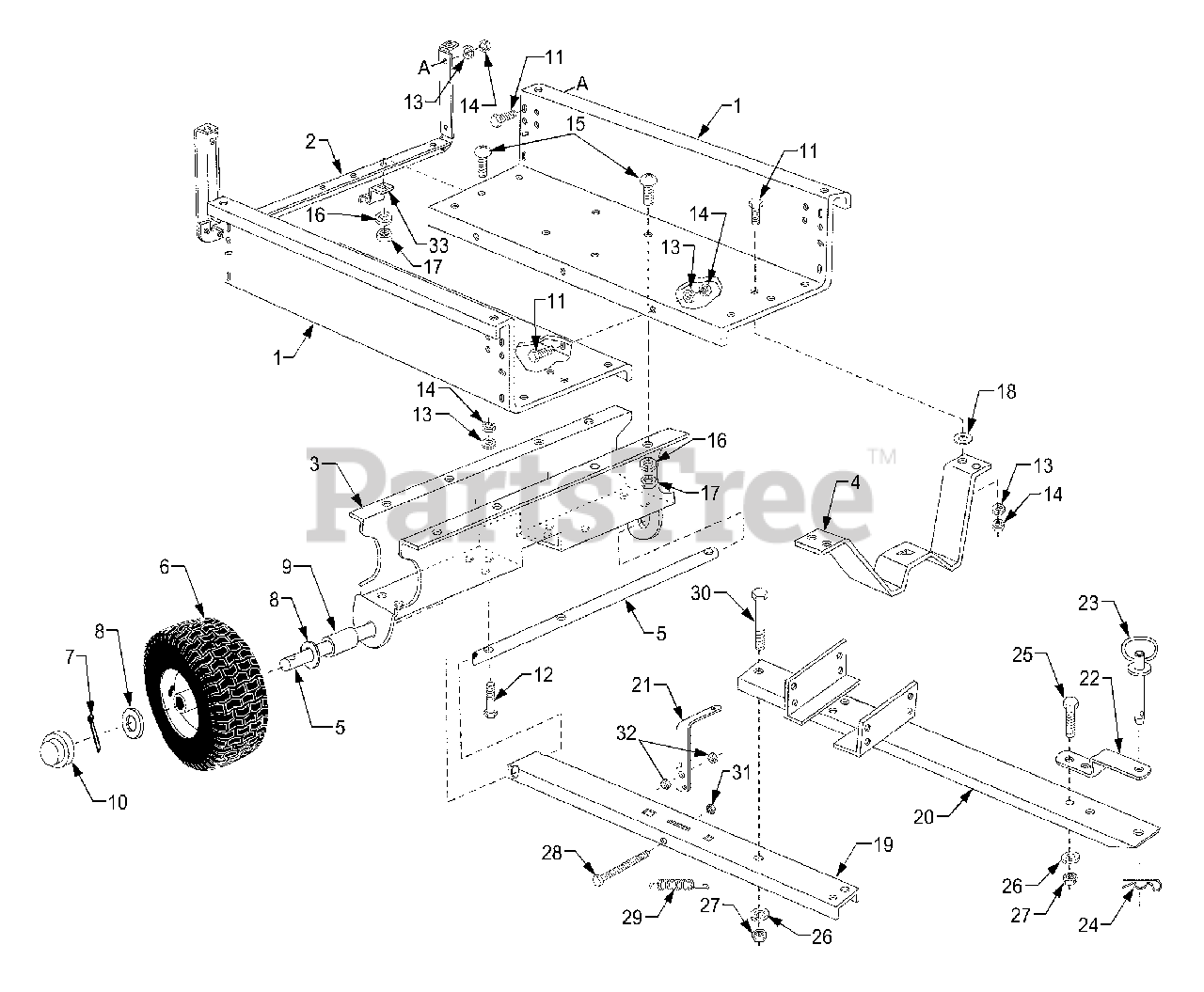

Cart Body Parts Diagram

  • Title

1

Cub Cadet AF-23985

Cart Body

Variations

Cub Cadet AF-23985-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23985-0650

CART BODY - RED METALLIC (0650)

$

$

Not available

$

$

2

Cub Cadet AF-62458

Tailgate Reinforcement Bracket

Variations

Cub Cadet AF-62458-0637

ANGLE ASSEMBLY-REAR POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet AF-23507

Wheel Support
(Superseded to AF-23507-0637)

Variations

Cub Cadet AF-23507-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-24497

Latch Stand Bracket
(Superseded to AF-24497-0637)

Variations

Cub Cadet AF-24497-0637

BRACKET-LATCH STAN - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-23488

Axle,Wheel 1"Dia.

Variations

Cub Cadet AF-23488-0637

USE AF-23488 AXLE-WHEEL 1.0 D - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet AF-46272

Wheel w/Tire,15 x 6.00
(Superseded to AF-42159)

$101.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-3001

Cotter Pin,1/8"Dia.x 1-1/2"
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-43601

Washer,Flat 1"

$8.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-44678

Spacer Tube,1-1/4"x 2"Lg

$

$

Not available

10

Cub Cadet AF-43014

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0258

Hex Bolt,1/4-20 x 5/8"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0136

Hex Bolt,1/4-20 x 1-3/4"

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0329

Lockwasher,1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 712-0287

Hex Nut,1/4-20 Thread
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-43814

Truss Hd.Bolt,5/16-18 x 3/4"

$

$

Not available

16

Cub Cadet 736-0119

Lockwasher,5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0267

Hex Nut,5/16-18 Thread
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0173

Washer,Flat 1/4"

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet AF-63917

Tongue Weldment Ass'y.(Rear)

$

$

Not available

20

Cub Cadet AF-63155

Tongue Weldment Ass'y.(Front)

$

$

Not available

21

Cub Cadet AF-24614

Latch Lock Lever

$

$

Not available

22

Cub Cadet AF-23475

Hitch Bracket

$

$

Not available

23

Cub Cadet AF-43884

Hitch Pin

$

$

Not available

24

Cub Cadet AF-43343

Pin,Hair Cotter 1/8"

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3005

Hex Bolt,3/8-16 x 1-1/4"

$3.99

$

In Stock, Qty 12

0

26

Cub Cadet 736-0169

Lockwasher,3/8"

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0375

Hex Lock Nut,3/8-16 Thread

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 710-3185

Hex Bolt,5/16-18 x 3-3/4"

$

$

Not available

29

Cub Cadet AF-47408

Spring,Extension

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0521

Hex Bolt,3/8-16 x 3"

$5.49

$

In Stock, Qty 10

0

31

Cub Cadet 712-0158

Hex Lock Nut,5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

32

Cub Cadet AF-46980

Hex Nut,5/16-18 (SIMS)
(Superseded to 712-0265)

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-23838

Door Support

$

$

Not available
