217-406-062 - MTD Tiller (1987) (Lowes) Chain Case (tines) Parts Diagram

Tiller

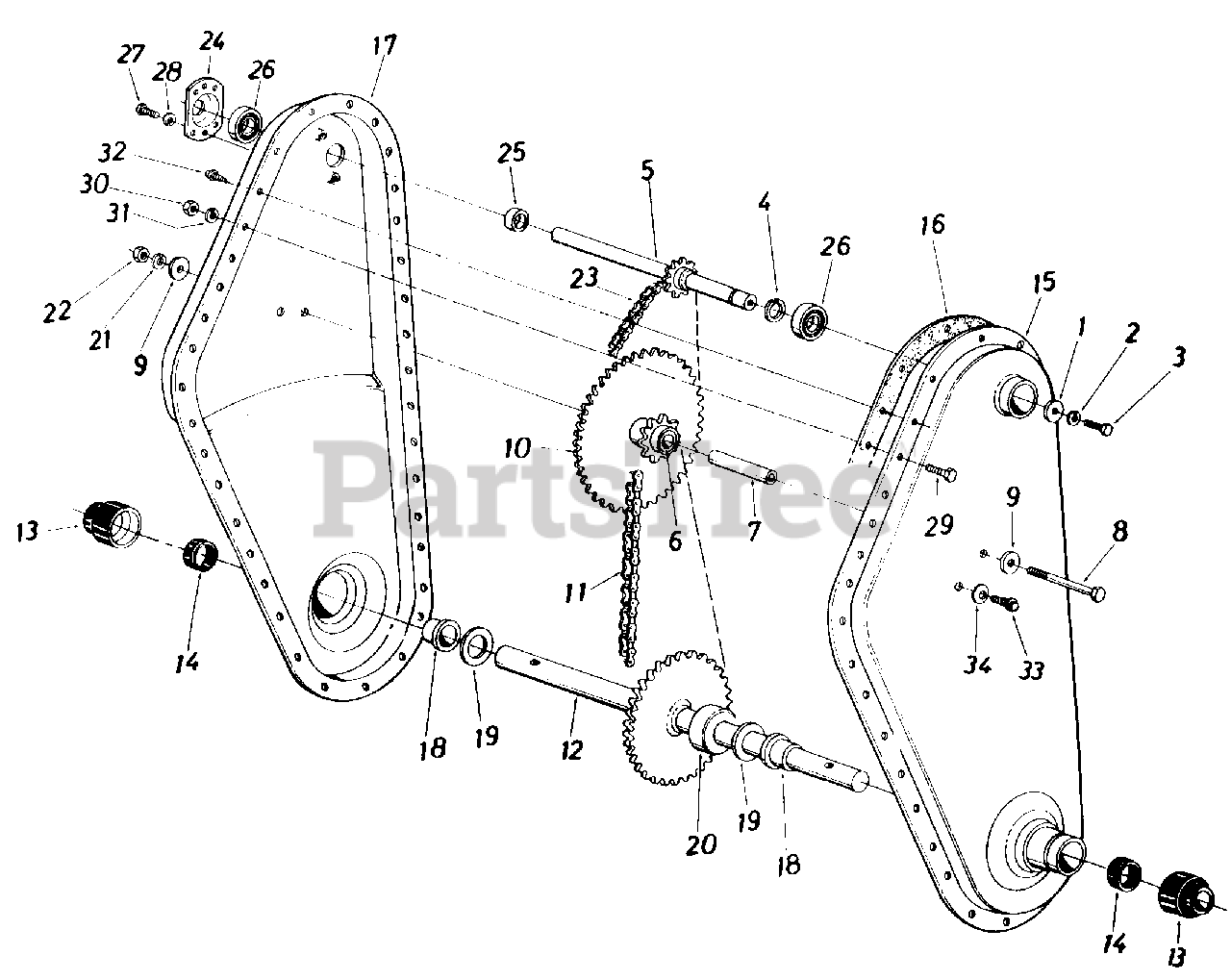

Chain Case (tines) Parts Diagram

  • Title

1

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D. x . 1 20

$4.99

$

In Stock, only 4 left!

0

2

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 710-0513

Hex Bolt 1/4-28 x .62" Lg. w/ Patch
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

4

MTD 716-0131

External Snap Ring-5/8" Dia.
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

5

MTD 784-0139

Input Shaft Ass'y.

$

$

Not available

6

MTD 741-0304

Bearing 5/8" I.D. x 3/4" O.D. x 1.860" Lg.

$

$

Not available

7

MTD 750-0275

Sprocket Hub Tubing 3/8" I.D. x 5/8" O.D. x 1.90

$

$

Not available

8

MTD 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.

$

$

Not available

9

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.25 O.D. x .10

$4.49

$

Usually ships in 3-6 days

0

10

MTD 713-0331

Sprocket Ass'y.

$

$

Not available

11

MTD 713-0328

#50 Chain 5/8" Pitch x 46 Links Endless
(Superseded to 913-0328)

$102.99

$

Usually ships in 3-6 days

0

12

MTD 14986

Tine Shaft Ass'y.

$

$

Not available

13

MTD 731-0487

Dust Cup
(Superseded to 931-0487)

$11.99

$

In Stock, only 3 left!

0

14

MTD 721-0175

Seal Ring Single Lip, Springless

$9.99

$

In Stock, Qty 6

0

15

MTD 14984

Ass'y. Tiller Housing-R.H.

Variations

MTD 14984-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

MTD 14984-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

MTD 721-0170

Gasket
(Superseded to 721P0170)

$15.99

$

In Stock, only 1 left!

0

17

MTD 14985

Ass'y. Tiller Housing-L.H.

Variations

MTD 14985-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

MTD 14985-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

18

MTD 731-0374

Flange Brg. 1.00" I.D.
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 5

0

19

MTD 736-0163

Fl-Thrust Wash. 1.0" I.D. x .03 Thk.

$4.49

$

In Stock, Qty 20+

0

20

MTD 750-0570

Step Spacer
(Superseded to 950-0570)

$10.99

$

Usually ships in 3-6 days

0

21

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0711

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

23

MTD 713-0327

#35 Chain 3/8" Pitch x 52 Links Endless
(Superseded to 913-0327)

$

$

Not available

24

MTD 05034

Bearing Housing 1.38" I.D.
(Superseded to 05034A)

$

$

Not available

25

MTD 750-0471

Spacer

$

$

Not available

26

MTD 741-0155

Ball Bearing .625" I.D. x 1.38" O.D. x .437
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

27

MTD 710-0599

Hex Wash. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 710-0599

Hex Wash. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

34

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

MTD 737-0133

Grease-Plastilube #O
(Superseded to 737-0300A)

Note: (12 oz.)

$34.99

$

In Stock, Qty 19

0
